DART CONTROLS

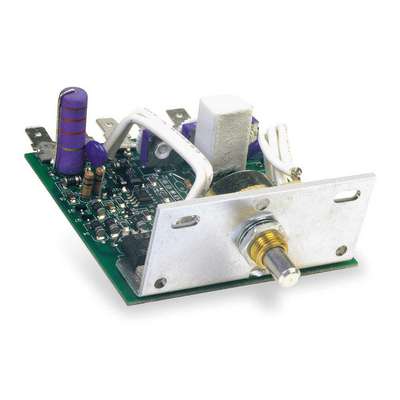

Dart Controls DC Speed Control, Chassis, 100/200V DC Shunt Wound Volts, 0 to 90/180V DC Voltage Output, 2 A Max. Amps
Hover over image to magnify
#935054-9 | Pkg Qty: 1
$101.48 pkg | $101.48 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
cULus Recognized
Output
0-90 VDC /0-180 VDC
Brand
DART CONTROLS
Overall Depth
1.3 in.
Depth
3.3 in.
Overall Height
3.3 in.
Enclosure
Chassis
Overall Width
2.8 in.
Enclosure Type
Open
Pack Quantity
1
Height
1.3 in.
Provides
Superior Wide Range Adjustable Speed Control
Input Voltage
115/230 VAC
Rotation
Single Direction
Item
DC Speed Control
Series
Series 15
Maximum Current
1899-12-31 02:00:00
Shipping Weight
.34 lb.
Mfr. Part Number
15DV1A
Voltage Output
0 to 90/180 VDC
Mount Type
Chassis
Width
2.8 in.
Operating Temperature
-10 to 45 C
General
AC Input Voltage
120/240V AC
IR Compensation
Adjustable
Accepts Tach Feedback
No
Includes
Speed Potentiometer Knob and Dial Plate
Current/Torque Limit
None
Linear Acceleration
Fixed 0.5 sec
DC Speed Control
SCR
Lower Voltage Motor Output Power
1/50 to 1/6 hp
Dynamic Braking
No
Maximum Linear Acceleration
0.5 sec
External Switches
None
Operates On
50/60 Hertz at +/-10 Percentage Rated Line Voltage
Follower Circuit
No
Operating Temp.
-10° to 45°C
For Use With
Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
SCR DC Speed Controls
SCR
Form Factor
L
Shunt Wound Voltage
100/200V DC
HP
1/50 to 1/3
Shunt Wound Volts
100/200V DC
HP @ Higher Volts
1/25 to 1/3
Speed Range
25:1
HP @ Lower Volts
1/50 to 1/6
Speed Regulation
+/-1% of Base Speed
Higher Voltage Motor Output Power
1/25 to 1/3 hp
Standards
cULus Recognized
Product Description
This DC speed control device provides superior wide-range adjustable speed control, and helps regulate motor speed with adjustable acceleration and deceleration.
Expertly Selected Product Pairings
Item Barcode
Dc Speed Control,90/180VDC,2A,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5JJ56 | |
 | UNSPSC CODES | 39122214 | |
 | VMRS (ATA) CODES | 053-006-009 | DC Speed Control,90/ |
