IGUS

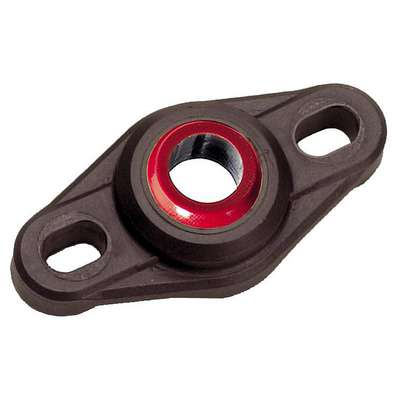

2 Bolt Flange Bearing: Spherical Plain, 5/8 in Bore, Polymer, 2.858 in Lg, 0.683 in Wd, Open
#935027-3Pkg Qty: 1
$19.99 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearing Housing Material Type
Polymer
Bearing Insert Material
Polymer
Bearing Insert Type
Ball
Bore Diameter
5/8 in.
Brand
IGUS
Item
2-Bolt Flange Bearing
Mfr. Part Number
EFOI-10 R
Package Quantity
1
Shaft Locking Type
None
Shipping Weight
.05 lb.
Bearing Housing Material Type
Polymer
Item
2-Bolt Flange Bearing
Bearing Insert Material
Polymer
Mfr. Part Number
EFOI-10 R
Bearing Insert Type
Ball
Package Quantity
1
Bore Diameter
5/8 in.
Shaft Locking Type
None
Brand
IGUS
Shipping Weight
.05 lb.
General
Application
Agricultural Machines, Automation, Food Industry, Mechanical Engineering, Plant Construction
Bearing Material Grade
iglide(R) R
Bore Type
Cylindrical
Closure
Open
Dimension A
2-429/500 in.
Dimension C
1-62/125 in.
Dimension D
2-87/1000 in.
Dimension E
0.212 in. x 0.315 in.
Features
Absolutely Corrosion-Resistant, Compensation of Misalignment Errors, Easy Installation, Maintenance-Free Dry Operation, Time Saving Through Fast Assembly, Very Lightweight
Flange Thickness
25/64 in
Housing Material Finish
Unfinished
Housing Material Grade
igumid G
Housing Type
Rhombus
Load Direction
Radial, Thrust
Maximum Ball Swivel
21 Degrees
Maximum PV
8,700 lb/sq in-fpm
Maximum Temperature
176 Degrees F
Minimum Temperature
-22 Degrees F
Mount Hole Center-to-Center Length
2 5/64 in
Mount Hole Size
0.212 in
Mounting Bolt Size
1/4 in
Number of Mount Holes
2
Overall Height
1 31/64 in
Overall Length
2 27/32 in
Overall Width
43/64 in
Resistance Properties
Corrosion Resistant
Self Lubricating Bearing
Yes
Standards
DIN ISO Certified 12240
Static Radial Load Capacity
630 lbf
System of Measurement
Inch
Temperature Range
-40 deg. F to 194 deg. F
Application
Agricultural Machines, Automation, Food Industry, Mechanical Engineering, Plant Construction
Maximum Temperature
176 Degrees F
Bearing Material Grade
iglide(R) R
Minimum Temperature
-22 Degrees F
Bore Type
Cylindrical
Mount Hole Center-to-Center Length
2 5/64 in
Closure
Open
Mount Hole Size
0.212 in
Dimension A
2-429/500 in.
Mounting Bolt Size
1/4 in
Dimension C
1-62/125 in.
Number of Mount Holes
2
Dimension D
2-87/1000 in.
Overall Height
1 31/64 in
Dimension E
0.212 in. x 0.315 in.
Overall Length
2 27/32 in
Features
Absolutely Corrosion-Resistant, Compensation of Misalignment Errors, Easy Installation, Maintenance-Free Dry Operation, Time Saving Through Fast Assembly, Very Lightweight
Overall Width
43/64 in
Flange Thickness
25/64 in
Resistance Properties
Corrosion Resistant
Housing Material Finish
Unfinished
Self Lubricating Bearing
Yes
Housing Material Grade
igumid G
Standards
DIN ISO Certified 12240
Housing Type
Rhombus
Static Radial Load Capacity
630 lbf
Load Direction
Radial, Thrust
System of Measurement
Inch
Maximum Ball Swivel
21 Degrees
Temperature Range
-40 deg. F to 194 deg. F
Maximum PV
8,700 lb/sq in-fpm
Product Description
2-Bolt Flange Bearing, Ball Bearing Insert Type, 5/8 in Bore Dia., Polymer Bearing Housing Material Type, None Shaft Locking Type, Polymer Bearing Insert Material, Temp. Range -40 Degrees to 194 Degrees F, Includes -
Item Barcode
Flange,2 Bolt,Bore Dia 0.6250
