SPEEDAIRE

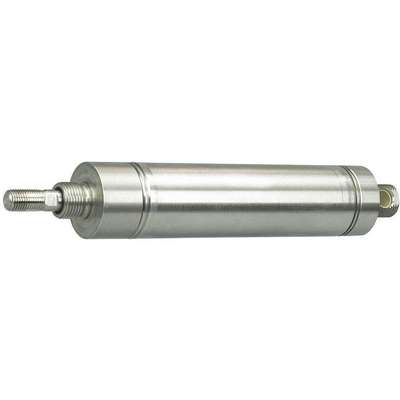

1 1/4" Air Cylinder Bore Dia. with 4" Stroke Stainless Steel , Nose and Pivot Mounted Air Cylind
Hover over image to magnify
#934867-7 | Pkg Qty: 1
$79.11 pkg | $79.11 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Cylinder Mount
Nose and Pivot
Mfr. Part Number
5ZEF2
Air Cylinder Type
Round Body
Mount
Nose and Pivot
Body Material
Stainless Steel
Package Quantity
1
Brand
SPEEDAIRE
Port Size
1/8 in. FNPT
Cylinder Action
Double Acting
Shipping Weight
1.04 lb.
Finish
Silver
Stroke
4 in.
Item
Air Cylinder
Tube Material
Stainless Steel
General
Action Type
Double Acting
Piston Rod
Stainless Steel
Air Cylinder Bore Dia.
1 1/4 in
Piston Rod Material
Stainless Steel
Air Cylinder Product Group
Air Cylinder
Pivot Hole Dia.
0.251 in
Bore Dia.
1 1/4 in
Rod Dia.
0.437 in
End Caps
Aluminum
Rod Thread Length
0.75 in
Features
Non-Switch Ready
Rod Thread Size
7/16-20 UNF
Magnetic Piston
No
Single Acting/Double Acting
Double Acting
Nose Mount Thread
3/4"-16
Product Description
Stainless Steel-Body Air Cylinders
- Max. operating pressure: 250 psi (17.23 bar) Operating temp. range: -10° to 165°F Designed to withstand a wide range of operating environments; to tolerate moisture and many types of lubricants and solvents. Use in applications where magnetic sensing piston is not required. Dimensionally interchangeable with Bimba, Parker, SMC, Norgren, and other major manufacturers' cylinders. Note: 6"-stroke models also available; see Imperial Supplies.com® for details.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Round Air Cylin,1-1/4InBore,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5ZEF2 | |
 | UNSPSC CODES | 27131701 | |
 | VMRS (ATA) CODES | 053-006-009 | Round Air Cylin,1-1/ |
