HUBBELL WIRING DEVICE-KELLEMS

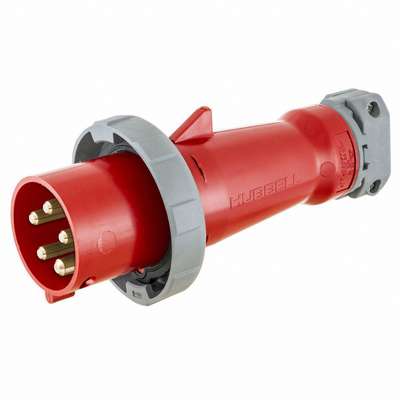

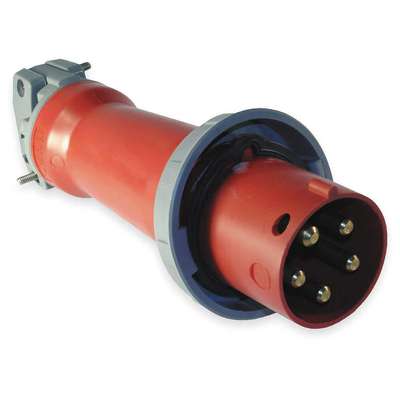

Hubbell Wiring Device-Kellems 100 Amp, 3Y-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Red

Hover over image to magnify
Iec Pin And Sleeve Plug,4P,5W,
PI_Asset_1982879
Iec Pin And Sleeve Plug,4P,5W,
PI_Asset_1982879

#934523-5 | Pkg Qty: 1

$968.51 pkg | $968.51 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
100 A
Mfr. Part Number
HBL5100P7W
Amps
100 A
Minimum Operating Temperature
-40 °C
Body Material
Zytel 801 Nylon
Minimum Wire Size
3 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Enclosure Rating
4X
Cap Type
No Cap or Cover
Number of Poles
4
Color Family
Red
Number of Wires
5
Connection Orientation
Straight
Overall Length
12.63 in.
Current Rating
100 A
Package Quantity
1
Face Diameter
3.44 in.
Phase
Three
Features
Gasketed Sealing Ring Provides Watertight Seal, Heavy Duty External Cord Grips for Maximum Cord Retention
Pin & Sleeve Standards
CSA Certifications, IEC 60309, UL Listed
For Maximum Cable Diameter
1.94 in.
Power Indicating Light
No
For Minimum Cable Diameter
1.065 in.
Reverse Service
No
Grounding
Grounded
Shipping Weight
4.16 lb.
Grounding Style
IEC
Shrouded
Yes
Horsepower
40 hp
Standards
CSA Certified LR280C, IEC 60309-1, UL E146033
Housing Color
Red
Switch Rated
No
Housing Material
Polybutylene Terephthalate
Type
Plug
IP Rating
IP67
UL 94 Flammability Rating
HB
Item
Watertight Pin and Sleeve Plug
Voltage
277/480VAC
Material of Construction
Nonmetallic, Zytel 101 Nylon, Watertight And Abuse Resistant
Voltage Rating
277/480V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
1/0 AWG
General
Amps - Plugs and Receptacles
100
Phase - Electrical
3Y
Features
Watertight and Abuse Resistant
Voltage - Plugs and Receptacles
277/480V AC
HP
30 hp

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
