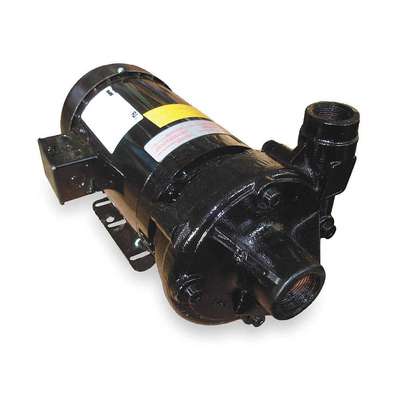

208 to 240/480 VAC Totally Enclosed Fan-Cooled Centrifugal Pump, 3-Phase, 1-1/2" NPT Inlet Size

Hover over image to magnify

#934255-4Pkg Qty: 1

$1,307.66 pkg

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Amps

6.0-5.8/2.9

Brand

DAYTON

Item

Centrifugal Pump

Mfr. Part Number

2ZXN7

Package Quantity

Shipping Weight

62.88 lb.

Amps

6.0-5.8/2.9

Mfr. Part Number

2ZXN7

Brand

DAYTON

Package Quantity

Item

Centrifugal Pump

Shipping Weight

62.88 lb.

General

Agency Compliance

UL Approval in. Motor

Best Efficiency Flow

54 gpm

Best Efficiency Head

70 ft

Compatible Discharge Pipe Size

1 1/4 in

Compatible Intake Pipe Size

1 1/2 in

Compatible with Media Type

Non-Flammable Liquids

Discharge Rotation

90 Degrees Increments

Discharge Type

NPT

Duty

Continuous

Feet of Head (Minimum)

10 ft

Flow Rate @ 10 ft of Head (Maximum)

94 gpm

Flow Rate @ 20 ft of Head (Maximum)

90 gpm

Flow Rate @ 30 ft of Head (Maximum)

85 gpm

Flow Rate @ 40 ft of Head (Maximum)

78 gpm

Flow Rate @ 50 ft of Head (Maximum)

71 gpm

Flow Rate @ 60 ft of Head (Maximum)

62 gpm

Flow Rate @ 70 ft of Head (Maximum)

54 gpm

Flow Rate @ 80 ft of Head (Maximum)

43 gpm

Flow Rate @ 90 ft of Head (Maximum)

32 gpm

Frame

56J

Impeller Design

Closed

Impeller Material

Brass

Includes

Manual

Intake Type

NPT

Intake and Discharge Size

1 1/2 in , 1 1/4 in

Length

16-1/2 in.

Manufacturer Warranty Length

1 yr

Maximum Feet of Head

110 ft

Maximum Media Temperature

200 Degrees F

Mfr. Warranty Length

1 yr.

Minimum Media Temperature

40 Degrees F

Motor Type

TEFC

Nominal Voltage

208-230/460V AC

Pump Housing Material

Cast Iron

Pumping Application

Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation

Seal Material

Viton

Shut Off Pressure (Maximum)

47 psi

Solid Diameter (Maximum)

0.31 in

Wetted Materials

Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton

Agency Compliance

UL Approval in. Motor

Best Efficiency Flow

54 gpm

Impeller Design

Closed

Best Efficiency Head

70 ft

Impeller Material

Brass

Compatible Discharge Pipe Size

1 1/4 in

Includes

Manual

Compatible Intake Pipe Size

1 1/2 in

Intake Type

NPT

Compatible with Media Type

Non-Flammable Liquids

Intake and Discharge Size

1 1/2 in , 1 1/4 in

Discharge Rotation

90 Degrees Increments

Length

16-1/2 in.

Discharge Type

NPT

Manufacturer Warranty Length

1 yr

Duty

Continuous

Maximum Feet of Head

110 ft

Feet of Head (Minimum)

10 ft

Maximum Media Temperature

200 Degrees F

Flow Rate @ 10 ft of Head (Maximum)

94 gpm

Mfr. Warranty Length

1 yr.

Flow Rate @ 20 ft of Head (Maximum)

90 gpm

Minimum Media Temperature

40 Degrees F

Flow Rate @ 30 ft of Head (Maximum)

85 gpm

Motor Type

TEFC

Flow Rate @ 40 ft of Head (Maximum)

78 gpm

Nominal Voltage

208-230/460V AC

Flow Rate @ 50 ft of Head (Maximum)

71 gpm

Pump Housing Material

Cast Iron

Flow Rate @ 60 ft of Head (Maximum)

62 gpm

Pumping Application

Flow Rate @ 70 ft of Head (Maximum)

54 gpm

Seal Material

Viton

Flow Rate @ 80 ft of Head (Maximum)

43 gpm

Shut Off Pressure (Maximum)

47 psi

Flow Rate @ 90 ft of Head (Maximum)

32 gpm

Solid Diameter (Maximum)

0.31 in

Frame

56J

Wetted Materials

Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton

Product Description

Dayton close-coupled units pump continuously, producing high flow rates under low-head conditions. Designed for continuous low-pressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with pump component materials where no suction lift or self priming is required.
