SOUTHWIRE

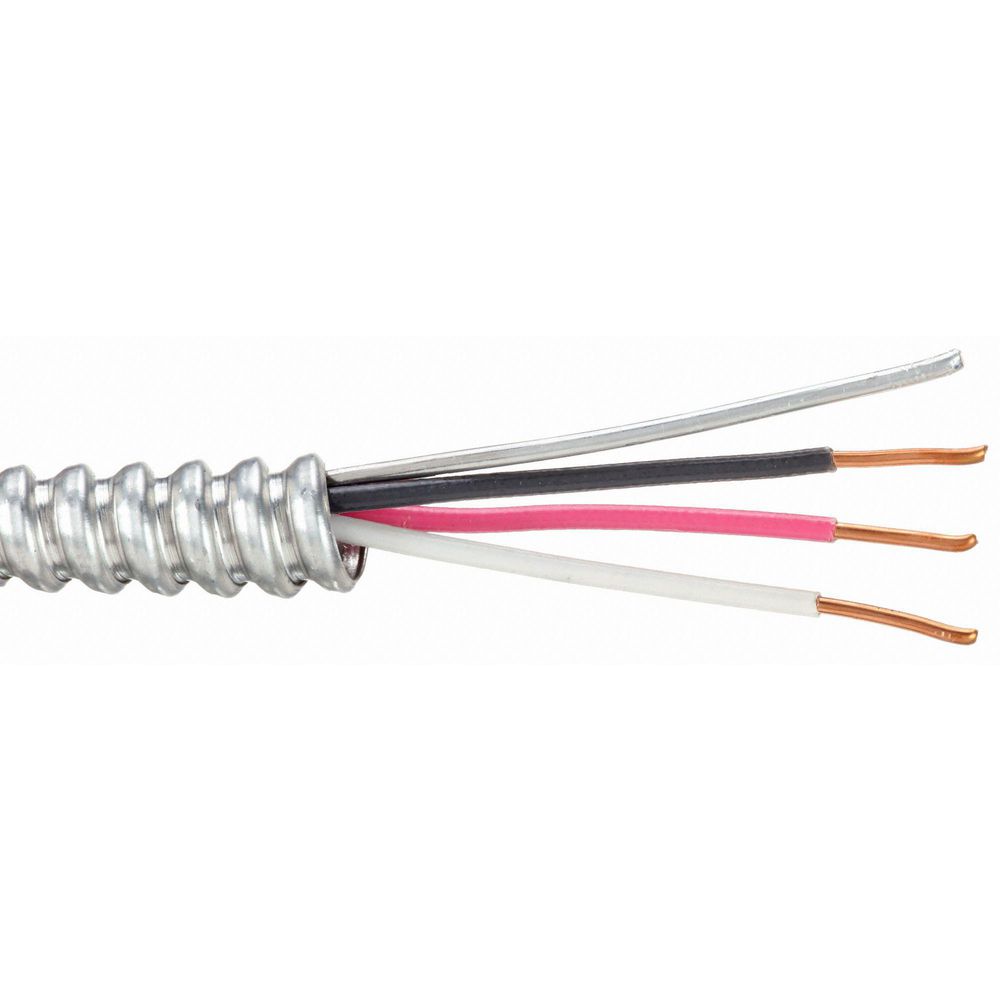

Metal Clad Armored Cable, MC ap, 10 AWG, 250 ft, Number of Conductors 3 with Bare AL Ground

Hover over image to magnify
Armored Cbl,3 w/Grd,10AWG,Mc
PI_Asset_1768684
Armored Cbl,3 w/Grd,10AWG,Mc
PI_Asset_1768684

#934164-3 | Pkg Qty: 1

$525.09 pkg | $525.09 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SOUTHWIRE
Number of Conductors
3 with Bare AL Ground
Cable Type
MC ap
Package Quantity
1
Color Family
Silver
Packaging
Coil
Conductor
Solid Copper
Shipping Weight
40.79 lb.
Gauge/Conductor
10/3 with Bare AL Ground
Spool Length
250 ft.
Insulation Material
PVC
Stranded / Solid
Solid
Item
Metal Clad Armored Cable
Type
MCap
Jacket Color
Silver
Voltage
600 V
Jacket Material
Aluminum
Wire Color
Bare, Black, Red, White
Jacket Type
Aluminum
Wire Size
10 AWG
Length
250 ft.
Wire and Cable Item
Metal Clad Armored Cable
Mfr. Part Number
55527701
General
Cable Type - Wire and Cable
MCap
Temp. Rating
194°F Dry
Conductor Design
Solid
Trade Designation
MC ap
Jacket Material - Wire and Cable
Aluminum
Wire Size - Wire and Cable
10 AWG
Standards
UL

Product Description

Armored building cable is a collection of plastic-coated insulated wire bundled together and protected by a corrugated metal jacket (called a sheath or cord) that serves as a conduit and provides grounding. Also known as BX cable or metal-clad (MC) cable, armored cable prevents accidental penetration better than NM-B building cable, but it is heavier and harder to handle, rip back, and cut. It is often used in applications where cable will be exposed to mechanical or environmental damage under normal operating conditions, such as power circuits in industrial plants and commercial buildings.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.
