SUMITOMO

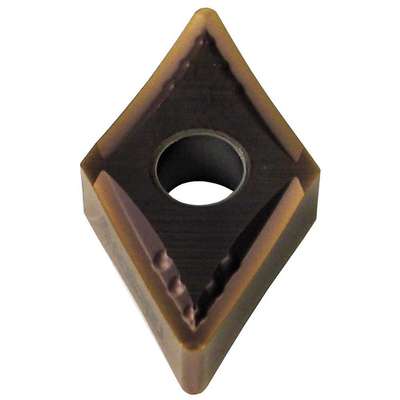

Diamond Turning Insert, Chip-Breaker Code EUP, Inscribed Circle 1/2", Al203+TiCN
Hover over image to magnify
#933923-7 | Pkg Qty: 10
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
ANSI Code
DNMG431EUP
Item
Diamond Turning Insert
ANSI Number
DNMG431EUP-AC820P
Mfr. Part Number
DNMG431EUP-AC820P
Brand
SUMITOMO
Mounting Hole Diameter
0.203 in.
Cast Iron Compatibility
Yes
Mounting Style
Clamp
Chip-Breaker
Yes
Non Ferrous Compatability
No
Coating
Super FF TiCN/Al2O3/TiN CVD
Nose Radius
0.0157 in.
Corner Radius
1/64 in.
Number of Cutting Edges
4
Cutting Direction
Neutral
Number of Edges
4
Grade
AC820P
Package Quantity
10
Hardened Compatibility
No
Primary Material Application
Cast Iron, Steel
ISO Number
DNMG150404NUP
Rake
Positive
Included Angle
55 deg.
Relief Angle
0 deg.
Inscribed Circle
1/2 in.
Shape
Rhombic
Insert Application
Semi-Finishing
Shipping Weight
.4 lb.
Insert Material
Carbide
Style
DNMG
Insert Shape
Diamond
Thickness
3/16 in.
Insert Size
431
Turning Insert Shape
Diamond
Insert Style
DNMG
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Insert Thickness
0.1875 in.
Workpiece Material
Steel, Stainless
General
Application
Medium
Finish - Machining
Al203+TiCN
Chip-Breaker Code
EUP
For Use With
DDJN, MDJN Toolholders, A-MDU, A-MDQ Boring Bars
Chip-Breaker Style
Double
Insert Holding Type
Straight Hole
Clearance Angle
0 Degrees
Manufacturer Grade
AC820P
Coating Process
CVD
Material - Machining
Carbide
Cutting Application
Turning
Measurement System
Fractional Inch
Features
Excellent Wear Resistance and Fracture Resistance
Primary Material Application ISO Code
K20, P20
Product Description
Diamond Turning Insert, Chip-Breaker Code EUP, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code DNMG431EUP, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
Item Barcode
Diamond Turning Insert,Dnmg,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4KAJ8 | |
 | UNSPSC CODES | 23242105 | |
 | VMRS (ATA) CODES | 053-006-009 | Diamond Turning |
