DAYTON

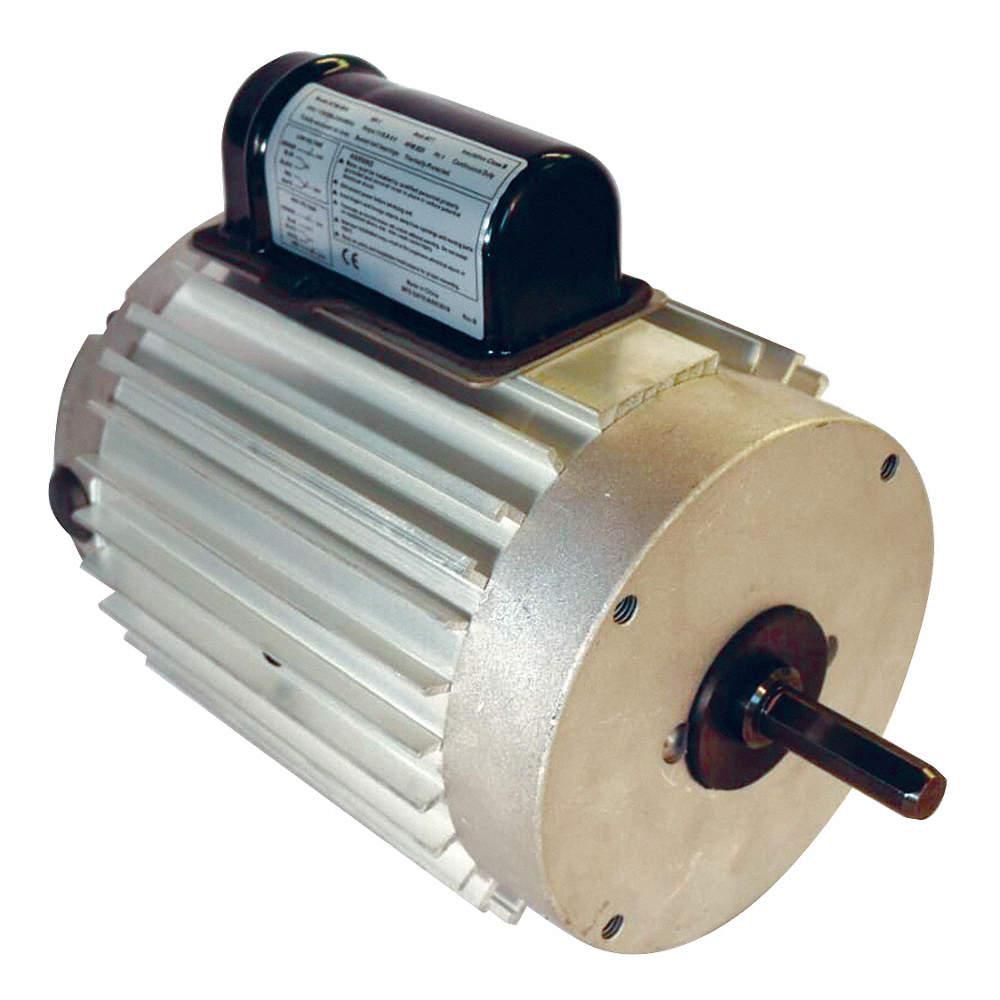

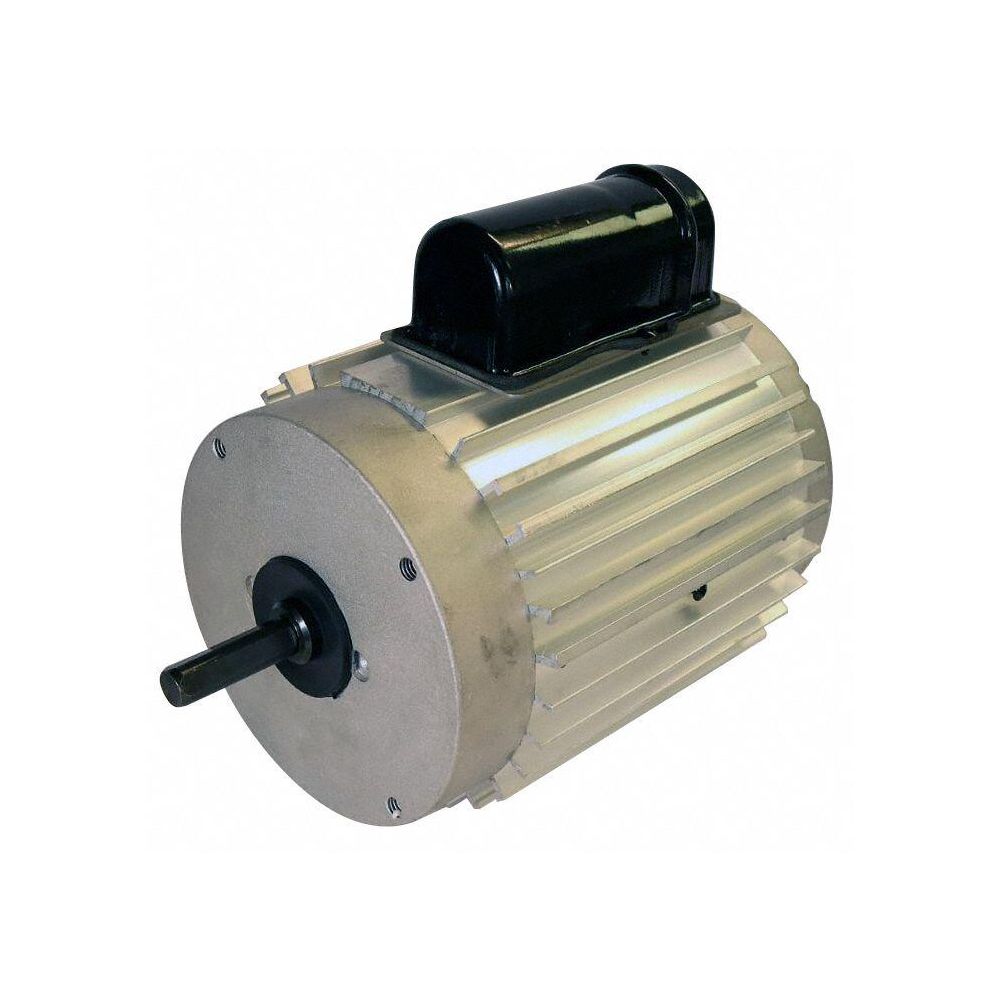

Dayton Agricultural Fan Motor, 1 HP, Split-Phase, Nameplate RPM 825, Voltage 115/208-230V AC, 56 Frame
Hover over image to magnify
#933521-8 | Pkg Qty: 1
$668.87 pkg | $668.87 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mfr. Part Number
A750-8VE
Brand
DAYTON
Motor Design
Split-Phase
Duty
Continuous
Nameplate RPM
825
Duty Cycle
Continuous
Overall Length
11-5/8 in.
Frame
56
Package Quantity
1
Frame Material
Aluminum
Phase
Single
Full Load Amps
11.0/5.8-5.5
Service Factor
1
Hz
60
Shaft Length
2-11/16 in.
Insulation Class
B
Shipping Weight
36.6 lb.
Item
Agricultural Fan Motor
Thermal Protection
Auto
Length Less Shaft
8-15/16 in.
Voltage
115/208-230 VAC
General
Efficiency Group
Standard
Motor Shaft Design
Double-Flat
HP
1
Motor Shaft Rotation
CW
Includes
Aluminum Extruded Housing
Motor Sub Application
Direct Drive Fan/Blower
Ins. Class
B
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
Nominal Efficiency
72 %
Motor Bearings
Ball
RPM Range
0-1,000
Motor Efficiency Group
Standard Efficient
Shaft Dia.
5/8 in
Motor Enclosure Design
Totally Enclosed Air-Over
Standards
CE Certified, UL Recognized US and Canada
Motor Frame Material
Cast Aluminum
Usable @ 200V
No
Motor Mounting Position
Horizontal
Usable @ 208V
Yes
Motor Mounting Type
Face
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Service Factor
1
Product Description
Poultry/livestock direct drive farm-duty AC motors require no V-belts or sheaves that can wear out and require maintenance and replacement. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
