PATTERSON

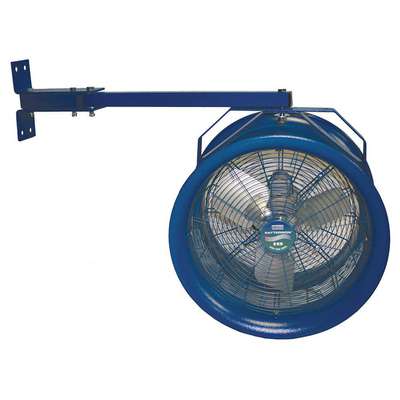

Patterson 18" High- Velocity Industrial Fan, Wall with Dock Arm, 208-230/460 VAC

Hover over image to magnify
Air Cannon,18 In,Dock Mount,3
Air Cannon,18 In,Dock Mount,3

#933402-6 | Pkg Qty: 1

$1,380.29 pkg | $1,380.29 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Flow
3,800 CFM
Motor Type
3 Phase
Blade Diameter
18 in.
Number of Blades
3
Brand
PATTERSON
Number of Speeds
1
Drive Type
Direct
Package Quantity
1
Hz
60
Phase
3
Item
High-Velocity Industrial Fan
Shipping Weight
62.29 lb.
Mfr. Part Number
7J725
Voltage
208-230/460 VAC
Motor Enclosure
Totally Enclosed Air Over
Watts
370
General
Air Velocity @ 20 Ft.
475 fpm
Includes
Dock Mounting Bracket
Air Velocity @ 40 Ft.
350 fpm
Max. Ambient Temp.
105 Degrees F
Air Velocity @ 60 Ft.
250 fpm
Shaft Dia.
5/8 in
Air Velocity @ 80 Ft.
175 fpm
Standards
OSHA compliant wire guards
Fan Mounting Location
Wall with Dock Arm
Wire Guard Finish
Blue Powder Coated

Product Description

High-velocity industrial wall-mount fans have a high-rpm motor and a tubular housing for pushing air at higher speeds over longer distances than fans with a standard open-housing design. They provide more coverage than a typical industrial fan for cooling long aisles and large areas in warehouses and manufacturing plants. These air circulators can be suspended from a ceiling or mounted to a wall in areas with limited floor space. They have a totally enclosed motor to keep out dirt and dust.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
