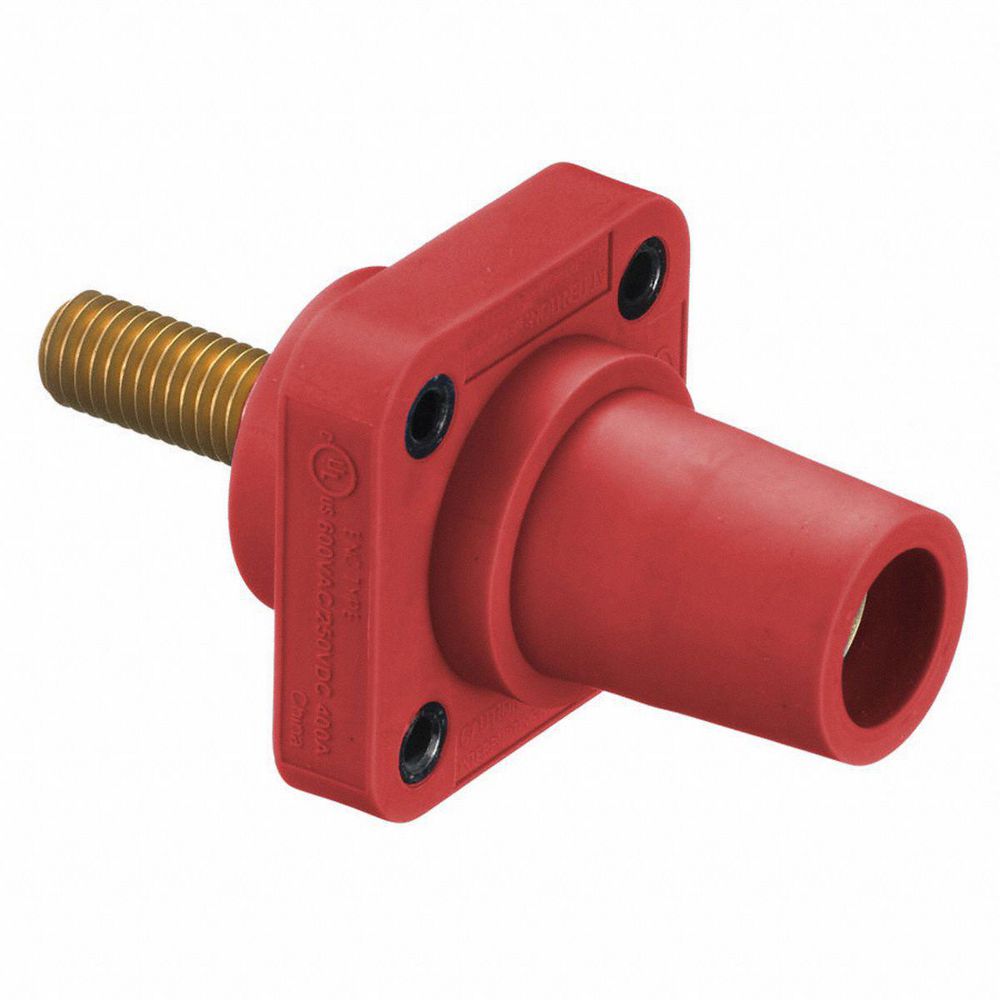

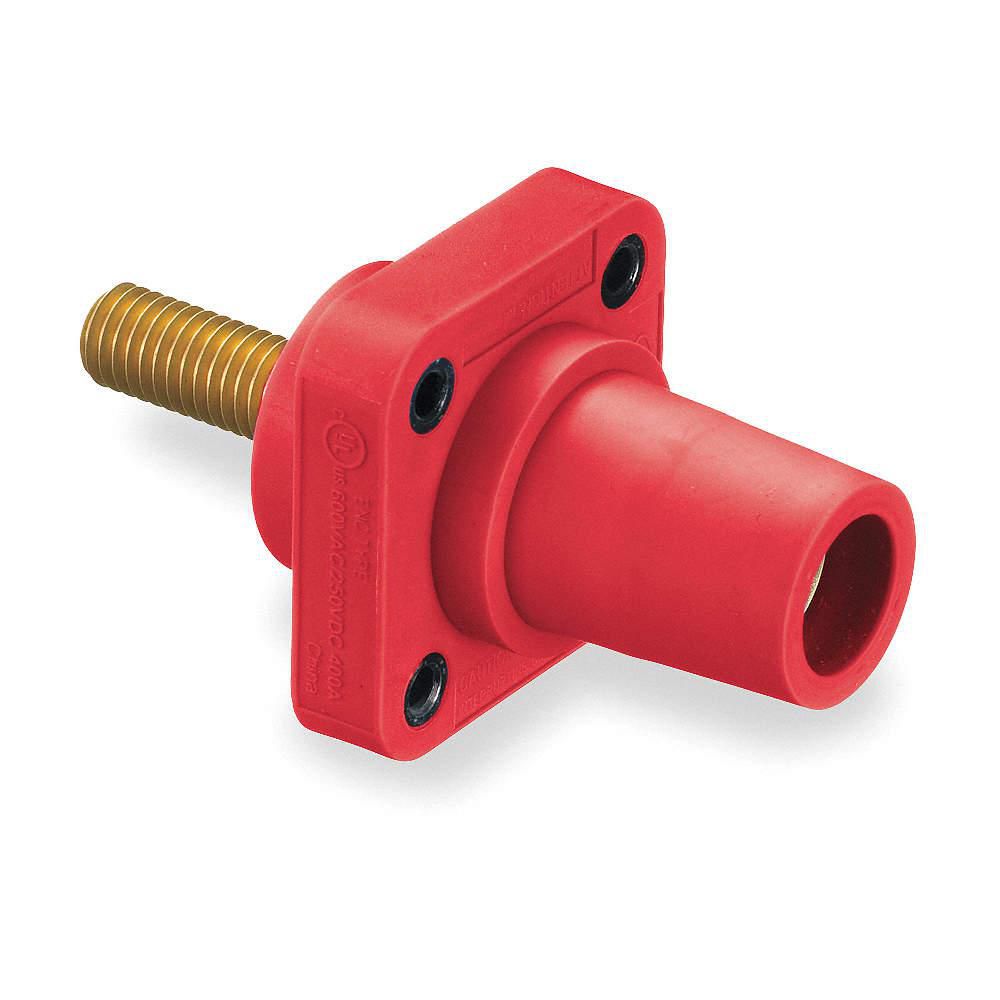

Receptacle, 12K, 3R, 4X NEMA Rating, 16, 400AC/DC Amps AC/DC, Taper Nose

Hover over image to magnify
Receptacle,3R, 4X, 12K,Stud,Red
PI_Asset_1981816
Receptacle,3R, 4X, 12K,Stud,Red
PI_Asset_1981816

#933136-3 | Pkg Qty: 1

$55.59 pkg | $55.59 ea
Item Number 933136-3
Scanner Description Receptacle,3R, 4X, 12K,Stud,Red
Inventory Status Drop Ship Item
Weight 0.6 lb
Brand HUBBELL WIRING DEVICE-KELLEMS

Technical Specifications

Amps AC
400
Mounting
Panel
Amps AC/DC
400AC/DC
NEMA Rating
12K, 3R, 4X
Brand
HUBBELL WIRING DEVICE-KELLEMS
Pack Quantity
1
Color Family
Red
Series
16
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Item
Receptacle
Standards
UL/cUL
Male/Female
Female
Terminal Connection
Threaded Stud
Material
Thermoplastic Elastomer
Type
Single Pole Device
Material of Construction
Thermoplastic Elastomer
Voltage Rating
600 VAC/250 VDC
Mfr. Part Number
HBLFRSR

Product Description

The nonmetallic retaining screw on this single pole connector is designed to lock contacts in place so they don't move within the housing. A special screw thread also helps prevent installation 180° out of rotation and requires fewer turns, reducing the chance of a conductive screw being substituted in its place. A large, raised alignment arrow helps ease mating of devices.

Item Barcode
9331363
  Name Item Description
Grainger Dropship Grainger Dropship 2XB57 Receptacle, 3R, 4X, 12K,
UNSPSC CODES UNSPSC CODES 39121406
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Receptacle, 3R, 4X, 12K,
