LEGRAND

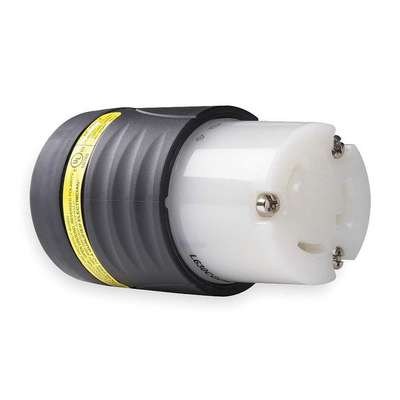

Legrand 30 Amp Specification Grade Ground Continuity Monitoring Locking Connector, L6-30R NEMA Configuration
Hover over image to magnify
#933060-2 | Pkg Qty: 1
$135.08 pkg | $135.08 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Minimum Operating Temperature
-40 °C
Amps
30 A
Minimum Wire Size
18 AWG
Antimicrobial
No
NEMA Configuration - Plugs & Connectors
L6-30
Brand
LEGRAND
NEMA Plug Configuration
L6-30R
Color Family
Black / White
NEMA Receptacle Configuration
L6-30R
Connection Orientation
Straight
Number of Poles
2
Contact Material
Brass
Number of Wires
3
Cord Size
0.385 in to 1.150 in
Outside Diameter
1.516 in.
Corrosion Resistant
No
Overall Length
2.791 in.
Current Rating
30 A
Package Quantity
1
Description
Turnlok, Heavy-Duty
Phase
Three
For Maximum Cable Diameter
0.69 in.
Power Indicating Light
Yes
For Minimum Cable Diameter
0.385 in.
Power Indicator
No
Grade
Federal Specification
Reverse Service
Yes
Grounding
Grounded
Shipping Weight
.4 lb.
Housing Material
Nylon
Shrouded
No
IP Rating
Not Rated
Standards
cULus Listed, UL Listed
Item
Locking Connector
Subcategory
Connectors
Material
Nylon
Type
Ground Continuity Monitoring
Material of Construction
Nylon
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
75 °C
Voltage
250VAC
Maximum Wire Size
10 AWG
Voltage Rating
250V AC
Mfr. Part Number
L630CGCM
Wiring Style
Standard
Midget Locking
No
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L6-30R
Grade - Plugs and Receptacles
Specification
Voltage - Plugs and Receptacles
250V AC
Product Description
Nylon housing provides superior chemical and impact resistance in this connector. It also helps provide an integral dust seal. Connector features single-plane wiring for easy installation. Black and white color.
Expertly Selected Product Pairings
Item Barcode
Connector,250VAC,30A,L6-30R,2P,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1PGL9 | Connector, 250VAC,30A, |
 | UNSPSC CODES | 39121403 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector, 250VAC,30A, |
