SCHNEIDER ELECTRIC

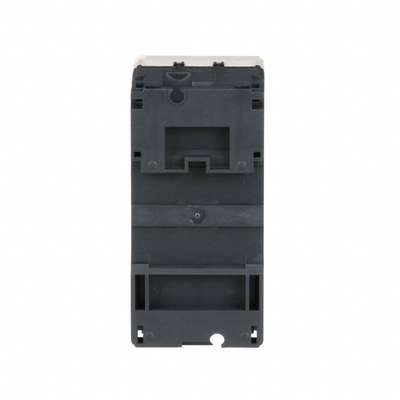

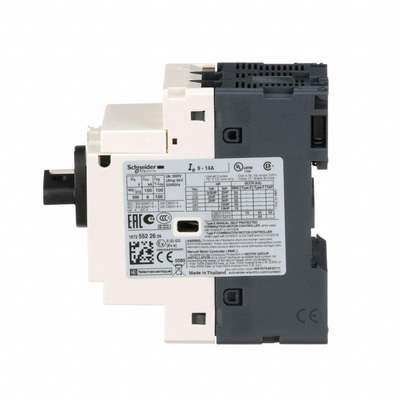

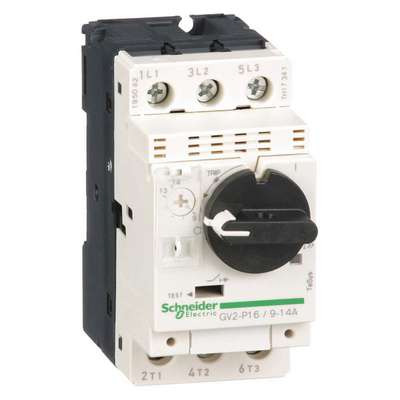

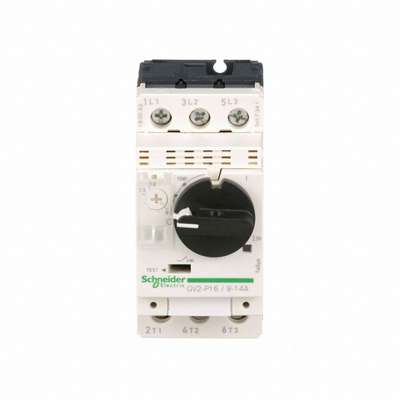

Schneider Electric Manual Motor Starter: Rotary Knob, No Enclosure, 9 to 14A, 3 Poles, 600V AC

Hover over image to magnify
Manual Motor Starter,Knob,9 To
PI_Asset_1984515
PI_Asset_1988566
PI_Asset_1991657
PI_Asset_1992612
Manual Motor Starter,Knob,9 To
PI_Asset_1984515
PI_Asset_1988566
PI_Asset_1991657
PI_Asset_1992612

#932981-4 | Pkg Qty: 1

$368.59 pkg | $368.59 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SCHNEIDER ELECTRIC
Item
Manual Motor Starter
Depth
3.83 in.
Mfr. Part Number
GV2P16
Description/Special Features
Reliable Overload Protection
Number of Poles
3
Enclosure NEMA Rating
No Enclosure
Package Quantity
1
Enclosure Type
Open
Phase Loss Sensitivity
No
HP @ 1 Phase - 120 V
3/4 hp
Shipping Weight
.78 lb.
HP @ 1 Phase - 230 V
2 hp
Starter Type
IEC Style
HP @ 3 Phase - 240 V
3 hp
Type
IEC
HP @ 3 Phase - 480 V
10 hp
Width
1-3/4 in.
Height
3-1/2 in.
General
HP @ 1 Phase - 115V
3/4
HP @ 3 Phase - 460V
10
HP @ 1 Phase - 120V
3/4 hp
HP @ 3 Phase - 480V
10 hp
HP @ 1 Phase - 230V
2 hp
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 200V
3
Operator
Rotary Knob
HP @ 3 Phase - 208V
3 hp
Overload Relay Amp Setting
9 to 14A
HP @ 3 Phase - 230V
3
Pilot Light
Yes
HP @ 3 Phase - 240V
3 hp
Standards
CSA, UL
HP @ 3 Phase - 460-575V
10

Product Description

IEC Manual Motor Starters

  • Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection Schneider Electric Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.
