GOULDS WATER TECHNOLOGY

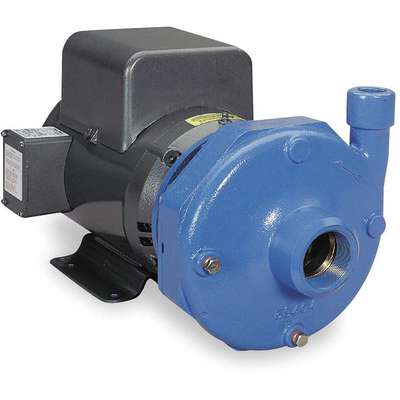

Centrifugal Pump: 5 hp, 230/460V AC, 187 ft Max Head, 2 in , 1 in Intake and Disch
#932933-3Pkg Qty: 1
$4,084.11 pkg
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
NSF 61
Amps
12-11.8/5.9
Brand
GOULDS WATER TECHNOLOGY
Hz
60
Item
Centrifugal Pump
Mfr. Part Number
22BF1J9A0
Mfr. Warranty Length
1 yr.
Motor Type
JM
Package Quantity
1
Seal Material
Buna-N, Carbon/Ceramic
Shipping Weight
144 lb.
Wetted Materials
Bronze
Agency Compliance
NSF 61
Mfr. Warranty Length
1 yr.
Amps
12-11.8/5.9
Motor Type
JM
Brand
GOULDS WATER TECHNOLOGY
Package Quantity
1
Hz
60
Seal Material
Buna-N, Carbon/Ceramic
Item
Centrifugal Pump
Shipping Weight
144 lb.
Mfr. Part Number
22BF1J9A0
Wetted Materials
Bronze
General
Best Efficiency Flow
82 gpm
Best Efficiency Head
150 ft
Compatible Discharge Pipe Size
1 in
Compatible Intake Pipe Size
2 in
Compatible with Media Type
Water
Discharge Rotation
90 Degrees Increments
Discharge Type
NPT
Flow Rate @ 140 ft of Head (Maximum)
95 gpm
Flow Rate @ 160 ft of Head (Maximum)
75 gpm
Flow Rate @ 180 ft of Head (Maximum)
45 gpm
For Use With Potable Systems
Yes
Impeller Design
Closed
Intake Type
NPT
Intake and Discharge Size
2 in , 1 in
Manufacturer Warranty Length
1 yr
Maximum Feet of Head
187 ft
Maximum Media Temperature
212 Degrees F
Motor Enclosure Type
TEFC
Mounting Orientation
Horizontal
Nominal Voltage
230/460V AC
Priming
Manual
Pump Housing Material
Cast Iron
Pumping Application
Booster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation
Shut Off Pressure (Maximum)
175 psi
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Best Efficiency Flow
82 gpm
Intake and Discharge Size
2 in , 1 in
Best Efficiency Head
150 ft
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1 in
Maximum Feet of Head
187 ft
Compatible Intake Pipe Size
2 in
Maximum Media Temperature
212 Degrees F
Compatible with Media Type
Water
Motor Enclosure Type
TEFC
Discharge Rotation
90 Degrees Increments
Mounting Orientation
Horizontal
Discharge Type
NPT
Nominal Voltage
230/460V AC
Flow Rate @ 140 ft of Head (Maximum)
95 gpm
Priming
Manual
Flow Rate @ 160 ft of Head (Maximum)
75 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 180 ft of Head (Maximum)
45 gpm
Pumping Application
Booster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation
For Use With Potable Systems
Yes
Shut Off Pressure (Maximum)
175 psi
Impeller Design
Closed
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Intake Type
NPT
Product Description
This centrifugal pump helps transport water and other fluids with the use of an impeller. It features a compact design to help with water circulation, booster service, liquid transfer, spraying systems, irrigation, and general purpose pumping. The compact pump design helps to save space and facilitate smooth installation.
Item Barcode
Pump,5 Hp,3 Ph,240/460VAC
