#932913 | Pkg Qty: 1
$5.38 pkg
| $5.38 ea
Technical Specifications
Key Specifications
Brand
TITAN PRO
Number of Terminals
2
Capacitor Shape
Oval
Overall Depth
1-1/4 in.
Case Height
2-3/16 in.
Overall Height
2-3/4 in.
Case Material
Aluminum
Overall Width
2 in.
Connection Type
Quick Connect
Pack Quantity
1
Construction
Aluminum Case with Steel Cover
Shape
Oval
Cover Material
Steel
Temperature Range
-40 C to 70 C
Hz
60/50
Terminals
1/4 in. Male

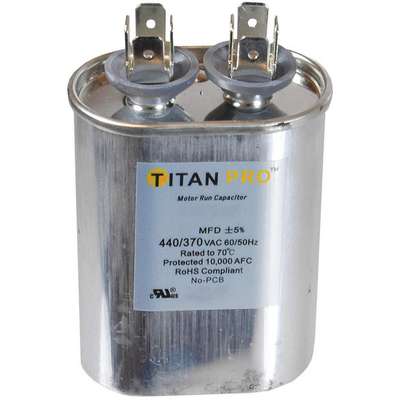

Item
Motor Run Capacitor
Voltage
440/370 VAC
Number of Pieces
1
General
Capacitor Voltage
440/370V AC
Motor Capacitor Type
Motor Run Capacitor
EIA Tolerance Code
A
Standards
UL Recognized (E185318)
EIA UL Base
A
Temp. Range
-40° to 70°C
For Use With
Electric Motors
Terminal Designations
Standard
Microfarad Rating
2.5
Terminal Gender
Male
Min. Temperature
-40 °C
Terminal Tab Width
1/4 in
Product Description
Run Capacitors
- Temp. range: -40° to 70°C The dielectric is made of metallized polypropylene film, and the dielectric coils are impregnated under vacuum and high temperature with an innovative biodegradable oil. 60/50 Hz. 1/4" male terminals. UL Recognized.
Item Barcode
Motor Run Capacitor,2.5 Mfd,2-
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 30D577 | Motor Run Capacitor,2. |
|
UNSPSC CODES | 32121501 | |
|
VMRS (ATA) CODES | 053-006-009 | Motor Run Capacitor,2. |
