MARATHON MOTORS

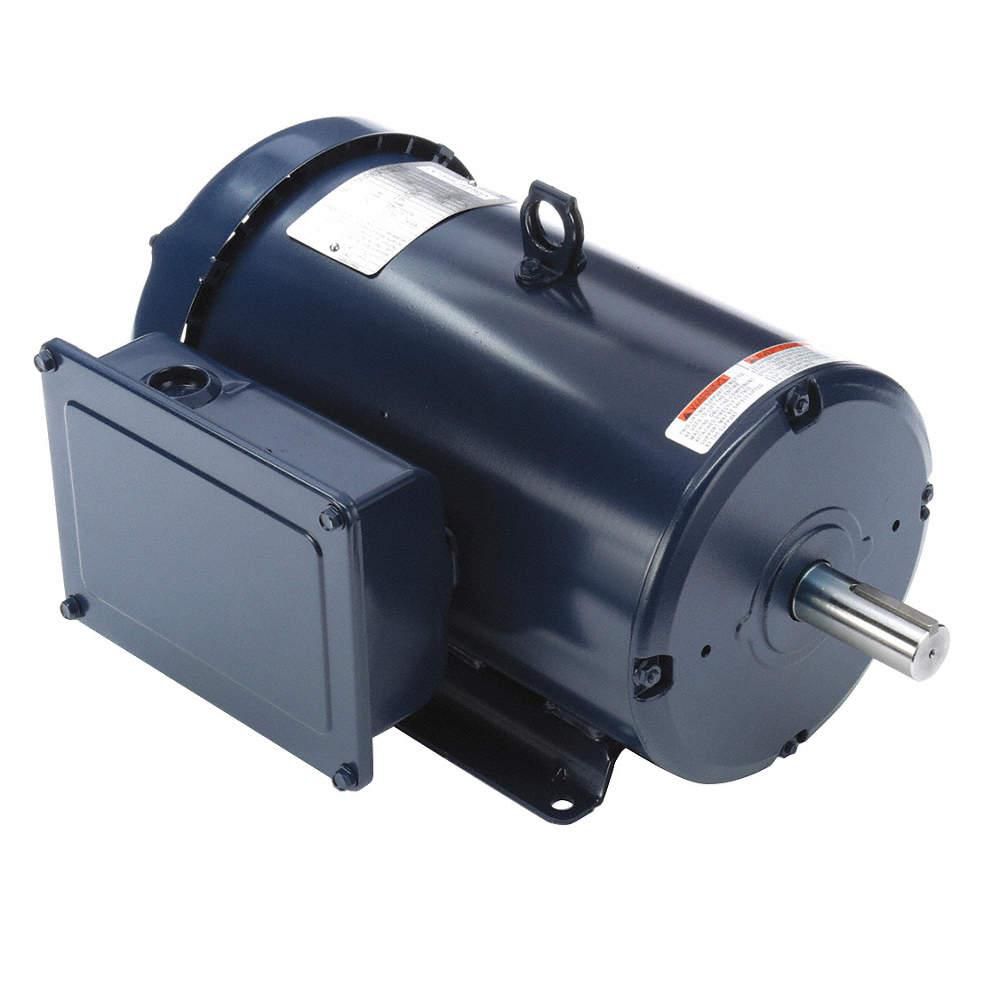

Marathon Motors General Purpose Motor, 5 HP, Capacitor-Start/Run, Nameplate RPM 1,755, Voltage 208-230V AC

Hover over image to magnify
Motor,5 Hp,1755 Rpm,208-230V

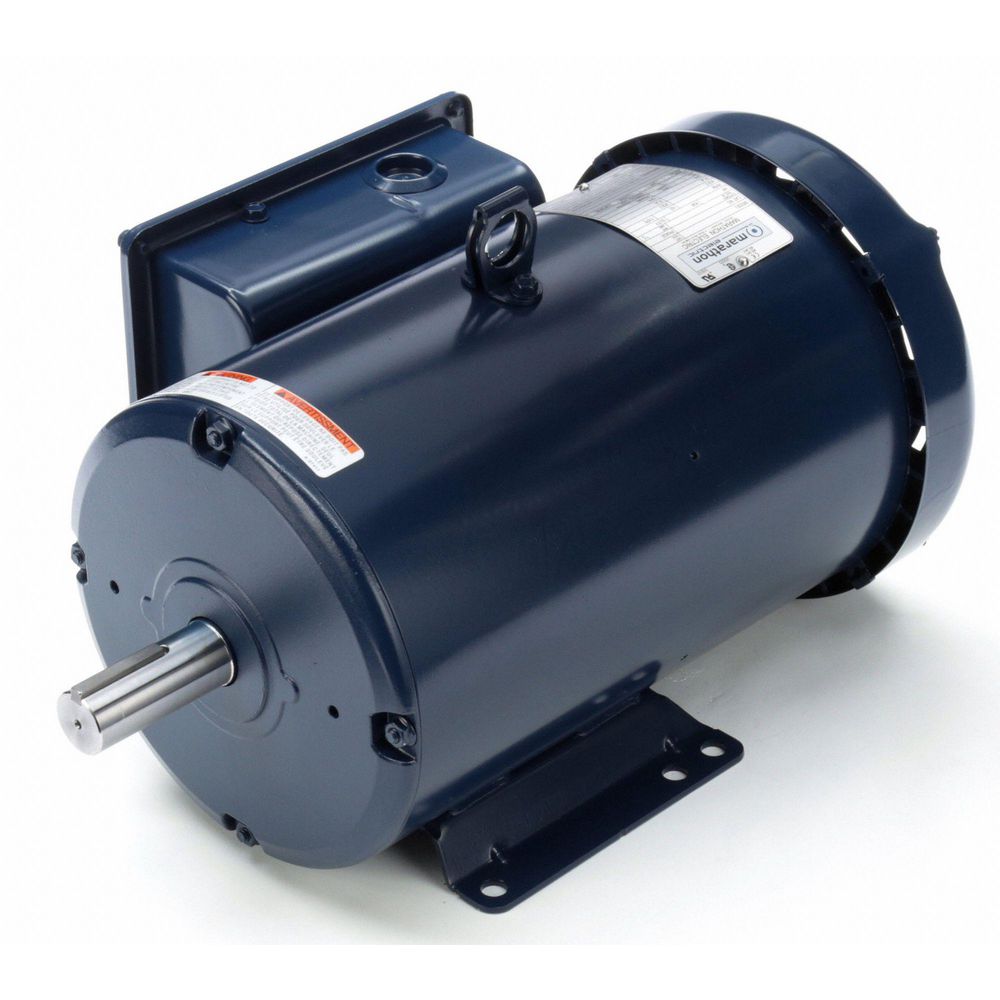

PI_Asset_1757220
PI_Asset_1761174
PI_Asset_1770916
Motor,5 Hp,1755 Rpm,208-230V
PI_Asset_1757220
PI_Asset_1761174
PI_Asset_1770916

#932761-8 | Pkg Qty: 1

$1,249.26 pkg | $1,249.26 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearings
Ball
Mounting
Base
Brand
MARATHON MOTORS
Mounting Position
Horizontal
Duty
Continuous
NEMA/IEC Frame
184T
Duty Cycle
Continuous
Nameplate RPM
1755
Enclosure
Totally Enclosed Fan-Cooled
Number of Speeds
1
Frame
184T
Overall Length
17-7/16 in.
Full Load Amps
21.5-19.5
Package Quantity
1
Hz
60
Phase
Single
Insulation Class
F
Rotation
CW/CCW
Item
General Purpose Motor
Service Factor
1.15
Length Less Shaft
14-5/8 in.
Shaft Length
2-13/16 in.
Mfr. Part Number
184TBFW7726
Shaft Type
Keyed
Mfr. Warranty Length
1 yr.
Shipping Weight
115 lb.
Motor Design
Capacitor-Start/Run
Thermal Protection
None
Motor Type
Capacitor-Start
Voltage
208-230 VAC
General
HP
5
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Thermal Protection
None
Max. Ambient Temp.
40 °C
NEMA Design
L
Motor Application
General Application
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
88.5 %
Motor Efficiency Group
Standard Efficient
RPM Group
1701-1800
Motor Enclosure Design
Totally Enclosed Fan-Cooled
RPM Range
1,701-1,800
Motor Frame Material
Steel
Shaft Dia.
1 1/8 in
Motor Mounting Position
Horizontal
Standards
CSA, UL
Motor Mounting Type
Rigid Base
Usable @ 208V
Yes
Motor Service Factor
1.15
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Shaft Design
Keyed

Product Description

NEMA 180 frame capacitor-start/run general purpose AC motors have a standard 1-1/8" diameter, 2-3/4" length shaft whose center is 4-1/2" above the mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 184TC. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
