AIR SYSTEMS INTERNATIONAL

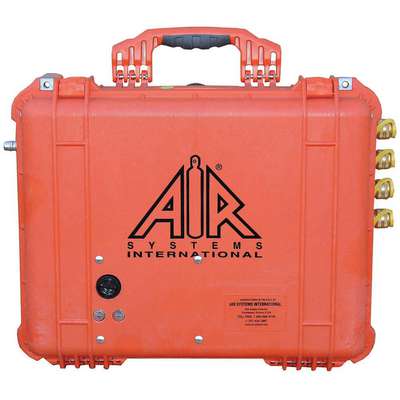

Air Systems International Portable Filtration Panel: 4 Users, 125 psi Max Pressure, 79 cfm Air Flow, Battery Operated

Hover over image to magnify
Filtration Panel,1/4 In.
PI_Asset_1028720
PI_Asset_1028721
Filtration Panel,1/4 In.
PI_Asset_1028720
PI_Asset_1028721
Air Systems International Portable Filtration Panel: 4 Users, 125 psi Max Pressure, 79 cfm Air Flow, Battery Operated Video
Air Systems International Portable Filtration Panel: 4 Users, 125 psi Max Pressure, 79 cfm Air Flow, Battery Operated Video
Air Systems International Portable Filtration Panel: 4 Users, 125 psi Max Pressure, 79 cfm Air Flow, Battery Operated Video
Air Systems International Portable Filtration Panel: 4 Users, 125 psi Max Pressure, 79 cfm Air Flow, Battery Operated Video

#932718-5 | Pkg Qty: 1

$2,259.95 pkg | $2,259.95 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps
0.5A AC
Maximum Pressure
125 psi
Brand
AIR SYSTEMS INTERNATIONAL
Mfr. Part Number
BB50-COIS
CFM
79
Package Quantity
1
Coupler Type
Hansen
People Served
4
Efficiency
0.9997
Shipping Weight
32 lb.
Item
Portable Filtration Panel
General
Air Flow
79 cfm
Includes Oxygen Monitor
No
Couplers
Hansen
Number of Users
4
Features
3 Filters
Power Options
Battery Operated
First Stage Filter Removes
Bulk Water, Particulate
Second stage Filter Removes
Atomized Oils, Mists, Ultra-Fine Particulates
Includes
(2) Automatic Drains with Discharge Tubes, CO Monitor, External Warning Lights and Alarm, Incoming Air Plug, Remote Alarm Receptacle
Standards
OSHA
Includes Alarm
Yes
System Type
SAR System
Includes Carbon Monoxide Monitor
Yes
Third Stage Filter Removes
Odors, Organic Vapors
Includes Filtration
Yes

Product Description

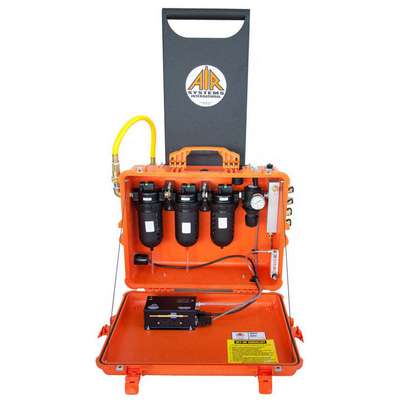

CSA approved and intrinsically safe, this portable filtration panel provides Grade-D filtration to up to 4 people through an attached plant air or mobile compressor. It filters water, oil, particulates, and odors. The built-in CO monitor operates on 9VDC.  The external alarm and light signal high CO content. The outlet manifold has 1/4" industrial interchange couplings. The inlet fitting is a 1/2" industrial interchange plug. Efficiency is 99.99% at 0.01 microns.
