PATTERSON

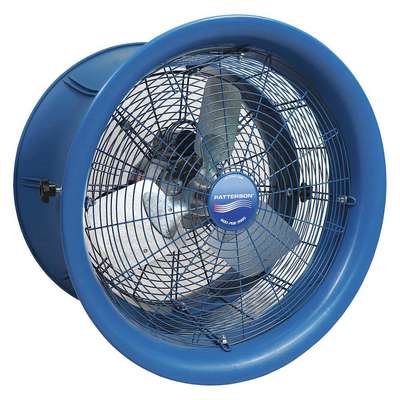

Patterson 18" High- Velocity Industrial Fan, Stationary, Fan Head Only, 115/208-230 VAC

Hover over image to magnify
Hgh Vlcty Indstrl Fan,18" Blde
Hgh Vlcty Indstrl Fan,18" Blde

#932690-9 | Pkg Qty: 1

$852.87 pkg | $852.87 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Flow
3,800 CFM
Motor Type
Permanent Split Capacitor
Amps
6.0/3.0-2.9
Number of Blades
3
Blade Diameter
18 in.
Number of Speeds
1
Brand
PATTERSON
Package Quantity
1
Depth
16 in.
Phase
1
Hz
60 Hz
RPM
1725
Item
High-Velocity Industrial Fan
Shipping Weight
36.7 lb.
Mfr. Part Number
HIP18A-CS
Voltage
115/208-230 VAC
Motor Enclosure
Totally Enclosed Air Over
General
Air Velocity @ 20 Ft.
475 fpm
Includes
12 ft Cord with 115V Plug
Air Velocity @ 40 Ft.
350 fpm
Max. Ambient Temp.
105 Degrees F
Air Velocity @ 60 Ft.
250 fpm
Oscillation
Non-Oscillating
Air Velocity @ 80 Ft.
175 fpm
Shaft Dia.
5/8 in
Environmental Applications
Industrial
Standards
OSHA
Fan Housing Material
Polypropylene
Wheeled Base
Stationary
Fan Mounting Location
Fan Head Only
Wire Guard Finish
Blue Powder Coated

Product Description

High-velocity industrial fan heads have a high-rpm motor and a tubular housing for pushing air at higher speeds over longer distances than fan heads with a standard open-grill design. They provide more coverage than a typical industrial fan for cooling long aisles and large areas in warehouses and manufacturing plants. These fan blade, motor, and guard assemblies can be paired with a new or existing bracket or base.

Industrial fan heads are assemblies for replacing a broken fan head on an existing mount or pairing with a new mount to create a fan suited for a specific environment or application. These fan blade, motor, and guard assemblies are used with a separate base or mounting bracket. They are made of heavy-gauge materials suitable for daily use in industrial cooling and temperature-regulation applications. Their powerful motor drives the fan blades to move large volumes of air, is totally enclosed to keep out dirt and dust, and features high-performance bearings for a long life. The guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
