HUBBELL WIRING DEVICE-KELLEMS

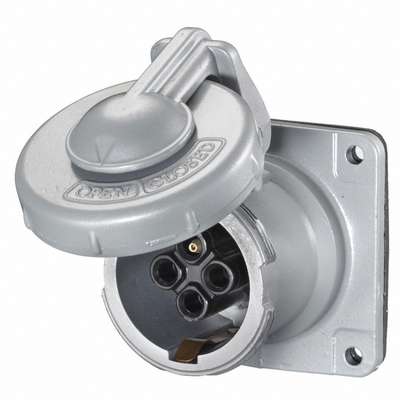

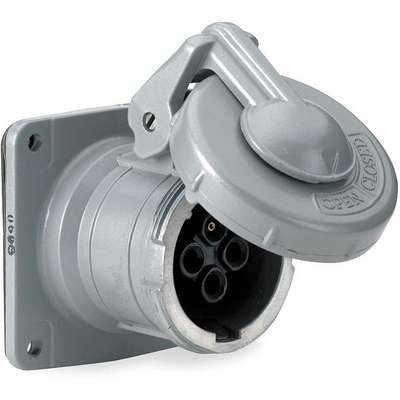

Hubbell Wiring Device-Kellems 30 Amp, 3-Phase Valox 357 Housing and Aluminum Shroud Watertight Pin and Sleeve Receptacle, Gray
#932583-3 | Pkg Qty: 1
$421.18 pkg | $421.18 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Mfr. Part Number
HBL430RS2W
Amps
30 A
Minimum Operating Temperature
-40 °C
Body Material
Zytel 101 Nylon
Minimum Wire Size
8 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Enclosure Rating
Not Rated
Cap Type
Spring-Loaded Cap
NEMA Rating
4X
Color Family
Gray
Number of Poles
3
Current Rating
30 A
Number of Poles & Wires
3 Pole / 4 Wire
Face Diameter
3.89 in.
Number of Wires
4
Features
Abuse Resistant
Package Quantity
1
Flange Type
Flanged
Phase
Three
Grounding
Grounded
Pin & Sleeve Standards
UL 1682
Grounding Style
Style 2
Shipping Weight
1.45 lb.
Housing Color
Silver
Shrouded
Yes
Housing Material
Thermoplastic
Standards
CSA Certified C22.2 No. 182.1, CSA Certified Type 4X, UL 1682, UL Listed
Housing Material Grade
Valox 357
Switch Rated
No
Housing Material Type
Non-Metallic
Type
Insulgrip Pin and Sleeve, Interchangeable, Female Receptacle
Item
Watertight Pin and Sleeve Receptacle
UL 94 Flammability Rating
V-0
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage
600VAC/250VDC
Maximum Operating Temperature
75 °C
Voltage Rating
600V AC/250V DC
Maximum Wire Size
2 AWG
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
30
Phase - Electrical
3
Features
Abuse Resistant
Voltage - Plugs and Receptacles
600V AC/250V DC
Product Description
Insulgrip® pin and sleeve plugs and connectors have a metallic shroud to provide ground and protect pins, and a watertight, nonmetallic housing for corrosion resistance and electrical safety. Style II devices have a dual-ground safety feature using dedicated ground pin. Interchangeable with traditional all-metallic pin and sleeve devices built to UL 1686-C1.
