DAYTON

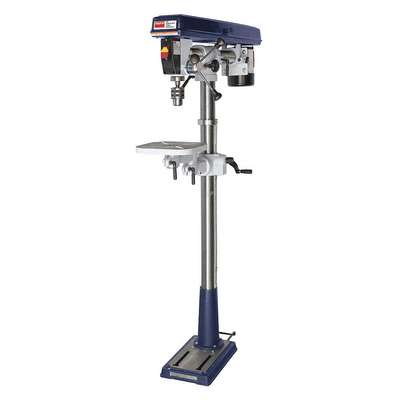

Dayton Radial Floor Drill Press: 33", Belt, Fixed, 120 VAC, 550 RPM – 3, 300 RPM
#932213-7Pkg Qty: 1
$1,167.84 pkg
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
Countersinking, Drilling, Reaming
Base Length
16-3/4 in.
Base Width
14 in.
Brand
DAYTON
Chuck Size
5/8 in.
Chuck Type
Keyed
Current Rating
5.5 A
Drive Type
Belt
Horsepower
1/2 HP
Includes
Arbor, Chuck and Key
Item
Floor Stand Radial Drill Press
Mfr. Part Number
40PM17
Package Quantity
1
Phase
Single
Shipping Weight
143 lb.
Swing
33 in.
Table Shape
Square
Voltage
120V AC
Application
Countersinking, Drilling, Reaming
Includes
Arbor, Chuck and Key
Base Length
16-3/4 in.
Item
Floor Stand Radial Drill Press
Base Width
14 in.
Mfr. Part Number
40PM17
Brand
DAYTON
Package Quantity
1
Chuck Size
5/8 in.
Phase
Single
Chuck Type
Keyed
Shipping Weight
143 lb.
Current Rating
5.5 A
Swing
33 in.
Drive Type
Belt
Table Shape
Square
Horsepower
1/2 HP
Voltage
120V AC
General
Amps AC
7.0
Chuck Capacity
5/8 in
Chuck Style
Keyed
Column Diameter
2 3/4 in
Corded/Cordless
Corded
Current
5.5 A
Drill Press Application
Countersinking, Drilling, Reaming
Drill Press Type
Floor Stand
Drilling Capacity in Steel
3/8 in
Hz
60
Maximum Overall Height
65 in
Maximum Spindle Speed
3,300 RPM
Maximum Spindle-to-Base Height
50 in
Maximum Spindle-to-Table Height
30 in
Minimum Spindle Speed
550 RPM
Nominal Voltage
115V AC
Overall Depth
33 in.
Overall Height
65 in.
Overall Width
14 in.
Quill Diameter
1 55/64 in
Radial Arm
Yes
Radial Arm Length
33 in
Speed Adjustment
Step Pulley
Speed Control
Fixed
Speed Range
550 to 3,300 RPM
Spindle Speed Range
550 RPM - 3,300 RPM
Spindle Taper
MT2/JT33
Spindle Travel
3 5/32 in
Spindle-to-Column Distance
16 1/2 in
Table Length
10 3/8 in
Table Slot
Yes
Table Tilt
45 Degrees
Table Width
10 3/8 in
Tilting Angle
45 Degrees
Amps AC
7.0
Overall Height
65 in.
Chuck Capacity
5/8 in
Overall Width
14 in.
Chuck Style
Keyed
Quill Diameter
1 55/64 in
Column Diameter
2 3/4 in
Radial Arm
Yes
Corded/Cordless
Corded
Radial Arm Length
33 in
Current
5.5 A
Speed Adjustment
Step Pulley
Drill Press Application
Countersinking, Drilling, Reaming
Speed Control
Fixed
Drill Press Type
Floor Stand
Speed Range
550 to 3,300 RPM
Drilling Capacity in Steel
3/8 in
Spindle Speed Range
550 RPM - 3,300 RPM
Hz
60
Spindle Taper
MT2/JT33
Maximum Overall Height
65 in
Spindle Travel
3 5/32 in
Maximum Spindle Speed
3,300 RPM
Spindle-to-Column Distance
16 1/2 in
Maximum Spindle-to-Base Height
50 in
Table Length
10 3/8 in
Maximum Spindle-to-Table Height
30 in
Table Slot
Yes
Minimum Spindle Speed
550 RPM
Table Tilt
45 Degrees
Nominal Voltage
115V AC
Table Width
10 3/8 in
Overall Depth
33 in.
Tilting Angle
45 Degrees
Product Description
General Purpose Drill Presses, Radial Floor Drill Press, Drive Type Belt, Swing 33 in, Spindle Taper 2MT, Motor HP 1/2 hp, Capacity Steel 3/8 in, Capacity Cast Iron 5/8 in, Drilling Capacity Wood Not Specified, Includes Arbor, Chuck and Key, Power Down Feed Included No, Voltage 120, Amps AC 7.0, Number of Speeds 5, Chuck Size 5/8 in, Spindle Speed 550 to 3300 rpm, Spindle Travel 3 5/32 in, Base Size 14 in x 23-1/2 in, Table Work Surface 10-3/8 in x 10-3/8 in, Hz 60, Phase 1, Number of T-Slots 0
