SKF

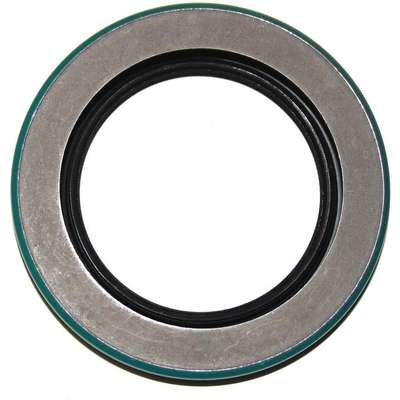

Single Lip with Spring Rotary Shaft Seal with 3-7/16" Inside Dia. and 4-1/4"Outside Dia.
#931965-8Pkg Qty: 1
$49.99 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SKF
Inside Diameter
3-7/16 in.
Item
Rotary Shaft Seal
Lip Material
Nitrile Rubber
Maximum Pressure
10 psi
Mfr. Part Number
34256
Outside Diameter
4-1/4 in.
Package Quantity
1
Rotary Shaft Seal Seal Type
Single Lip with Spring
Shipping Weight
.15 lb.
Width
3/8 in.
Brand
SKF
Outside Diameter
4-1/4 in.
Inside Diameter
3-7/16 in.
Package Quantity
1
Item
Rotary Shaft Seal
Rotary Shaft Seal Seal Type
Single Lip with Spring
Lip Material
Nitrile Rubber
Shipping Weight
.15 lb.
Maximum Pressure
10 psi
Width
3/8 in.
Mfr. Part Number
34256
General
Case Coating
Acrylic
Contact Type
Contact Seal
Design Code
CRW1
For Fluid Type
Animal and Vegetable Oils, Diesel, Gasoline, Greases, Hot Water, Light Heating Oil, Mineral Oils
Lip Material Application
Nitrile Rubber for General Applications
Maximum Rotational Speed
2,220 RPM
Maximum Surface Speed
10.1 mps
Maximum Temperature
100 Degrees C
Minimum Temperature
-40 Degrees C
Number of Lips
1
Overall Width
0.375 in
Resistance Properties
Chemical Resistant
Seal Type
Wave Lip Seal
Spring Material
Carbon Steel
Spring Reinforcement
Yes
Spring Type
Garter
Standards
ASTM D1418, ASTM D1600, DIN 7728 Part 1, ISO Certified 1043-1, ISO Certified 1629
System of Measurement
Inch
Case Coating
Acrylic
Number of Lips
1
Contact Type
Contact Seal
Overall Width
0.375 in
Design Code
CRW1
Resistance Properties
Chemical Resistant
For Fluid Type
Animal and Vegetable Oils, Diesel, Gasoline, Greases, Hot Water, Light Heating Oil, Mineral Oils
Seal Type
Wave Lip Seal
Lip Material Application
Nitrile Rubber for General Applications
Spring Material
Carbon Steel
Maximum Rotational Speed
2,220 RPM
Spring Reinforcement
Yes
Maximum Surface Speed
10.1 mps
Spring Type
Garter
Maximum Temperature
100 Degrees C
Standards
ASTM D1418, ASTM D1600, DIN 7728 Part 1, ISO Certified 1043-1, ISO Certified 1629
Minimum Temperature
-40 Degrees C
System of Measurement
Inch
Product Description
Rotary Shaft Seal, Seal Type Single Lip with Spring, Inside Dia. 3 7/16 in, Outside Dia. 4 1/4 in, Width 3/8 in, Nitrile Rubber Lip Material, Design Code CRW1, Max. Pressure 10 psi
Item Barcode
Shaft Seal,3-7/16x4-1/4x3/8",
