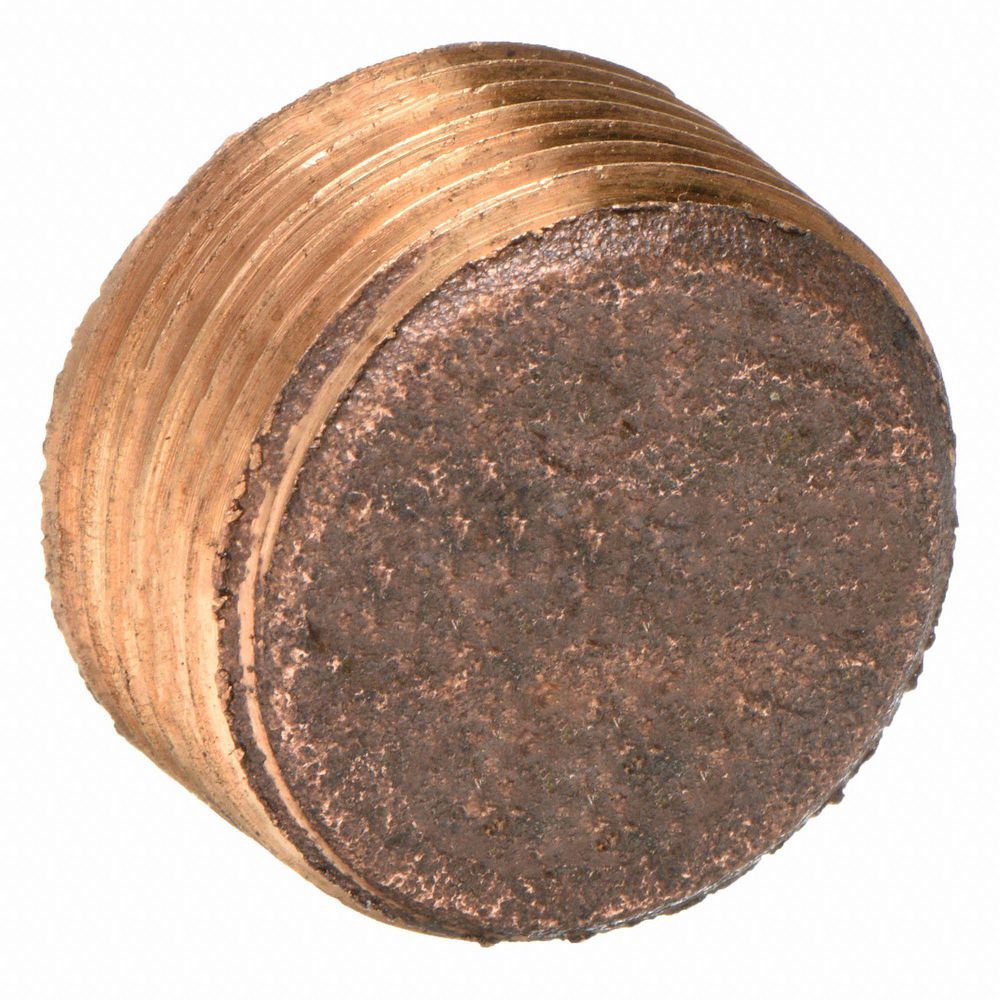

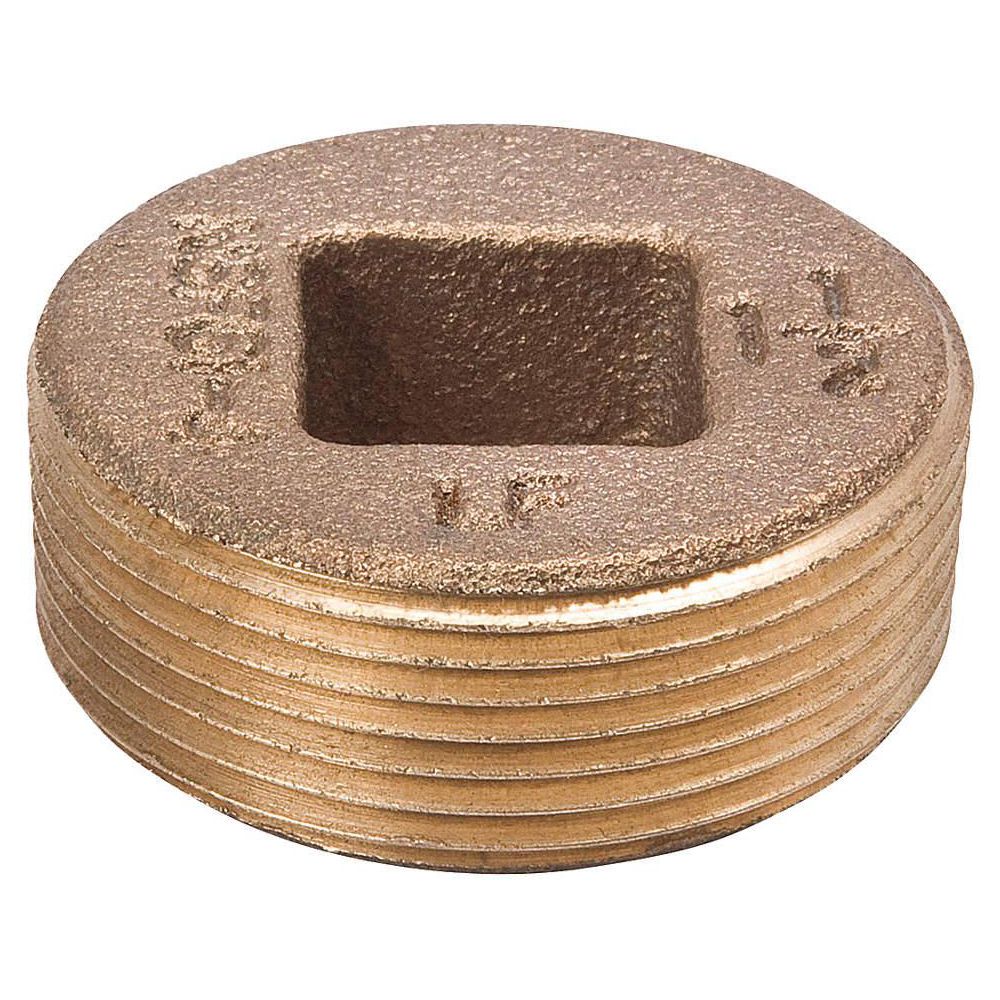

Countersink Plug: Brass, 1 1/2" Pipe Size, Male NPT, Class 125
Hover over image to magnify
#931896-1 | Pkg Qty: 1
$20.19 pkg | $20.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Fitting Material
Metal
Mfr. Part Number
22UL67
Basic Fitting Shape
Plug
Package Quantity
1
Brand
APPROVED SUPPLIER
Pipe Fitting Material
Brass
Item
Countersink Plug
Shipping Weight
.53 lb.
General
Class/Pressure
Class 125 125 psi
Nominal Pipe Size
1 1/2 in
Fitting Connection Type
Male NPT
Pipe Fitting Connection Type
Male NPT
Fitting Pipe Size
1 1/2 in
Pressure Level
Low Pressure (100-299 psi)
Includes Pre-Applied Thread Sealant
No
Standards
ANSI B 1.20.1, ASME B16.15, ASTM B62
Includes Seal
No
Temp. Range
-20 Degrees to 400 Degrees F
Low Lead Certified Standard
NSF61; AB1953
Threading
NPT
Low Lead Compliance Level
Certified
Product Description
Low-Lead Red Brass FittingsClass 125
- Max. pressure: 125 psi Temp. range: -20° to 400°F Resist corrosion from water, heat, saltwater, acids, minerals, and heavy soils. NPT connections. For use with air, water, natural gas, and steam in commercial and residential buildings. Material meets ASTM B584 standards. Dimensions for fittings meet ASME B16.15, for unions A-A-59617, and for flanges ASME B16.24. Threads meet ANSI B1.20.1 standards. NSF 61 Listed. Certified for use in potable water applications.
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Countersunk Plug,1-1/2 In,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 22UL67 | Countersunk Plug,1-1/2 |
 | UNSPSC CODES | 40173501 | |
 | VMRS (ATA) CODES | 053-006-009 | Countersunk Plug,1-1/2 |
