DBI-SALA

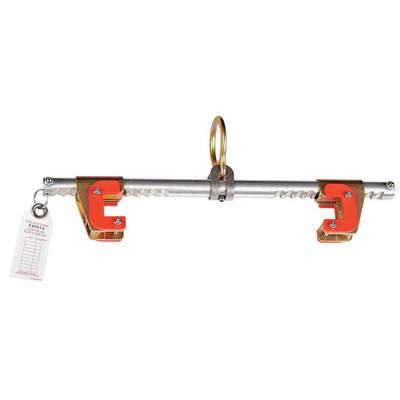

Dbi-Sala Sliding Beam Anchor, 310 lb. Weight Capacity, 14" Length, Aluminum, Stainless Steel

Hover over image to magnify
Sliding Beam Anchor,310 Lb.
Sliding Beam Anchor,310 Lb.

#931721 | Pkg Qty: 1

$219.16 pkg | $219.16 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
DBI-SALA
Package Quantity
1
Depth
1-1/4 in.
Ring Diameter
1 in.
Installation Method
Temporary
Shipping Weight
4.45 lb.
Item
Sliding Beam Anchor
Tensile Strength
5000 lb.
Length
14 in.
Weight Capacity
310 lb.
Material
Aluminum, Stainless Steel
Width
1 in.
Mfr. Part Number
2104703
General
Adjustment Style
Push Button
For Max. Flange Width
14 in
Anchor Installation
Reusable
For Min. Flange Width
3 1/2 in
Anchor Performance
Extended Life
Includes Mounting Hardware
No
Anchor Style
Pipe Clamp
Replaceable Wear Pad
Yes
Attachment Point
Fixed D-Ring
Ring Dia.
1 in
For Flange Width Range
3 1/2 in to 14 in
Sliding Mechanism
Nylon Wear Pads
For Max. Flange Thickness
0.25 in
Standards
ANSI Z359.18, OSHA 1910.140, OSHA 1926.502

Product Description

These sliding clamp anchors attach to structural steel and beams to create a moveable anchor point for a fall arrest device. Sometimes called gliding, trailing, or mobile beam anchors, sliding clamp anchors have two edges that adjust to fit a range of beam widths. They have wear pads, bearings, or materials that allow the anchor to slide along the length of the beam without having to be removed or adjusted, providing greater mobility for workers than fixed clamps. Sliding clamp anchors can be removed and reused in other locations. Anchors should always be inspected and replaced after being exposed to a fall.
