GROZ

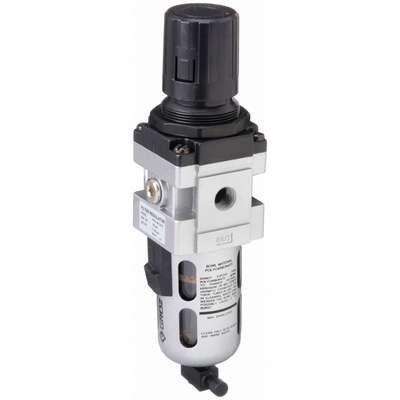

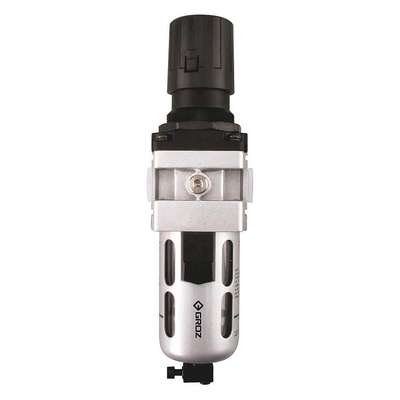

Filter-Regulator: 1/4 in NPT, 63 cfm, 40 micron, 7 psi to 145 psi, 145 psi Max Op Pressure

Hover over image to magnify
Filt-Reg,1/4"NPT,63 Cfm,40
Filt-Reg,1/4"NPT,63 Cfm,40

#931537-6 | Pkg Qty: 1

$66.99 pkg | $66.99 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
GROZ
Overall Height
8.66 in.
Item
Filter-Regulator
Package Quantity
1
Mfr. Part Number
FRC149134-S
Shipping Weight
1.5 lb.
General
Adjustment Location
Top
Filter Rating - Air Treatment
40 micron
Adjustment Mechanism
Knob
For Fluid Type
Compressed Air
Adjustment Mechanism Material
Acetal
For Removal Of
Dirt, Dust, Moisture
Adjustment Range
7 to 145 psi
For Substance Type
Air
Adjustment Range - Air Treatment
7 to 145 psi
Gauge Port Size
1/8 in
Air Flow Direction
Left to Right
Includes
(1) Filter-Regulator Combination
Air Inlet Gender
Female
Max. Flow - Air Treatment
63 cfm
Air Inlet Type
NPT
Max. Flow Range - Air Treatment
61 to 70 cfm
Air Outlet Gender
Female
Max. Incoming Pressure - Air Treatment
145 psi
Air Outlet Size
1/4 in
Maximum Flow @ 100 psi
63 cfm
Air Outlet Type
NPT
Maximum Regulated Pressure
145 psi
Bowl Material - Air Treatment
Polycarbonate with Guard
Minimum Regulated Pressure
7 psi
Bowl Size - Air Treatment
1.0 oz
Modular Connection
Modular Connection
Connection Size - Air Treatment
1/4 in NPT
Pressure Drop
17 psi
Drain Part Compatibility
SC2004
Pressure Gauge Port Gender
Female
Filter Bowl Capacity
1.08 oz
Pressure Gauge Port Size
1/8 in
Filter Bowl Guard Included
Yes
Pressure Gauge Port Type
NPT
Filter Bowl Guard Material
Steel
Regulator Type
Relieving
Filter Bowl Material
Plastic
Size - Air Treatment
Intermediate
Filter Element Material
Bronze
System Location
Air Line

Product Description

Air filter and air regulator all in a single unit. Features a nighttime drain that automatically operates once the main air line is switched off. The built-in bronze filter can be easily cleaned and offers long service life.
