ACTION PUMP

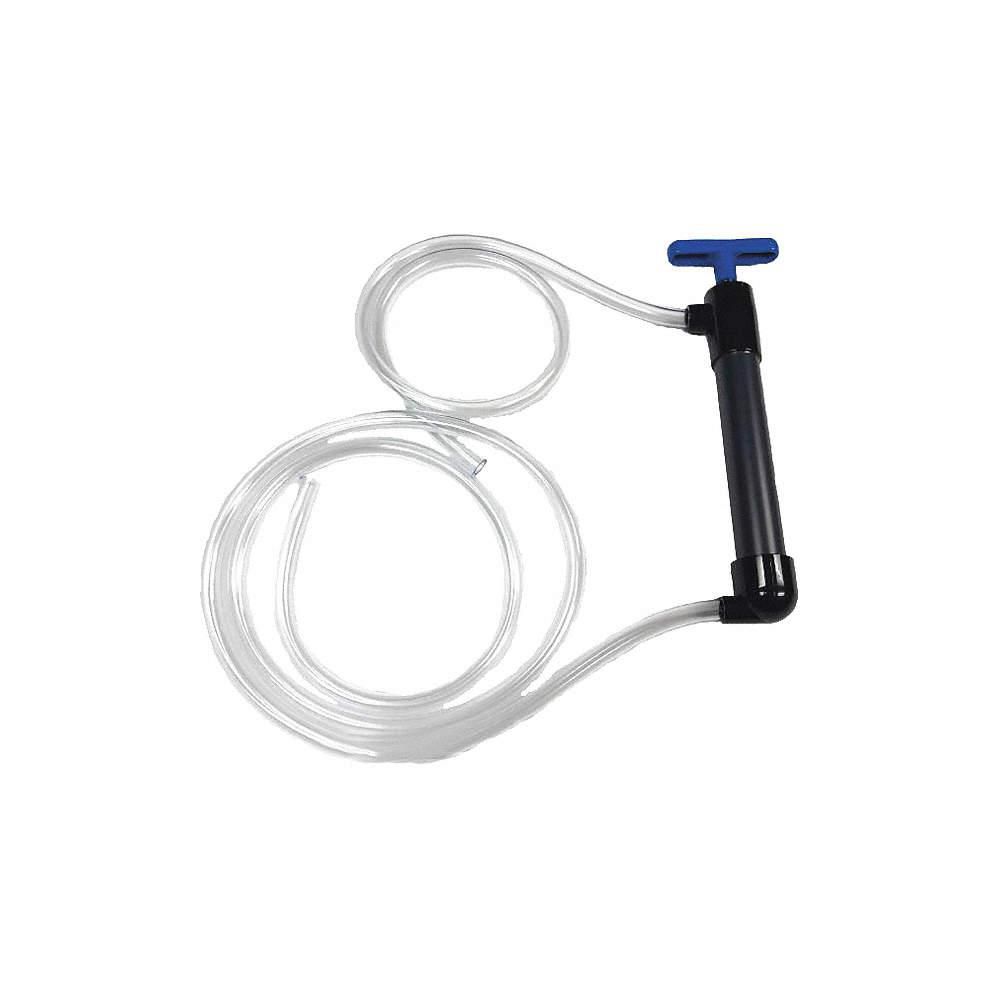

Hand Operated Drum Pump, Siphon, Basic Pump with Discharge Hose, Max. Head - Pumps 3 ft
Hover over image to magnify
#931494-5 | Pkg Qty: 1
$50.92 pkg | $50.92 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action Type
Siphon
Metered
No
Agency Compliance
ISO 22241-3
Mfr. Part Number
ACT2874
Brand
ACTION PUMP
Mfr. Warranty Length
90 Days
Diameter
1/2"
Ounces per Stroke
4 oz.
Discharge Tube Length
60"
Outlet Size
1/2"
Discharge Tube Outlet ID Size
3/8"
Pack Quantity
1
Discharge Tube Outlet Outside Diameter
5/8"
Piston Material
PVC
Discharge Tubing Material
PVC
Power Source
Hand Operated
Food Grade
No
Seal Material
PVC
GPM
3
Self-Priming
Yes
Hand Operated Pump Action Type
Hand Operated Siphon Pumps
Shipping Weight
.96 lb.
Hose Length
72 in.
Spout Length
36 in.
Hose Material
PVC
Spout Material
PVC
Housing Material
PVC
Suction Tube Length
60 in.
Inlet Size
1/2"
Suction Tube Type
Hose
Item
Hand Operated Drum Pump
Wetted Materials
PVC
General
Compatible Chemicals
Ammonia (Liquids), Ammonium Hydroxide, Antifreeze (Coolant), Chromic Acid 30%, Chromic Acid 5%, DEF, Deionized Water, Diesel Fuel, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Fungicides, Glycerin, Herbicides, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Methyl (Methanol), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Paint, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid
Includes Nozzle
No
Diesel Exhaust Fluid Compatible
Yes
Includes Spout
Yes
Discharge Tube Outlet ID
3/8 in
Includes Suction Tube
Yes
Discharge Tube Outlet OD
5/8 in
Max. Flow Rate
4 oz per stroke
Features
Good Chemical Resistance
Max. Fluid Temp.
115 Degrees F
For Container Size
15 gal, 30 gal, 55 gal
Max. Head - Pumps
3 ft
For Container Type
Bucket, Drum, Pail
Max. Head Pressure
3 psi
For Media Type
Ammonia, Ammonium Hydroxide, Antifreeze, Bleach, Chromic Acid, DEF, Diesel Fuel, Ethylene Glycol, Fertilizers, Formaldehyde, Formic Acid, Fungicides, Glycerin, Herbicides, Hydraulic Oil, Hydrochloric Acid, Methanol, Motor Oil, Naphtha, Nitric Acid, Paint, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Water, Windshield Washer Fluid
Max. Outlet Pressure
5 psi
For Use With
Antifreeze, Chlorines, Degreasers, Floor Cleaners, Glass Cleaners, Kerosene, Mild Acids, Other Fluids
Max. Viscosity
1,000 SUS
Hose Cover Material
PVC
Min. Operating Temp.
35 Degrees F
Hose Inside Dia.
3/8 in
Not Recommended Chemicals
Acetone, Anhydrous Ammonia, Brake Fluid, Ethyl Acetate, Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Lacquer Thinners, Lithium Grease, Paint Thinner, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Hose Outside Dia.
37/64 in
Pump Package Type
Basic Pump with Discharge Hose
Hose Tube Material
PVC
Runs Dry
Yes
Housing Material - Pumps
PVC
Spout Connection Size
1/2 in
Includes
Intake and Discharge Hose Included
Suction Tube ID
3/8 in
Includes Bung Adapter
No
Suction Tube Material
PVC
Includes Discharge Hose
Yes
Suction Tube OD
37/64 in
Product Description
Acid, base, and solvent hand drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations. They are used to dispense and transfer small volumes of substances and solutions in laboratories and chemical processing plants.
