DEWALT

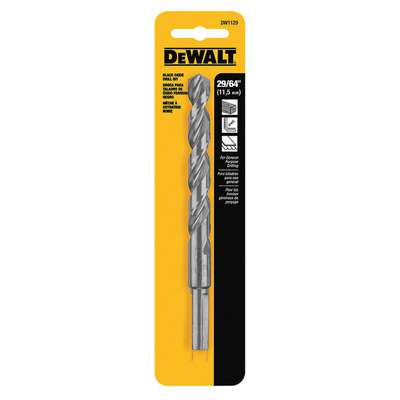

Dewalt Hex Shank Drill Bit, 29/64", Drill Bit Point Angle 135, Drill Bit Point Type Split Point
#931415-6Pkg Qty: 1
$13.83 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DEWALT
Cutting Direction
Right
Drill Bit Dimension Type
Fractional Inch
Drill Bit Material
High Speed Steel
Drill Bit Point Angle
135 deg.
Drill Bit Size
29/64 in.
Finish
Black Oxide
Flute Length
4-19/100 in.
Flute Type
Spiral
Impact Rated
No
Item
Hex Shank Drill Bit
Maximum Drilling Depth
5-3/4 in.
Mfr. Part Number
DW1129
Overall Length
5-3/4 in.
Package Quantity
1
Shank Shape
Round
Shipping Weight
.17 lb.
Brand
DEWALT
Impact Rated
No
Cutting Direction
Right
Item
Hex Shank Drill Bit
Drill Bit Dimension Type
Fractional Inch
Maximum Drilling Depth
5-3/4 in.
Drill Bit Material
High Speed Steel
Mfr. Part Number
DW1129
Drill Bit Point Angle
135 deg.
Overall Length
5-3/4 in.
Drill Bit Size
29/64 in.
Package Quantity
1
Finish
Black Oxide
Shank Shape
Round
Flute Length
4-19/100 in.
Shipping Weight
.17 lb.
Flute Type
Spiral
General
Coolant Fed
Non-Coolant Through
Decimal Equivalent
0.4531 in.
Depth:Dia. Ratio
9xD
Drill Bit Finish
Black Oxide
Drill Bit Grouping
Individual
Drill Bit Point Type
Split Point
Drill Length Class
Jobber Length
Shank Type - Machining
Straight
Web Construction
Tapered
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Split Point
Decimal Equivalent
0.4531 in.
Drill Length Class
Jobber Length
Depth:Dia. Ratio
9xD
Shank Type - Machining
Straight
Drill Bit Finish
Black Oxide
Web Construction
Tapered
Drill Bit Grouping
Individual
Product Description
These drill bits come in standard sizes expressed in fractional inches. They have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. The bits' spiral flutes evacuate chips as the bits drill into a workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.
Item Barcode
Split Point Drill Bit,29/64",
