CLEVELAND

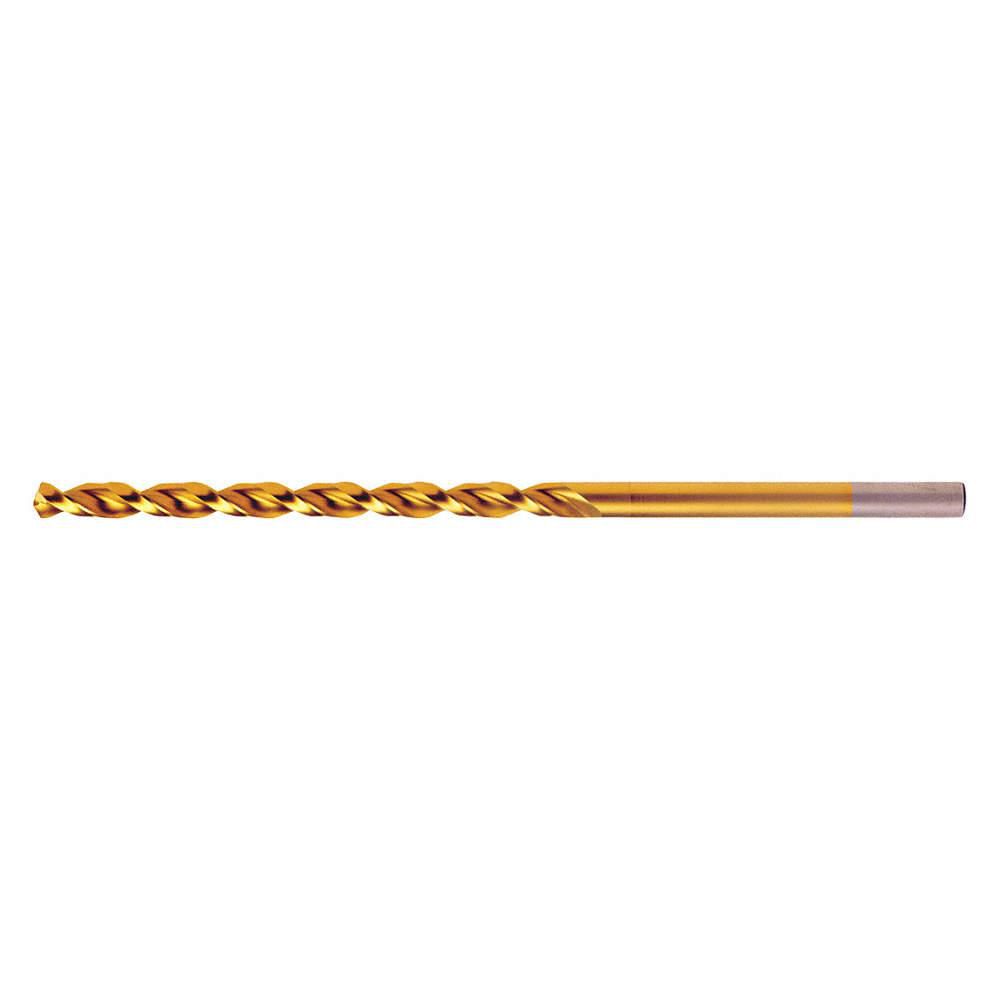

Taper Length Drill Bit, Drill Bit Size 5/64", Drill Bit Point Angle 135 °, Split Point, Cobalt

Hover over image to magnify
Drill Bit,Cobalt Steel,Tin,
Drill Bit,Cobalt Steel,Tin,
Taper Length Drill Bit, Drill Bit Size 5/64", Drill Bit Point Angle 135 °, Split Point, Cobalt Video

#931370-2 | Pkg Qty: 10

$247.20 pkg | $24.72 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CLEVELAND
Helix Angle
35 deg./45 deg.
Coolant Through
No
Item
Taper Length Drill Bit
Cutting Direction
Right
List Number
2575-TN
Cutting Direction
Right Hand
Maximum Drilling Depth
2 in.
Decimal Equivalent
0.0781
Mfr. Part Number
C16886
Depth x Diameter Ratio
1-3/4 in.
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Overall Length
3-3/4 in.
Drill Bit Finish
TiN
Pack Quantity
10
Drill Bit Material
Cobalt Steel
Point Type
Split
Drill Bit Point Angle
135 deg.
Series
2575-TN
Drill Bit Size
5/64 in.
Shank Length
1-3/4 in.
Drill Point Length
0.0162 in.
Shank Type
Straight
Flute Length
2 in.
Shipping Weight
0 lb.
Flute Type
Parabolic
Sizes Included
5/64 in.
Grade
High Performance
Spiral Direction
Right Hand
General
Application
For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy
Material - Machining
Cobalt
Coolant Fed
Non-Coolant Through
Material Grade - Machining
M42
Depth:Dia. Ratio
10xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, M, P
Drill Bit Point Type
Split Point
Shank Dia.
5/64 in
Drill Diameter Tolerance
+0.0000 in /-0.0005 in
Shank Type - Machining
Straight
Drill Length Class
Taper Length
Standards
ASME B94.11M-1993
Finish - Machining
TiN

Product Description

The TiN coating on these drill bits protects them from wear and heat when drilling steel, stainless steel, and aluminum. Cobalt drill bits tolerate higher drilling speeds and are harder and more wear-resistant than high-speed steel drill bits. They provide some shock absorption and can be used in handheld power tools. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece.

Item Barcode
9313702
