SQUARE D

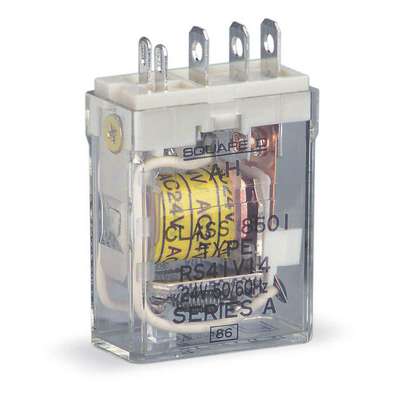

Square D 24VDC Coil Volts, General Purpose Relay, 15A @ 120V, 12A @ 240VAC/15A @ 28VDC Contact Rating, Square

Hover over image to magnify

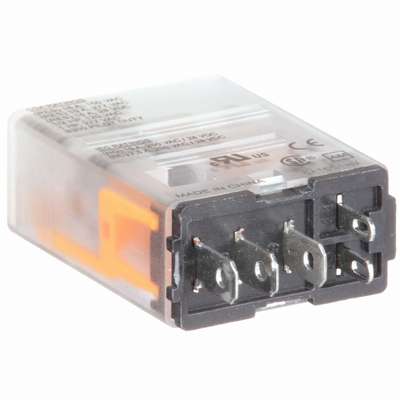

Gen Purpose Relay,5 Pin,Square,
PI_Asset_1769479
Gen Purpose Relay,5 Pin,Square,
PI_Asset_1769479

#930911-1 | Pkg Qty: 1

$64.44 pkg | $64.44 ea

Technical Specifications

Key Specifications
Base Type
Square
Mfr. Part Number
8501RSD41V53
Brand
SQUARE D
Mounting
Side
Coil VA Rating
0.7
Number of Poles
1
Coil Volts
24 VDC
Pack Quantity
1
Contact Form
SPDT
Pins
5
Contact Material
Silver Cadmium Oxide
Plug-In Relay Style
General Purpose
Contact Rating
15A @ 120 VAC/28 VDC, 12A @ 240 VAC
Push To Test
No
Features
Spade Terminals, Standard Relay
Socket
Mfr. No. 8501NR41
HP @ 120 V
Not Rated
Socket Code
L
HP @ 240 V
Not Rated
Standards
CE Marked, CSA Certified
Item
General Purpose Relay
Status Indicator
No
General
AC Contact Rating - Relay
12A @ 240V, 15A @ 120V
HP @ 120V
Not Rated
Base Type - Plug In Relay
Square
HP @ 240V
Not Rated
Body Depth - Relay
1.07 in
Mounting - Relay
Plug In
Body Height - Relay
1.37 in
Number of Pins - Relay
5
Body Width - Relay
0.55 in
Overall Height - Relay
1.65 in
Contact Form - Relay
SPDT
Power Consumption - Relay
1.1 W
DC Contact Rating - Relay
15A @ 28V
Socket Code - Relay
L

Product Description

General Purpose Relay, Coil Volts 24V DC, AC Contact Rating - Relay 12A @ 240V, 15A @ 120V, DC Contact Rating - Relay 15A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 5, Contact Form - Relay SPDT, Mounting - Relay Plug In, Socket Code - Relay L, Power Consumption - Relay 1.1 W, Contact Material Silver Cadmium Oxide, Status Indicator No, Push To Test No

Item Barcode
9309111
Gen Purpose Relay,5 Pin,Square,
  Name Item Description
Grainger Dropship Grainger Dropship 2DW73 Gen Purpose Relay,5 Pin,
UNSPSC CODES UNSPSC CODES 39122325
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Gen Purpose Relay,5 Pin,
