PATTERSON

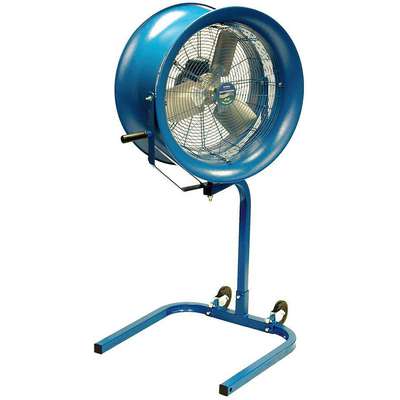

Patterson High-Velocity Industrial Fan: 18 in Blade Dia, 1 Speeds, 3,800 cfm, 115/208-230 V AC

Hover over image to magnify
Hgh Vlcty Indstrl Fan,18" Blde
Hgh Vlcty Indstrl Fan,18" Blde

#930732-7 | Pkg Qty: 1

$1,331.79 pkg | $1,331.79 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Flow
3,800 CFM
NEMA Plug Configuration
5-15P
Amps
6.0/3.0-2.9
Number of Blades
3
Blade Diameter
18 in.
Number of Conductors
3
Brand
PATTERSON
Number of Speeds
1
Depth
16 in.
Package Quantity
1
Drive Type
Direct
Phase
1
Hz
60
RPM
1725
Item
High-Velocity Industrial Fan
Shipping Weight
81.74 lb.
Mfr. Part Number
7J728
Voltage
115/208-230 VAC
Motor Enclosure
Totally Enclosed Air Over
Watts
370
Motor Type
Permanent Split Capacitor
General
Air Velocity @ 20 Ft.
475 fpm
Includes
Mobile Tilting Pedestal
Air Velocity @ 40 Ft.
350 fpm
Max. Ambient Temp.
105 Degrees F
Air Velocity @ 60 Ft.
250 fpm
Oscillation
Non-Oscillating
Air Velocity @ 80 Ft.
175 fpm
Shaft Dia.
5/8 in
Assembly Required
Yes
Standards
OSHA compliant wire guards
Environmental Applications
Industrial
Wheeled Base
Mobile
Fan Housing Material
Polypropylene
Wire Guard Finish
Blue Powder Coated
Fan Mounting Location
Floor, Mobile

Product Description

High-velocity industrial mobile and stationary floor fans have a high-rpm motor and a tubular housing for pushing air at higher speeds over longer distances than fans with a standard open-housing design. They provide more coverage than a typical industrial fan for cooling long aisles and large areas in warehouses and manufacturing plants. These air circulators have a totally enclosed motor to keep out water and debris.

Industrial mobile and stationary floor fans sit close to the ground to resist tipping over, even when bumped, while providing a powerful stream of air at floor level. These air circulators are often used for spot cooling workstations or production lines and for general cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact. Mobile floor fans have wheels, so they can be rolled from one location to another as cooling needs change. Stationary floor fans are used in applications where fans don't need to be frequently relocated, but they are generally light enough to carry between locations.
