DART CONTROLS

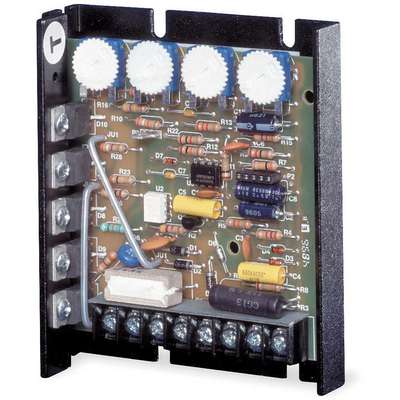

Dart Controls DC Speed Control,Chassis,100/200V DC Shunt Wound Volts,0 to 90/180V DC Voltage Output,5 A Max. Amps
Hover over image to magnify
#930711 | Pkg Qty: 1
$135.61 pkg | $135.61 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
cULus Recognized and CE Certified
Output
90180 VDC
Brand
DART CONTROLS
Overall Depth
1.3 in.
Depth
1.3 in.
Overall Height
4-1/4 in.
Enclosure
Chassis
Overall Width
3.63 in.
Enclosure Type
Open
Pack Quantity
1
Height
4-1/4 in.
Provides
Superior Wide Range Adjustable Speed Control
Input Voltage
115/230 VAC
Rotation
Single Direction
Item
DC Speed Control
Series
Series 125
Maximum Current
5.5 A
Shipping Weight
.7 lb.
Mfr. Part Number
125DV-C-K
Voltage Output
0 to 90/180 VDC
Mount Type
Chassis
Width
3.63 in.
Operating Temperature
-10 to 45 C
General
AC Input Voltage
120/240V AC
Linear Acceleration
Fixed 6 sec
Accepts Tach Feedback
Yes
Linear Deceleration
Fixed 6 sec
Current/Torque Limit
Adjustable
Lower Voltage Motor Output Power
1/8 to 1/2 hp
DC Speed Control
SCR
Maximum Linear Acceleration
6 sec
Dynamic Braking
No
Maximum Linear Deceleration
6 sec
External Switches
None
Operates On
50/60 Hertz at +/-10 Percentage Rated Line Voltage
Follower Circuit
No
Operating Temp.
-10° to 45°C
For Use With
Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
Protection Type
Fuse (Not Included)
HP
1/8 to 1/2 @ 90 VDC, 1/4 to 1 @ 180 VDC
SCR DC Speed Controls
SCR
HP @ Higher Volts
1/4 to 1
Shunt Wound Voltage
100/200V DC
HP @ Lower Volts
1/8 to 1/2
Shunt Wound Volts
100/200V DC
Higher Voltage Motor Output Power
1/4 to 1 hp
Speed Range
50:1
IR Compensation
Adjustable
Speed Regulation
+/-0.5% with Tach Feedback, +/-1% with Armature Voltage Feedback
Includes
Speed Potentiometer Knob and Dial Plate
Standards
cULus Recognized and CE Certified
Product Description
This DC speed control device provides superior wide-range adjustable speed control, and helps regulate motor speed with adjustable acceleration and deceleration.
Item Barcode
Dc Speed Control,90/180VDC,5A
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2M510 | DC Speed Control,90/ |
 | UNSPSC CODES | 39122214 | |
 | VMRS (ATA) CODES | 053-006-009 | DC Speed Control,90/ |
