Home All Products Electrical Motors Motor Supplies Capacitors SKU: 930430-4
TITAN HD

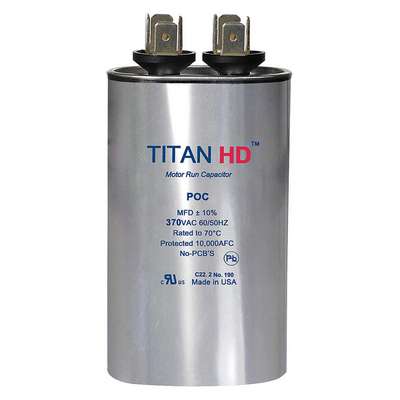

Titan Hd Oval Motor Run Capacitor,7.5 Microfarad Rating,370VAC Voltage

Hover over image to magnify
Motor Run Capacitor,7.5 Mfd,
Motor Run Capacitor,7.5 Mfd,

#930430-4 | Pkg Qty: 1

$7.65 pkg | $7.65 ea

Technical Specifications

Key Specifications
Brand
TITAN HD
Number of Terminals
2
Capacitor Shape
Oval
Overall Depth
1-1/4 in.
Case Height
1-9/16 in.
Overall Height
2-1/16 in.
Case Material
Aluminum
Overall Width
2 in.
Connection Type
Quick Connect
Pack Quantity
1
Construction
Aluminum Case with Steel Cover
Shape
Oval
Cover Material
Steel
Standards
E136401, RoHS Compliant, IEC 60252
For Use With
Electric Motors
Temperature Range
-40 C to 70 C
Hz
60/50
Terminals
1/4 in. Male
Item
Motor Run Capacitor
Voltage
370 VAC
Number of Pieces
1
General
Capacitor Voltage
370V AC
Motor Capacitor Type
Motor Run Capacitor
EIA Tolerance Code
A
Temp. Range
-40° to 70°C
EIA UL Base
A
Terminal Designations
Standard
Microfarad Rating
7.5
Terminal Gender
Male
Min. Temperature
-40 °C
Terminal Tab Width
1/4 in

Product Description

Motor Run Capacitor, 7.5 Microfarad Rating, 370V AC Capacitor Voltage, 60/50 Hz, Oval Capacitor Shape, 1 9/16 in Case Height, 2 1/16 in Overall Height, 2 in Overall Width, 1 1/4 in Overall Depth, EIA UL Base A, Terminal Type 1/4 in Male Quick-Connect, -40 Degrees to 70 Degrees C Temp. Range, Case Material Aluminum, Cover Material Steel, Standards E136401, RoHS Compliant, IEC 60252

Item Barcode
9304304
Motor Run Capacitor,7.5 Mfd,
  Name Item Description
Grainger Dropship Grainger Dropship 20UD27 Motor Run Capacitor,7.
UNSPSC CODES UNSPSC CODES 32121501
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Motor Run Capacitor,7.
