OMRON

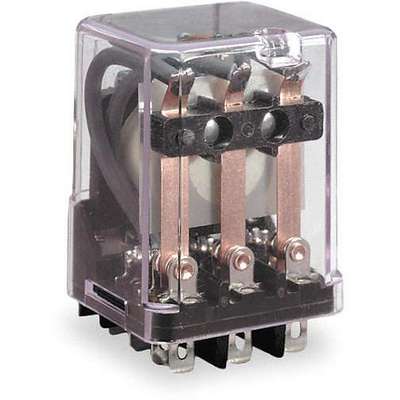

Omron 24V DC, 11-Pin Flange Mount Relay; Flange Location: Side, AC Contact Rating: 10A @ 240V
#930178-7Pkg Qty: 1
$36.69 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 240 V
Base Type
Square
Body Depth
1.4 in.
Body Height
1.9 in.
Body Width
1.53 in.
Brand
OMRON
Coil Volts
24 VDC
Contact Form
3PDT
Contact Material
Silver Alloy
Contact Rating
10A @ 240 VAC/28 VDC
Electrical Connection
0.187 in. Solder Terminals
Item
Flange Mount Relay
Mfr. Part Number
MJN3CF-DC24
Mounting
Side
Number of Pins
11
Number of Poles
3
Package Quantity
1
Shipping Weight
.5 lb.
Type
Flange Mount
AC Contact Rating
10 A @ 240 V
Electrical Connection
0.187 in. Solder Terminals
Base Type
Square
Item
Flange Mount Relay
Body Depth
1.4 in.
Mfr. Part Number
MJN3CF-DC24
Body Height
1.9 in.
Mounting
Side
Body Width
1.53 in.
Number of Pins
11
Brand
OMRON
Number of Poles
3
Coil Volts
24 VDC
Package Quantity
1
Contact Form
3PDT
Shipping Weight
.5 lb.
Contact Material
Silver Alloy
Type
Flange Mount
Contact Rating
10A @ 240 VAC/28 VDC
General
AC Contact Rating - Relay
10A @ 240V
Body Depth - Relay
1.4 in
Body Height - Relay
1.9 in
Body Width - Relay
1.53 in
Coil VA Rating
1.2
DC Contact Rating - Relay
10A @ 28V
HP @ 120 V
1/3 hp
HP @ 240 V
1/2 hp
Mounting - Relay
Side Flange
Overall Height - Relay
2.9 in
Power Consumption - Relay
1.2 W
Status Indicator
No
AC Contact Rating - Relay
10A @ 240V
HP @ 120 V
1/3 hp
Body Depth - Relay
1.4 in
HP @ 240 V
1/2 hp
Body Height - Relay
1.9 in
Mounting - Relay
Side Flange
Body Width - Relay
1.53 in
Overall Height - Relay
2.9 in
Coil VA Rating
1.2
Power Consumption - Relay
1.2 W
DC Contact Rating - Relay
10A @ 28V
Status Indicator
No
Product Description
Flange Mount Relay, Coil Volts 24V DC, AC Contact Rating - Relay 10A @ 240V, DC Contact Rating - Relay 10A @ 28V, Number of Pins - Relay 11, Contact Form - Relay 3PDT, Mounting - Relay Side Flange, Power Consumption - Relay 1.2 W, Contact Material Silver Alloy, Status Indicator No, Electrical Connection 0.187 in Solder Terminals
Item Barcode
Flange Relay,24VDC,11 Pins,10A
