HUBBELL LIGHTING - COLUMBIA

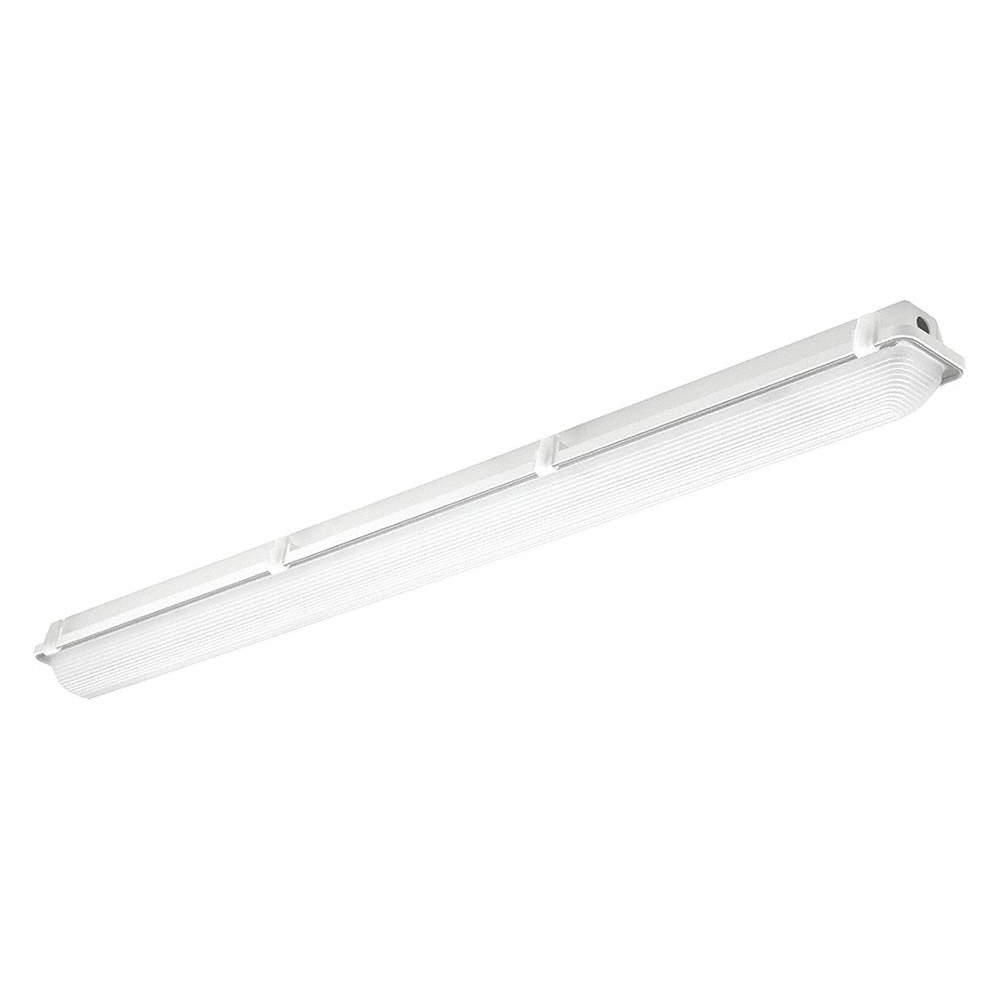

Hubbell Lighting LED Surface Mount Fixture, Lighting Technology LED, Nominal Length 51-3/4", Nominal Width 4"

Hover over image to magnify
Wet Location Fixture,Linear,
Wet Location Fixture,Linear,

#930172-7 | Pkg Qty: 1

$231.76 pkg | $231.76 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Ballast Type
No Ballast Required
Lens Material
Acrylic
Brand
HUBBELL LIGHTING - COLUMBIA
Lens Type
Ribbed
Color Rendering Index
80
Light Technology
LED
Color Temperature
4000 K
Lumens
4195 lm
Dimming
Yes
Lumens Range
4000 to 5999 lm
Finish
Enamel
Mfr. Part Number
LXEN4-40LW-RFA-EDU
Height
3-7/8 in.
Mounting
Ceiling
Housing Color
White
Nominal Length
4 ft.
Housing Finish
White
Overall Height
1/8 in.
Housing Material
Fiberglass
Pack Quantity
1
IP Rating
65, 66, 67
Shipping Weight
9.4 lb.
Item
LED Wet Location Fixture
Voltage
120 to 277 V
Length
51-3/4 in.
Width
4 in.
General
Ambient Temp. Range
-20 Degrees to 25 Degrees C
LED Replacement For
2 Lamp T8
Ballast Start Type
No Ballast
Lens Shape
Curved
Bulb Included
Yes
Lighting Certification
DLC 5.0
Dimmable
Yes
Linkable
No
Dimming Method
0-10V
Linkable Up To
Unlinkable
Emergency Battery Backup
No
Lumens per Watt
123 lm/W
Fixture Ballast Type
No Ballast Required
Max. Fixture Wattage
33.8 W
Fixture Type
Strip Light
Overall Length
51 3/4 in
For Bulb Type
Integrated LED
Overall Width
3/8 in
Green Certification/Other Recognition
DesignLights Consortium (DLC)® Listed
Rated Life
60000 hr
Green Environmental
Product Contributes To Reducing Energy Consumption
Standards
CSA Certified, NSF Certified, UL 2108 Listed, UL 1598 Listed
Includes
Surface Mounting Bracket

Product Description

Washdown fixtures illuminate grimy environments and other areas where equipment is regularly sprayed down to clean off dirt and debris. Sometimes called water-tight or waterproof fixtures, they carry an IP rating indicating the level of protection they provide against liquids. Fixtures that are NSF listed Zone 2 (Splash Zone) are commonly used in commercial kitchens, dishwashing areas, and food processing facilities.

Item Barcode
9301727
