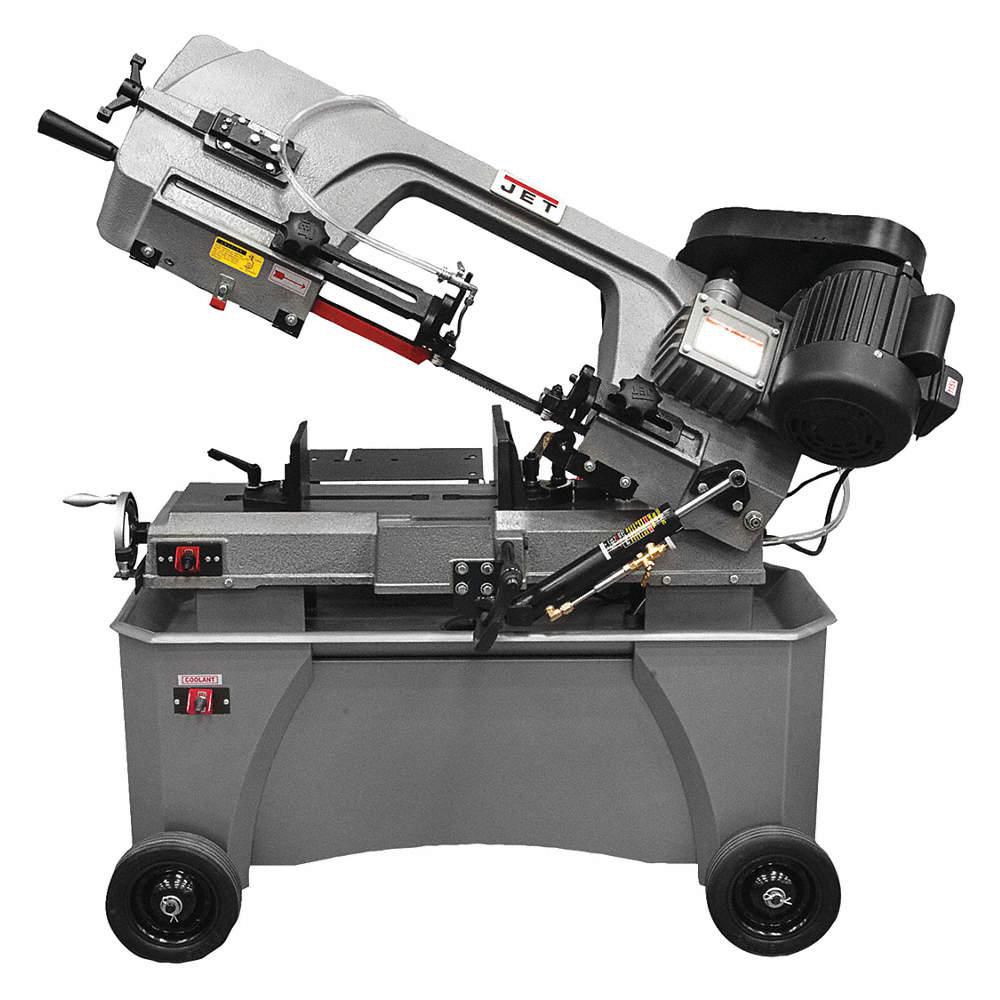

JET 414560 Horizontal/Vertical Combo, Stationary Band Saw; 93 in. Blade Length, 4 Speeds

Hover over image to magnify
Horizontal/Vertical Bandsaw,
PI_Asset_1758297
PI_Asset_1760660
PI_Asset_1772210
PI_Asset_1773826
PI_Asset_1774994
PI_Asset_1774995
PI_Asset_1774996
PI_Asset_1774997
PI_Asset_1774998
Horizontal/Vertical Bandsaw,
PI_Asset_1758297
PI_Asset_1760660
PI_Asset_1772210
PI_Asset_1773826
PI_Asset_1774994
PI_Asset_1774995
PI_Asset_1774996
PI_Asset_1774997
PI_Asset_1774998

#930164-4 | Pkg Qty: 1

$2,164.29 pkg | $2,164.29 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Blade Length
93 in.
Operation
Manual
Blade Thickness
0.032 in.
Orientation
Horizontal/Vertical Combo
Brand
JET
Overall Depth
48 in.
Current Rating
9.8/4.9 A
Overall Height
44 in.
Horsepower
0.75 HP
Overall Width
17 in.
Hz
60 Hz
Package Quantity
1
Item
Stationary Band Saw
Phase
1
Material Application
Metal
Shipping Weight
382 lb.
Mfr. Part Number
414560
Voltage
115/230 VAC
Number of Speed Settings
4
General
Band Saw Operation
Manual
Max. Blade Width
3/4 in
Band Saw Type
Combination Horizontal/Vertical
Miter Angle Range
45 Degrees , 90 Degrees
Blade Wheels Dia.
11.75 in
Rectangular Cutting Capacity - Horizontal
4 in x 11 in, 7 in x 10 1/4 in
Current
9.8/4.9 A
Round Cutting Capacity - Horizontal
7 in
Cutting Capacity Square
7 in
SFPM Range
86 to 260
HP
0.75 hp
Table Dimensions
12 in x 12 in
Includes
Bi-Metal Blade
Throat Depth - Vertical
7 in
Max. Blade Length
93 in

Product Description

Manual combination vertical and horizontal band saws are manually operated in both the vertical and horizontal position. When the saw is in the vertical position, the workpiece rests on a table while the operator pushes the material through the blade. When the saw is in the horizontal position, the workpiece is clamped to a table and the saw head is lowered to make the cut. Manually operated saws are used in low-volume machine and maintenance shops when similar materials and cuts are made.
