SCHNEIDER ELECTRIC

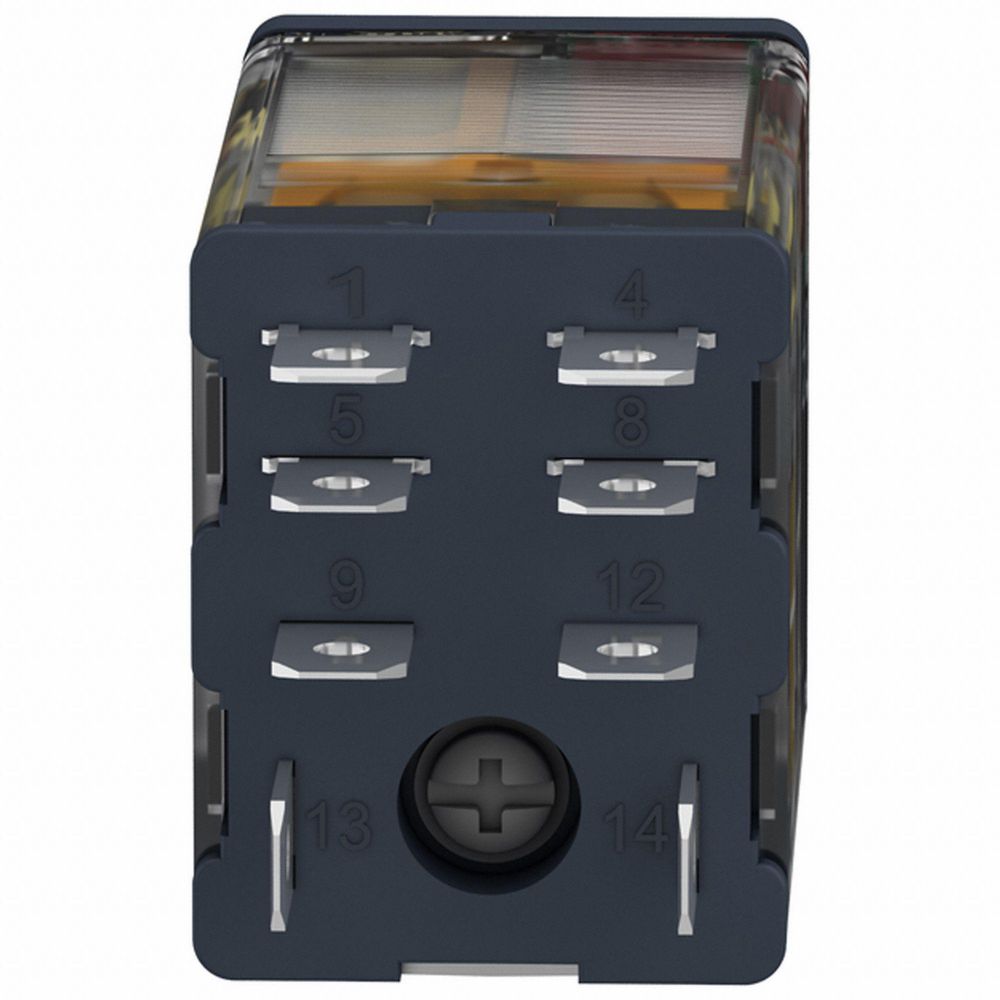

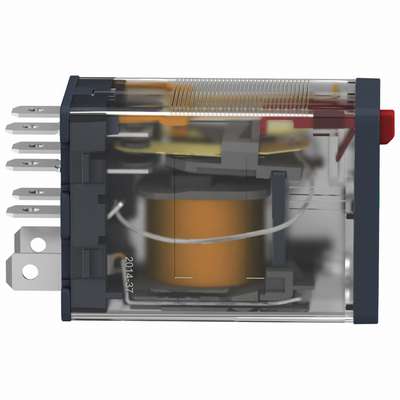

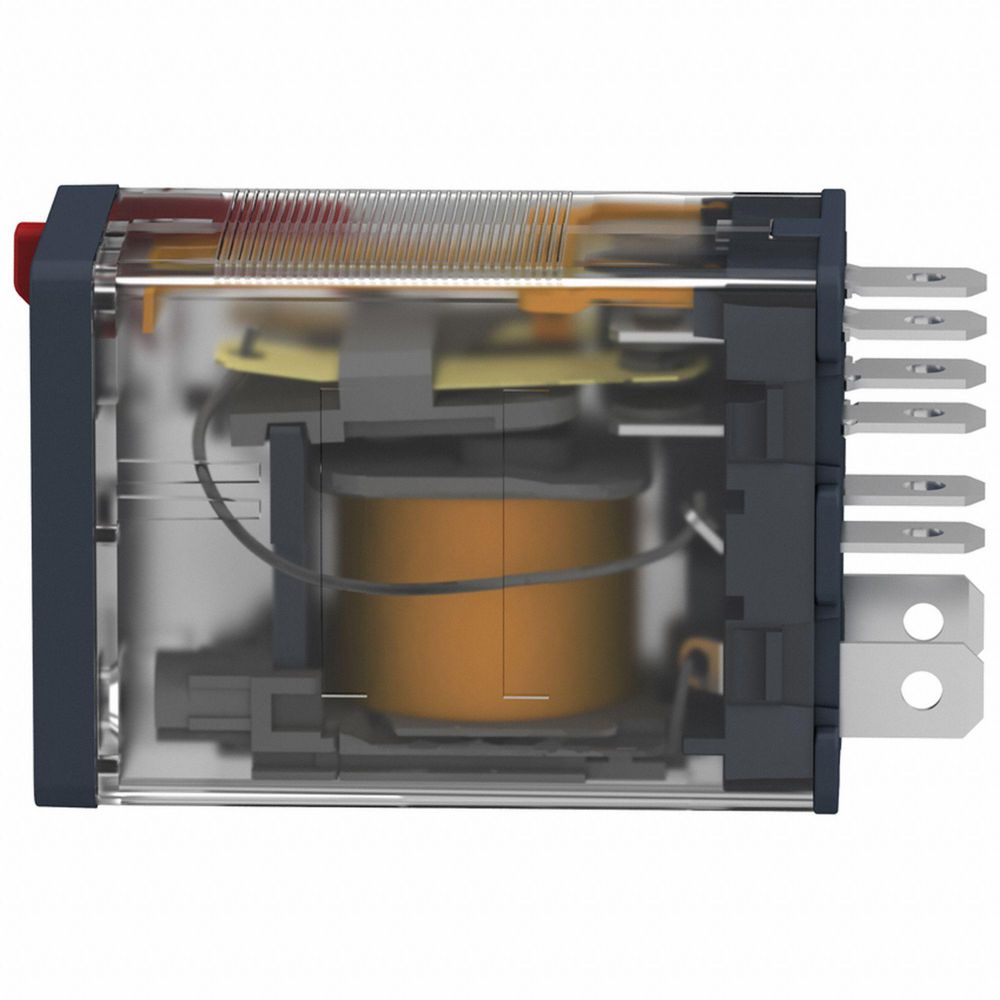

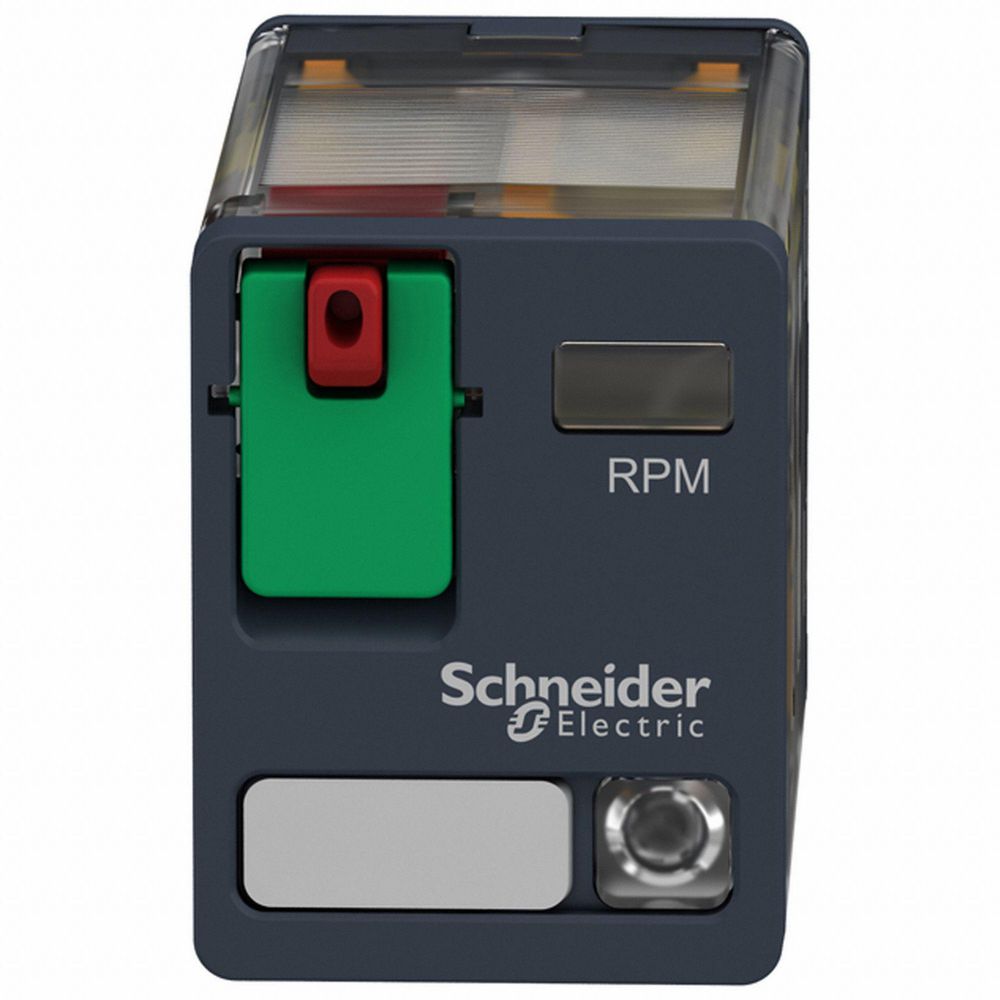

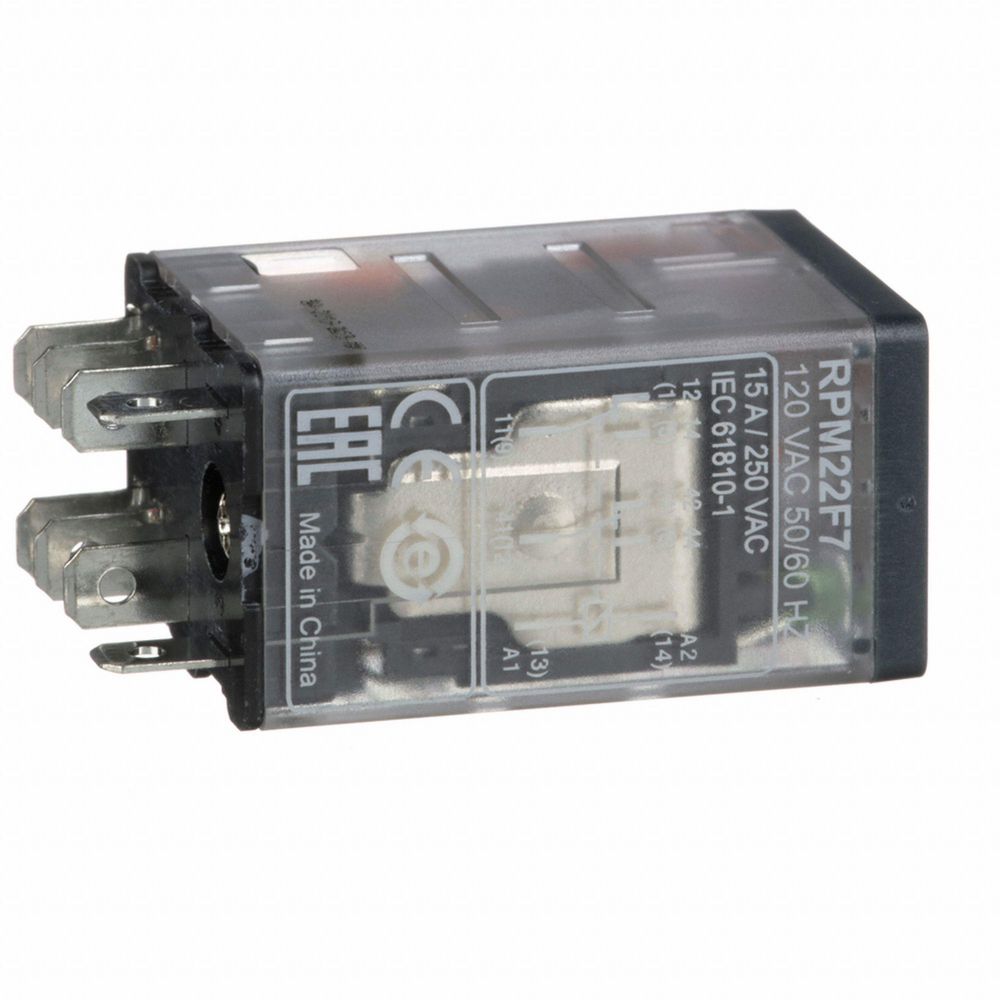

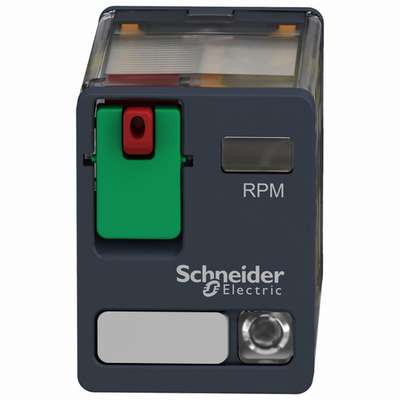

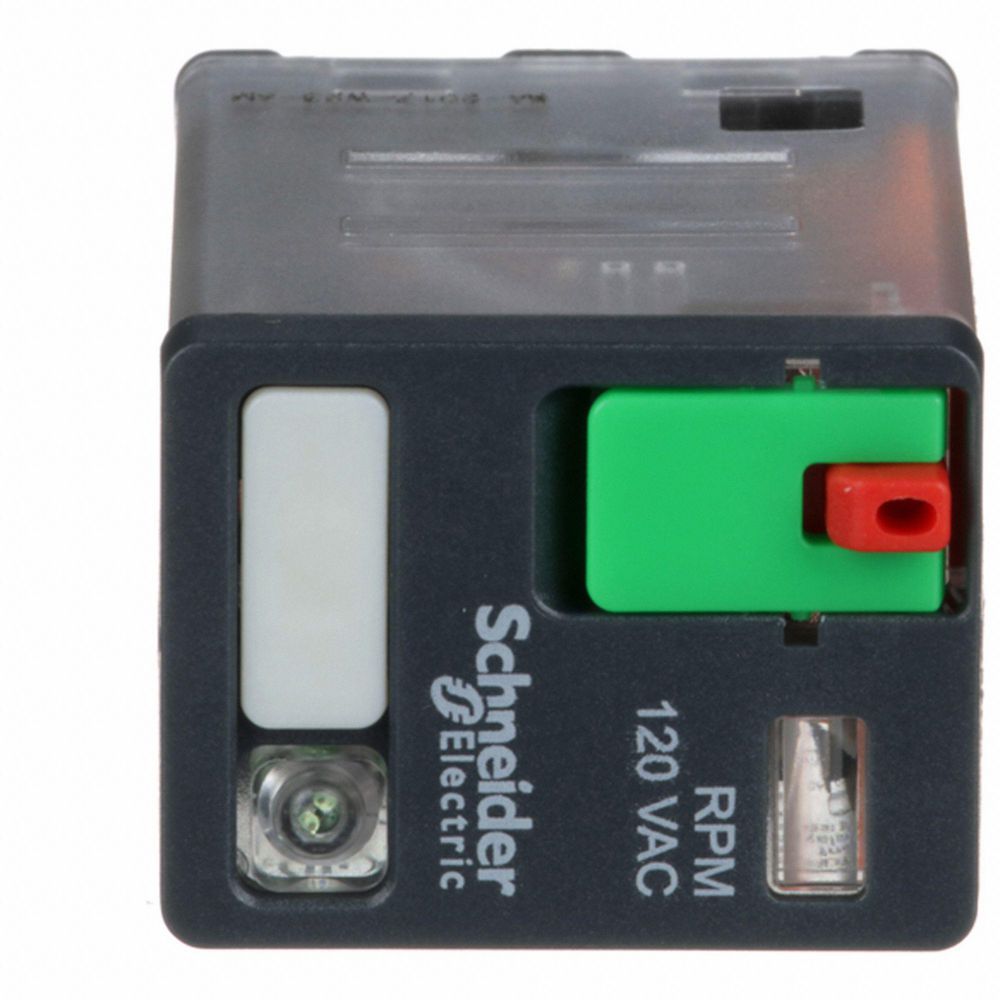

Schneider Electric 120VAC Coil Volts, General Purpose Relay, 15A @ 277VAC/15A @ 28VDC Contact Rating, Square

Hover over image to magnify
Gen Purpose Relay,8 Pin,Square,
Gen Purpose Relay,8 Pin,Square,

#929981-9 | Pkg Qty: 1

$15.27 pkg | $15.27 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Base Type
Square
Mounting
Square Plug in. Socket
Brand
SCHNEIDER ELECTRIC
Number of Contacts
4
Coil VA Rating
1.2
Number of Poles
2
Coil Volts
120 VAC
Pack Quantity
1
Contact Form
DPDT
Pins
8
Contact Material
Silver Nickel
Plug-In Relay Style
General Purpose
Contact Rating
15A @ 277 VAC/28 VDC
Push To Test
Lockable
HP @ 120 V
Not Rated
Shipping Weight
.08 lb.
HP @ 240 V
Not Rated
Socket
Mfr. No. RPZF2
Hz
50/60
Socket Code
D
Item
General Purpose Relay
Status Indicator
LED and Mechanical Flag
Mfr. Part Number
RPM22F7
Type
Miniature Power, LED indicator
General
AC Contact Rating - Relay
15A @ 277V
Features
Plug in. Protection Module to Protect Against Electrical Spikes
Aux. Contact Configuration
2 NO/2 NC
Mounting - Relay
Plug In
Base Type - Plug In Relay
Square
Number of Pins - Relay
8
Body Depth - Relay
1.06 in
Overall Height - Relay
2.13 in
Body Height - Relay
1.82 in
Power Consumption - Relay
1.1 VA
Body Width - Relay
0.83 in
Socket Code - Relay
D
Contact Form - Relay
DPDT
Standards
CE Marked, CSA Certified
DC Contact Rating - Relay
15A @ 28V

Product Description

General Purpose Relay, Coil Volts 120V AC, AC Contact Rating - Relay 15A @ 277V, DC Contact Rating - Relay 15A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay D, Power Consumption - Relay 1.1 VA, Contact Material Silver Nickel, Status Indicator LED and Mechanical Flag, Push To Test Lockable
