CLIMAX METAL PRODUCTS

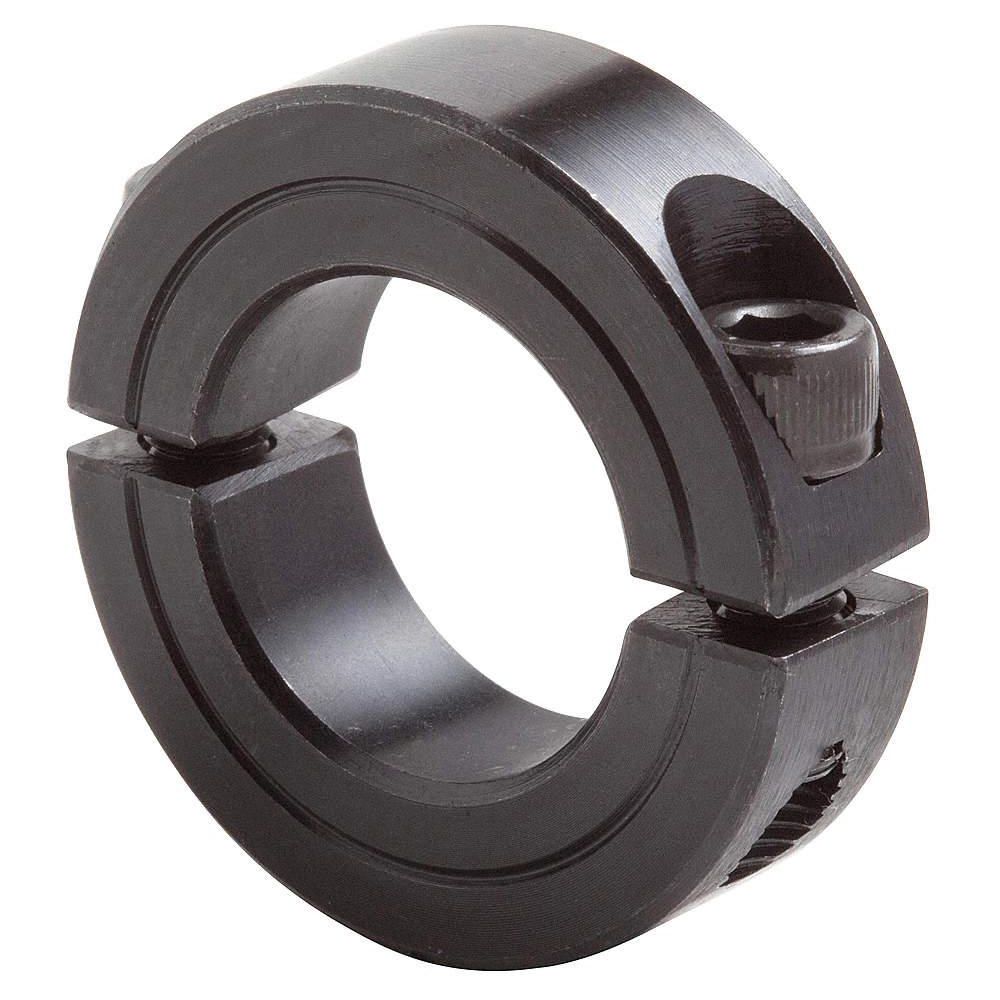

Black Oxide Steel Shaft Collar, Clamp Collar Style, Standard Dimension Type, 7/16" Bore Dia.
Hover over image to magnify
#929737-5 | Pkg Qty: 1
$12.22 pkg | $12.22 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bore Diameter
7/16 in.
Package Quantity
1
Brand
CLIMAX METAL PRODUCTS
Screw Material
Steel
Clearance Diameter
1-1/8 in.
Shaft Collar Bore Type
Plain Bore
Item
Shaft Collar
Shaft Locking Type - Couplings
2 Piece Clamp
Mfr. Part Number
2C-043
Shipping Weight
.05 lb.
Operating Temperature Range
0 deg. F to 300 deg. F
Width
3/8 in.
Outside Diameter
15/16 in.
General
Material - Collars
Black Oxide Steel
Operating Temp. Range
0 Degrees to 300 Degrees F
Product Description
Shaft Collar, System of Measurement Inch, Shaft Locking Type - Couplings 2 Piece Clamp, Bore Type - Collars Plain Bore, Bore Dia. 7/16 in, Material - Collars Black Oxide Steel, Outside Dia. 15/16 in, Width 3/8 in, Clearance Dia. 1.125 in, Screw Size #6-32, Screw Material Steel, Operating Temp. Range 0 Degrees to 300 Degrees F
Documents
Item Barcode
Shaft Collar,Clamp,2Pc,7/16 In,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 29NX81 | Shaft Collar, Clamp,2Pc,7/ |
 | UNSPSC CODES | 31162811 | |
 | VMRS (ATA) CODES | 053-006-009 | Shaft Collar, Clamp,2Pc,7/ |
