HONEYWELL MICRO SWITCH

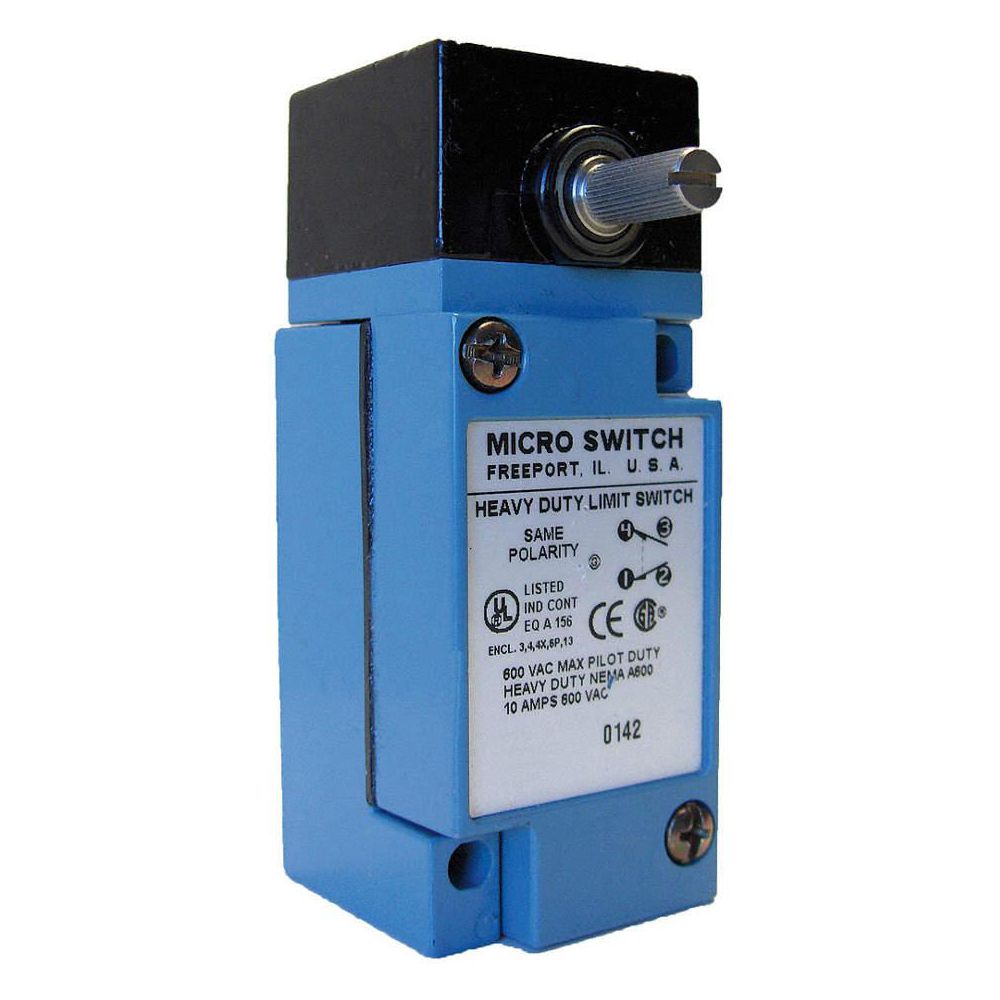

Honeywell Micro Switch Rotary, No Lever Heavy Duty Limit Switch; Location: Side, Contact Form: 1NC/1NO, CW, CCW Movement
Hover over image to magnify
#929384-2 | Pkg Qty: 1
$294.17 pkg | $294.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actuator Location
Side
Mfr. Part Number
LSA3K
Actuator Style
Rotary Head, No Lever
Movement
CCW, CW
Amperage
10 A
NEMA Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Body Material
Zinc Die Cast
Operating Force
4.0 in.-lb
Brand
HONEYWELL MICRO SWITCH
Package Quantity
1
Contact Form
1NC/1NO, SPDT, Snap Action, Double Break
Roller Width
0.19 in.
Contact Type
Double Break, Snap Action
Series
Lsa
Depth
1-3/4 in.
Shipping Weight
1.7 lb.
Description/Special Features
Mode of Operation is Field Adjustable
Style
Mechanical Actuator Operated
Electrical Connection
Screw Terminals
Travel
Differential Travel 5 deg. , Maximum Pretravel 15 deg. , Minimum Over Travel 60 deg.
Hazardous Location
No
Voltage
600 VAC/250 VDC
Height
4.2 in.
Voltage Rating
600 VAC/250 VDC
IP Rating
65, 66, 67
Width
1.62 in.
Item
Heavy Duty Limit Switch
Wiring Entry
1/2"-14 NPT
Limit Switch Style
Heavy Duty Limit Switch
General
AC Contact Rating - Limit Switch
10A @ 600V
DC Contact Rating - Limit Switch
10A @ 250V
Actuator Location - Limit Switch
Side
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
No Lever, Rotary
Mounting Hole - Limit Switch
(2) 0.20 in dia
Basic Actuator Style - Limit Switch
Rotary
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Body Depth - Limit Switch
1.75 in
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Body Height - Limit Switch
2.95 in
Operating Temp. Range
10° to 250°F
Body Style - Limit Switch
Miniature
Standards
CCC, CE, CSA, UL
Body Width - Limit Switch
1.62 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Threaded for Panel Mounting - Limit Switch
No
Contact Form- Switches
1NC/1NO
Product Description
This heavy-duty limit switch features front-mount construction and a complete switch design, which does not require additional parts for installation. It also features a rotatable head and is field adjustable to CW and/or CCW operation.
Documents
Item Barcode
Heavy Duty Limit Switch
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 12V046 | Heavy Duty Limit Switch |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 053-006-009 | Heavy Duty Limit Switch |
