OMRON

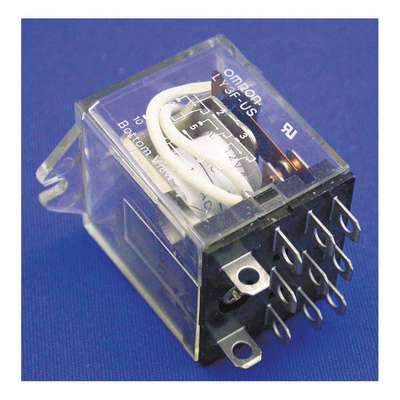

Omron 24V AC, 11-Pin Flange Mount Relay; Flange Location: Top, AC Contact Rating: 10A @ 120V
#929347-3Pkg Qty: 1
$22.00 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 240 V
Base Type
Square
Body Depth
1.12 in.
Body Height
1.4 in.
Brand
OMRON
Coil Volts
24 VAC
Contact Form
3PDT
Contact Material
Silver Alloy
Contact Rating
10A @ 110 VAC/24 VDC
DC Contact Rating
10 A @ 24 V
Electrical Connection
0.200 in. Solder Terminals
Item
Flange Mount Relay
Mfr. Part Number
LY3F-AC24
Mounting
Top
Number of Pins
11
Number of Poles
3
Package Quantity
1
Shipping Weight
.35 lb.
Socket Code
D
AC Contact Rating
10 A @ 240 V
Electrical Connection
0.200 in. Solder Terminals
Base Type
Square
Item
Flange Mount Relay
Body Depth
1.12 in.
Mfr. Part Number
LY3F-AC24
Body Height
1.4 in.
Mounting
Top
Brand
OMRON
Number of Pins
11
Coil Volts
24 VAC
Number of Poles
3
Contact Form
3PDT
Package Quantity
1
Contact Material
Silver Alloy
Shipping Weight
.35 lb.
Contact Rating
10A @ 110 VAC/24 VDC
Socket Code
D
DC Contact Rating
10 A @ 24 V
General
AC Contact Rating - Relay
10A @ 120V
Body Depth - Relay
1.12 in
Body Height - Relay
1.4 in
Body Width
1.26 in.
Body Width - Relay
1.26 in
Coil VA Rating
1.6 to 2
DC Contact Rating - Relay
10A @ 24V
Features
Arc Barrier Equipped, High Dielectric Strength (2,000 VAC)
HP @ 120 V
1/10 hp
HP @ 240 V
1/2 hp
Hz
50/60
Mounting - Relay
Top Flange
Overall Height - Relay
1.65 in
Power Consumption - Relay
2.0 VA
Push To Test
Manual
Response Time
25 msec
Series
LY Series
Socket Code - Relay
E
Standards
CE Marked, CSA Certified, SE V, VDE
Status Indicator
No
Type
Flange, Top Mount
AC Contact Rating - Relay
10A @ 120V
Mounting - Relay
Top Flange
Body Depth - Relay
1.12 in
Overall Height - Relay
1.65 in
Body Height - Relay
1.4 in
Power Consumption - Relay
2.0 VA
Body Width
1.26 in.
Push To Test
Manual
Body Width - Relay
1.26 in
Response Time
25 msec
Coil VA Rating
1.6 to 2
Series
LY Series
DC Contact Rating - Relay
10A @ 24V
Socket Code - Relay
E
Features
Arc Barrier Equipped, High Dielectric Strength (2,000 VAC)
Standards
CE Marked, CSA Certified, SE V, VDE
HP @ 120 V
1/10 hp
Status Indicator
No
HP @ 240 V
1/2 hp
Type
Flange, Top Mount
Hz
50/60
Product Description
Flange Mount Relay, Coil Volts 24V AC, AC Contact Rating - Relay 10A @ 120V, DC Contact Rating - Relay 10A @ 24V, Number of Pins - Relay 11, Contact Form - Relay 3PDT, Mounting - Relay Top Flange, Power Consumption - Relay 2.0 VA, Socket Code - Relay E, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual, Electrical Connection 0.200 in Solder Terminals
Item Barcode
Flange Relay,24VAC,11 Pins,10A
