ESSICK AIR PRODUCTS

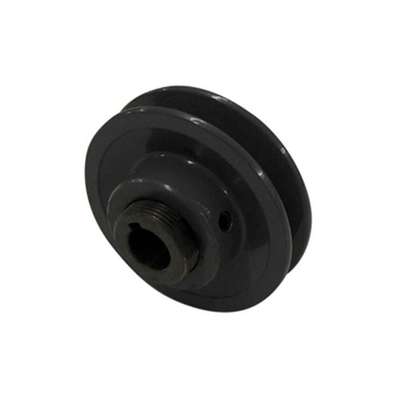

Essick Air Products 1-1/8" Fixed Bore Variable Pitch V-Belt Pulley, For V-Belt Section: 3L, 4L, 5L, A, AX, B, BX
Hover over image to magnify
#929337-3 | Pkg Qty: 1
$258.64 pkg | $258.64 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ESSICK AIR PRODUCTS
Mfr. Part Number
110291
Construction
Solid
Package Quantity
1
Item
Variable Pitch V-Belt Pulley
Shipping Weight
4 lb.
General
3L Belt Pitch Dia.
2.70 in to 3.50 in
Bore Type
Fixed Bore
3L Belt Pitch Diameter
2.7 in to 3.5 in
Bushing Required
None
3L Pitch Diameter (Maximum)
3.5 in
Fits Shaft Dia.
1-1/8 in
3L Pitch Diameter (Minimum)
2.7 in
For Belt Trade Size
3L, 4L, 5L, A, AX, B, BX
4L Pitch Diameter (Maximum)
3.9 in
For V-Belt Section
3L, 4L, 5L, A, AX, B, BX
4L Pitch Diameter (Minimum)
2.9 in
For V-Belt Type
Classical, Cogged, Micro-Ribbed
4L, A, or AX Belt Pitch Dia.
2.9 in to 3.9 in
Groove
2
4L, A, or AX Belt Pitch Diameter
2.9 in to 3.9 in
Keyway
Yes
5L Pitch Diameter (Maximum)
4 in
Keyway Size Type
0.25 in x 0.125 in
5L Pitch Diameter (Minimum)
3 in
Maximum Pitch Diameter
3.50 in (3L), 3.9 in (4L, A, AX), 4 in (5L, B, BX)
5L, B, or BX Belt Pitch Dia.
3 in to 4 in
Number of Grooves
2
5L, B, or BX Belt Pitch Diameter
3 in to 4 in
Outside Dia.
3.50"
A Pitch Diameter (Maximum)
3.9 in
Pitch
3.9" MAX
A Pitch Diameter (Minimum)
2.9 in
Pulley Bore Dia.
1 1/8 in
AX Pitch Diameter (Maximum)
3.9 in
Pulley Bore Type
Fixed Bore
AX Pitch Diameter (Minimum)
2.9 in
Pulley Material
Cast Iron
B Pitch Diameter (Maximum)
4 in
Pulley Outside Dia.
3.5 in
B Pitch Diameter (Minimum)
3 in
Pulley Type
Variable Pitch V-Belt Pulley
BX Pitch Diameter (Maximum)
4 in
Set Screw Included
Yes
BX Pitch Diameter (Minimum)
3 in
Set Screw Location
180° from Keyway, 90° Apart
Bore Dia.
1-1/8"
Setscrew
Y
Product Description
ESSICKAIR® variable pitch V-belt pulley is designed for V-belt section 3L, 4L, 5L, A, AX, B, and BX.
- 2 grooves
- Cast-iron construction
- Includes set screw
