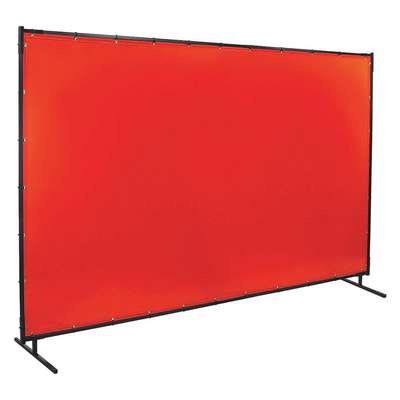

Transparent Vinyl Welding Screen, 6 ft. H x 10 ft.W x 0.014" Thick, Orange

Item Number 929248-9
Scanner Description Welding Screen,10 Ft. W,6 Ft.,
Weight 23.65 lb
Brand STEINER
Pkg Qty: 1
$212.00 pkg | $212.00 ea

Add to List

Technical Specifications

Brand STEINER   Protective Color Orange
Features Protects from Harmful UV Rays and Sparks for The Casual Viewer, Reduces Visible Flash and Allows Light Into Work Area   Protective Height 6 ft.
Grommet Placement 12 in. Centers on Four Sides   Protective Material Transparent Vinyl
Includes 3/4 in. Square Tube Frame, 24 in. Sturdy Platform Legs, Welding Curtain, Plastic Ties   Protective Thickness 0.014 in.
Item Welding Screen   Protective Width 10 ft.
Material Weight 13 oz./sq. yd.   Standards California Fire Marshal Approved
Mfg Part Number 538-6X10   With Grommet/Without Grommet With Grommet
Pack Quantity 1

Product Description

This free-standing Protect-O-Screen® protects workers, material, and equipment from the hazards of welding sparks, spatter, and UV flash. Constructed with 3/4" crossbars and 7/8" corners and legs, the sturdy 18-gauge black steel, rust-resistant, enamel-finish, square tube frame is designed to eliminate the slipping and twisting that occur with round tube frames. Easy-Slide™ slip-fit connection permits quick and easy assembly without tools. The unique modular design allows addition, removal, replacement, and rearrangement of individual panels to quickly adapt to new requirements. Optional casters are available separately.


  • Welding Protection Sub-Category Screens
  • Item Welding Screen
  • Protective Height 6 ft.
  • Protective Width 10 ft.
  • Protective Color Orange
  • Protective Material Transparent Vinyl
  • Protective Thickness 0.014"
  • Material Weight 13 oz./sq. yd.
  • Withstand Temp. 150 Degrees F
  • With Grommet / Without Grommet With Grommet
  • Grommet Placement 12" Centers on Four Sides
  • Features Protects from Harmful UV Rays and Sparks for The Casual Viewer, Reduces Visible Flash and Allows Light Into Work Area
  • Includes 3/4" Square Tube Frame, 24" Sturdy Platform Legs, Welding Curtain, Plastic Ties
  • Standards California Fire Marshal Approved
Documents
Item Barcode
9292489
  Name Item Description
Grainger Dropship Grainger Dropship 29PF41
UNSPSC CODES UNSPSC CODES 23271714
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-017 Welding Screen,10 ft.
