DART CONTROLS

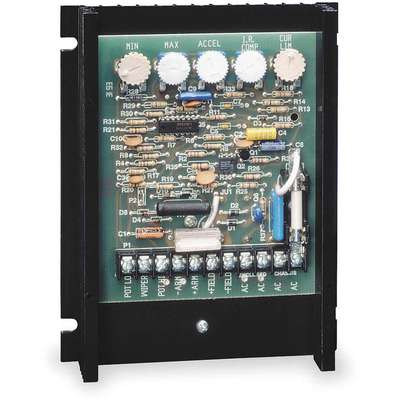

Dart Controls DC Speed Control,Chassis,100/200V DC Shunt Wound Volts,0 to 90/180V DC Voltage Output,10 A Max. Amps
Hover over image to magnify
#928773 | Pkg Qty: 1
$295.85 pkg | $295.85 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CULus Listed
Output
0-90 VDC /0-180 VDC
Brand
DART CONTROLS
Overall Depth
1.63 in.
Depth
1.63 in.
Overall Height
7 in.
Enclosure
Chassis
Overall Width
5.53 in.
Enclosure Type
Open
Pack Quantity
1
Height
7 in.
Provides
Superior Wide Range Adjustable Speed Control
Input Voltage
115/230 VAC
Rotation
Reversible
Item
DC Speed Control
Series
Series 253
Maximum Current
1899-12-31 10:00:00
Shipping Weight
1.5 lb.
Mfr. Part Number
253G-200C
Voltage Output
0 to 90/180 VDC
Mount Type
Chassis
Width
5.53 in.
Operating Temperature
-10 to 45 C
General
AC Input Voltage
120/240V AC
Linear Acceleration
Adjustable 0.5 to 8 sec
Accepts Tach Feedback
Yes
Lower Voltage Motor Output Power
1/8 to 1 hp
Current/Torque Limit
Adjustable
Maximum Linear Acceleration
8 sec
DC Speed Control
SCR
Minimum Linear Acceleration
0.5 sec
Dynamic Braking
No
Operates On
50/60 Hertz at +/-10 Percentage Rated Line Voltage
External Switches
None
Operating Temp.
-10° to 45°C
Follower Circuit
No
Protection Type
Fused
For Use With
Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
SCR DC Speed Controls
SCR
HP
1/8 to 1 @ 90 VDC, 1/4 to 2 @ 180 VDC
Shunt Wound Voltage
100/200V DC
HP @ Higher Volts
1/4 to 2
Shunt Wound Volts
100/200V DC
HP @ Lower Volts
1/8 to 1
Speed Range
50:1
Higher Voltage Motor Output Power
1/4 to 2 hp
Speed Regulation
+/-0.5% with Tach Feedback, +/-1% with Armature Voltage Feedback
IR Compensation
Adjustable
Standards
cULus Listed
Includes
Speed Potentiometer Knob and Dial Plate
Product Description
This DC speed control device provides superior wide-range adjustable speed control, and helps regulate motor speed with adjustable acceleration and deceleration.
Item Barcode
Dc Speed Control,90/180VDC,10A,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6Z385 | DC Speed Control,90/ |
 | UNSPSC CODES | 39122214 | |
 | VMRS (ATA) CODES | 053-006-009 | DC Speed Control,90/ |
