NORTON DOOR CLOSERS

Manual Hydraulic Norton 8301-Series Door Closer, Heavy Duty Interior and Exterior, Aluminum

Hover over image to magnify

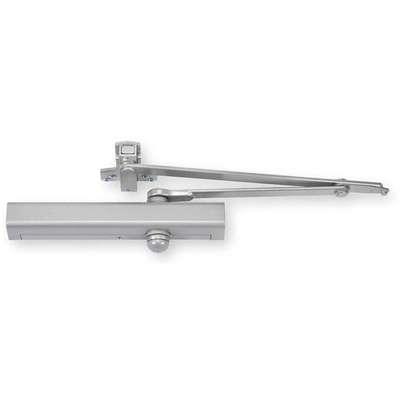

Door Closer, Unitrol Arm
PI_Asset_927135
Door Closer, Unitrol Arm
PI_Asset_927135

#928386-9 | Pkg Qty: 1

$399.10 pkg | $399.10 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
ADA Compliance
Yes
Housing Height
2-7/8 in.
Arm Material
Die Cast Aluminum
Housing Length
13 in.
Arm Type
Unitrol
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Interior/Exterior
Interior and Exterior
Brand
NORTON DOOR CLOSERS
Item
Door Closer
Closer Type
Non Hold Open
Ligature Resistant
No
Color Family
Silver
Mfr. Part Number
UNI8301 x 689
Door Opening Width
110 deg.
Mounting Style
Top Frame
Duty Rating
Heavy Duty
Package Quantity
1
Fire Rating
3 hr
Series
Norton 8301
Hand Orientation
Non-Handed
Shipping Weight
9.25 lb.
Hardware Included
No
Spring Size
Adjustable 1 to 6
Housing Depth
2-1/8 in.
General
ADA Compliant
Yes
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Closer Mounting Style
Top Frame
Includes
Plastic Cover
Closer Performance
Heavy Duty
Interior Door Width
41 in
Closer Series
Norton 8301
Max. Door Opening
110°
Closing Operation Mode
Hydraulic
Standards
ANSI A156.4 Grade 2, UL and c
Exterior Door Width
41 in
Type of Installation
Interior/Exterior
Fire Rating - Door Hardware
3 hr

Product Description

Norton® 8300 Series hydraulic door closer has a medium-size body and springs for effective door control. Slimline design requires less mounting space than other closers. Rack and pinion closer has a lightweight aluminum alloy body. Features adjustments for closing, sweep and latch speed, and backcheck. Nonhanded door closer self-closes the door each time the door is opened. Unitrol® arm type is suitable for doors with high exposure to winds and abuse. Heavy-gauge arm material, arm pivot/elbow with larger bearings, spring stop absorbs 30 lb. or force, and highly controlled stop. Parallel mount only.
