DART CONTROLS

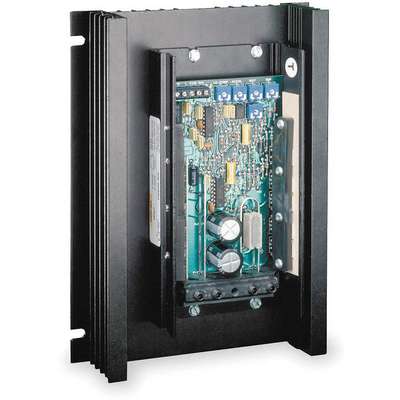

Dart Controls DC Speed Control: PWM, Open, 60 A Max Current, 12V DC, 30:1, Single Direction
Hover over image to magnify
#928315-2 | Pkg Qty: 1
$477.52 pkg | $477.52 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DART CONTROLS
Operating Temperature
-10 to 45 C
Depth
2.27 in.
Overall Depth
2.27 in.
Enclosure
Chassis
Overall Height
9 in.
Enclosure Type
Open
Overall Width
6.7 in.
Height
9 in.
Pack Quantity
1
Input Voltage
12 VDC
Rotation
Single Direction
Item
DC Speed Control
Series
Series 65
Maximum Current
60 A
Shipping Weight
2.8 lb.
Mfr. Part Number
65E60-12
Voltage Output
0 to 12 VDC
Mount Type
Chassis
Width
6.7 in.
General
Current/Torque Limit
Adjustable
Linear Acceleration
Adjustable 0 to 10 sec
DC Input Voltage
12V DC
Linear Deceleration
Fixed 0.5 sec
DC Speed Control
PWM
Lower Voltage Motor Output Power
1/8 to 1 hp
External Switches
None
Maximum Linear Acceleration
10 sec
For Use With
Low Voltage DC Motors in. Portable Battery-powered Equipment for Conveying, Spraying, Pumping and Paper Sorting
Maximum Linear Deceleration
0.5 sec
HP
1/8 to 3
Minimum Linear Acceleration
0 sec
HP @ Higher Volts
1/2 to 3
Operating Temp.
-10° to 45°C
HP @ Lower Volts
1/8 to 1
PWM DC Speed Controls
PWM
Higher Voltage Motor Output Power
1/2 to 3 hp
Speed Range
30:1
IR Compensation
Adjustable
Speed Regulation
+/-1% of Base Speed
Includes
Speed Potentiometer Knob and Dial Plate
Standards
RoHS
Product Description
This DC speed control helps convert line voltage input to full-wave DC power on constant or diminishing torque applications.
Item Barcode
Dc Speed Control,0-12VDC,60A,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6YC43 | DC Speed Control,0- |
 | UNSPSC CODES | 39122214 | |
 | VMRS (ATA) CODES | 053-006-009 | DC Speed Control,0- |
