KH INDUSTRIES

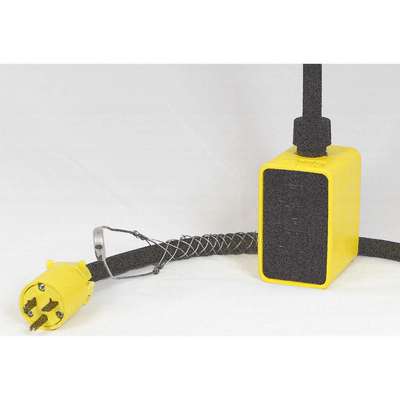

KH Industries Pendant Drop Outlet Box, Number of Outlet Boxes 1, Number of Outlets 4, 25 ft.

Hover over image to magnify
Pendant Drop Outlet Box,125V,
Pendant Drop Outlet Box,125V,

#928135-5 | Pkg Qty: 1

$353.06 pkg | $353.06 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
KH INDUSTRIES
NEMA Plug Configuration
5-20P
Cord Length
25 ft.
NEMA Receptacle Configuration
5-20R
Cord Shape
Round
Nominal Outside Diameter
0.61 in.
Cord Type
SOOW
Number of Conductors
3
Extension Cord Length
25 ft.
Number of Outlets
4
Extension Cord Outlet NEMA Configuration
5-20
Package Quantity
1
Extension Cord Plug NEMA Configuration
5-20
Plug Configuration
Straight, No Swivel
Extension Cords Group
25 to 35 ft.
Plug Style
Straight
Gauge/Conductor
12/3
Power Indicator
No
Indoor/Outdoor
Outdoor
Receptacle Configuration
NEMA 5-20R
Item
Pendant Drop Outlet Box
Shape
Round
Jacket Color Family
Black
Shipping Weight
7.8 lb.
Jacket Material
Rubber
Standards
UL / CSA Components
Lighted End
Yes
Trade Designation
SOOW
Maximum Amps
20 A
Type
Straight Blade
Maximum Wattage
2,500 W
Voltage
125 VAC
Mfr. Part Number
PP4DD-520-B12F-520
Watts
2500 W
NEC Cord Designation
SOOW
Wire Size
12 AWG
NEMA Connector
5-20R
General
Cord Shape
Round

Product Description

Pendant drop outlet boxes are portable outlets with an extension cord and two or more receptacles that supply power to devices. Also known as power pendant outlet boxes, they are designed for push buttons (such as on/off) or other controls and are typically mounted above or near the machine being controlled. They come with strain relief to help prevent the cord from sagging, stretching, or coming loose due to the weight of the pendant box. They are often used in manufacturing facilities for processing applications where control of devices is important.

Extension cords with a single outlet box consist of flexible electrical cable and are used to supply temporary power to more than one device from the same cord, such as a power tool and a light. They have a plug at one end that connects to the power source and a metal outlet box with two receptacles at the other end that the devices plug into. Extension cords with outlet boxes are commonly used to provide power in a wide range of indoor and outdoor applications.

Item Barcode
9281355
Pendant Drop Outlet Box,125V,
 NameItemDescription
Grainger DropshipGrainger Dropship13M206Pendant Drop Outlet Box,
UNSPSC CODESUNSPSC CODES39121303
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Pendant Drop Outlet Box,
