DSR PROSERIES

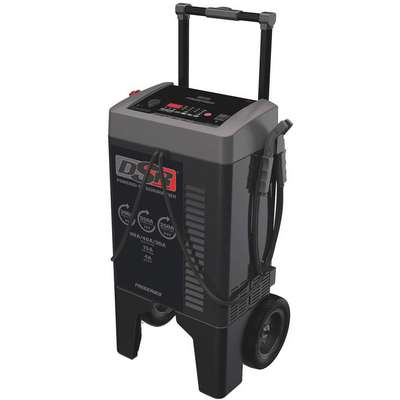

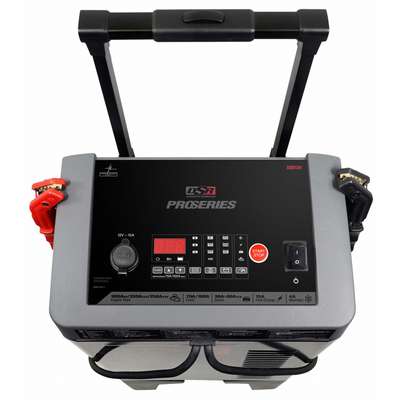

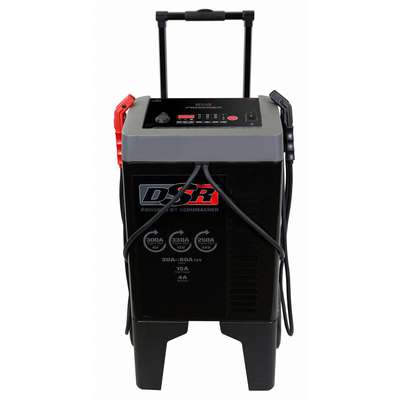

DSR Proseries Automatic, Wheeled Battery Charger; Boosting, Charging, Maintaining; For Battery Voltage: 6 V DC, 12 V DC, 24 V DC

Hover over image to magnify
Charger,Wheeled,For 6/12/24V
PI_Asset_1758588
PI_Asset_1758589
Charger,Wheeled,For 6/12/24V
PI_Asset_1758588
PI_Asset_1758589

#928074-8 | Pkg Qty: 1

$1,060.85 pkg | $1,060.85 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Cord Length
9 ft.
Input Current
14.6 A
Automatic/Manual
Automatic
Input Voltage
120 VAC
Boost Amps @ Voltage
50 A @ 6 V, 50 A @ 12 V
Item
Battery Charger
Brand
DSR PROSERIES
Maintaining Amps @ Voltage
4 A @ 12 V
CEC Compliant
CEC Compliant
Material
Plastic
Cable Gauge
4 AWG
Mfr. Part Number
DSR124
Cable Length
8 ft.
Overall Depth
16-1/4 in.
Charge Type
Auto On/Off
Overall Height
33-5/8 in.
Charger Function
Boosting, Charging, Maintaining
Overall Width
20-1/2 in.
Charger Style
Wheeled
Package Quantity
1
Charging Amps @ Voltage
250 A @ 24 V, 300 A @ 6 V, 330 A @ 12 V
Portable
Yes
Cranking Amps
100A
Power Cord Length
9 ft.
For Battery Voltage
6 V DC, 12 V DC, 24 V DC
Shipping Weight
80.5 lb.
For Use with Battery Type
AGM, Deep Cycle, Gel
Test Feature
No
Housing Material
Plastic
Timer
No
General
Boost Current @ Voltage
50 A @ 6V, 50 A @ 12V
Includes Test Feature
No
Cable Wire Gauge
4 AWG
Indoor / Outdoor
Indoor / Outdoor
Cold Cranking Current @ Voltage
100 A @ 12V
Input Current
14.6 A
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Input Voltage
120 VAC
Housing Material
Plastic
Power Cord Length
9 ft.
Includes
(4) Cable Clamp Cleats, Memory Saver Cable

Product Description

Battery Charger, Charger Style Wheeled, For Battery Voltage 6, 12, 24, For Use With Battery Type AGM, Deep Cycle, Gel, Charger Function Boosting, Charging, Maintaining, Automatic, Charge Type Auto On/Off, Boost Amps @ Voltage 50A @ 6V, 50A @ 12V, Cold Cranking Amps @ Voltage 100A @ 12V, Charging Amps @ Voltage 250A @ 24V, 300A @ 6V, 330A @ 12V, Maintaining Amps @ Voltage 4A @ 12V, AC Cord Length 9 ft, Input Voltage 120V AC, Input Amps 14.6, Overall Width 20 1/2 in, Overall Height 33 5/8 in
