SPEEDAIRE

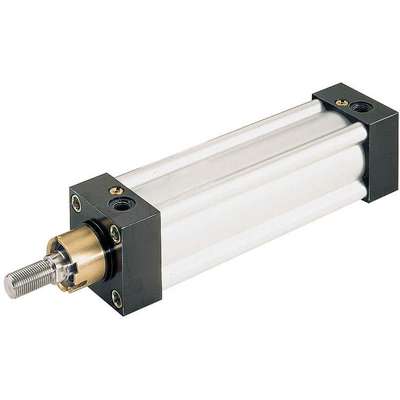

3-1/4" Air Cylinder Bore Dia. with 6" Stroke Aluminum , NFPA MX5/MS4 Mounted Air Cylinder

Hover over image to magnify
Nfpa Air Cylin,3-1/4InBore,
Nfpa Air Cylin,3-1/4InBore,

#928044-7 | Pkg Qty: 1

$275.55 pkg | $275.55 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Cylinder Mount
NFPA MX5/MS4
Mount
NFPA MX5/MS4
Air Cylinder Type
NFPA
Package Quantity
1
Body Material
Aluminum
Port Size
1/2 in.
Brand
SPEEDAIRE
Shipping Weight
7.4 lb.
Cylinder Action
Double Acting
Stroke
6 in.
Item
Air Cylinder
Tube Material
Anodized Aluminum
Mfr. Part Number
5VLG0
General
Action Type
Double Acting
Piston Rod
Chrome Plated Case Hardened Steel
Air Cylinder Bore Dia.
3 1/4 in
Piston Rod Material
Case Hardened, Chrome Plated Steel
Air Cylinder Product Group
Air Cylinder
Rod Dia.
1 in
Bore Dia.
3 1/4 in
Rod Thread Length
1.25 in
End Caps
Anodized Aluminium
Rod Thread Size
3/4"-16 UNF
Features
Square Head, Switch Ready
Single Acting/Double Acting
Double Acting
Magnetic Piston
Yes
Standards
NFPA, RoHS Compliant

Product Description

NFPA Extruded Aluminum Air Cylinders

  • Max. operating pressure: 250 psi Operating temp. range: -10° to 165°F Switch ready Cushions: standard and adjustable at both ends on 7" and larger stroke lengths Feature industry-standard footprint, which allows interchangeability with other NFPA-style cylinders of either tie-rod or extruded construction. Advantages include clean appearance and fewer spaces for dirt and debris to collect. RoHS compliant.
