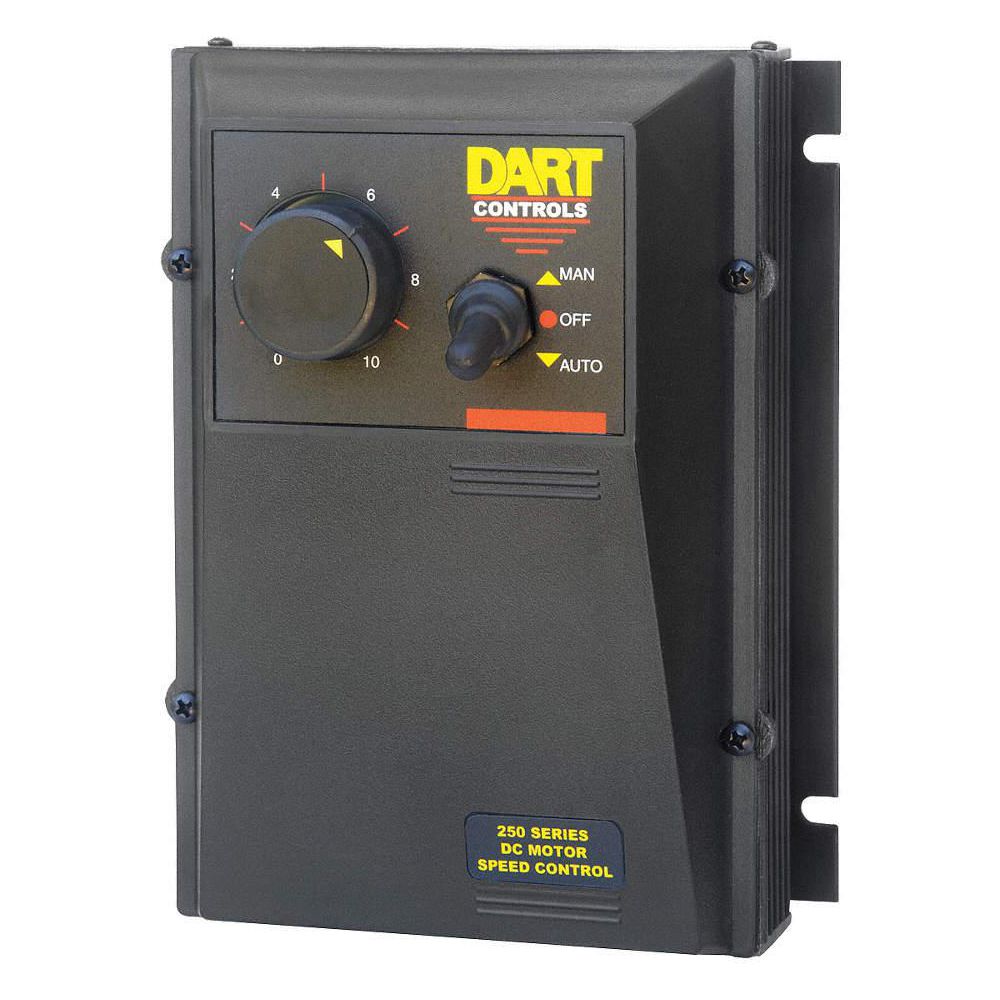

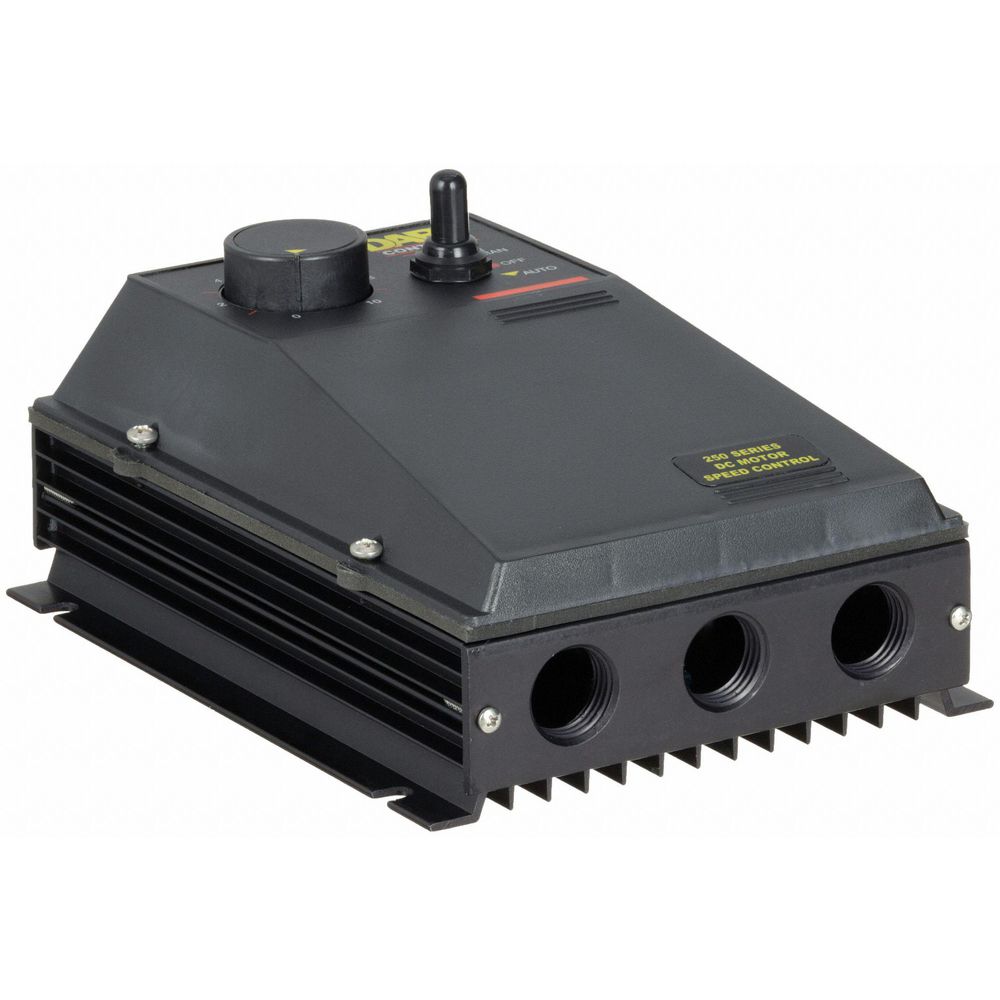

Dart Controls DC Speed Control,NEMA 4X,100/200VDC Shunt Wound Volts,0 to 90/180VDC Voltage Output,10 Max. Amps
Hover over image to magnify
#927853 | Pkg Qty: 1
$513.45 pkg
| $513.45 ea
Technical Specifications
Key Specifications
Agency Compliance
C-UL US
Operating Temperature
-10 to 45 C
Brand
DART CONTROLS
Output
90/180 VDC
Depth
2-3/4 in.
Overall Depth
2-3/4 in.
Enclosure
NE mA 4X
Overall Height
7-1/4 in.
Enclosure Rating
NEMA 4
Overall Width
5.53 in.
Enclosure Type
Enclosed
Pack Quantity
1
Height
7-1/4 in.
Provides
DC Variable Speed Control in. a NEMA 4 Washdown Enclosure with Ability to Follow a 4-20mA (Auto) Signal or Local (Manual Speed Pot)
Input Voltage
115/230 VAC
Rotation
Single Direction
Item
DC Speed Control
Series
Series 253
Maximum Current
1899-12-31 10:00:00
Shipping Weight
2.1 lb.
Mfr. Part Number
253G-200E-7
Style
Enclosed
Mount Type
Surface
Voltage Output
0 to 90/180 VDC
NEMA Rating
NEMA 4
Width
5.53 in.
General
AC Input Voltage
120/240V AC
Linear Acceleration
Adjustable 0.5 to 8 sec
Accepts Tach Feedback
Yes
Lower Voltage Motor Output Power
1/8 to 1 hp
Current/Torque Limit
Adjustable
Maximum Linear Acceleration
8 sec
DC Speed Control
SCR
Minimum Linear Acceleration
0.5 sec
Dynamic Braking
No
Operates On
50/60 Hertz at +/-10 Percentage Rated Line Voltage
External Switches
ON/OFF
Operating Temp.
-10° to 45°C
Follower Circuit
Yes
Power On Light
No
For Use With
DCPM and Shunt Motors
Protection Type
Fuse
HP
1/8 to 2
SCR DC Speed Controls
SCR
HP @ Higher Volts
1/4 to 2
Shunt Wound Voltage
100/200V DC
HP @ Lower Volts
1/8 to 1
Shunt Wound Volts
100/200V DC
Higher Voltage Motor Output Power
1/4 to 2 hp
Speed Range
50:1
IR Compensation
Adjustable
Speed Regulation
+/-0.5% with Tach Feedback, +/-1% with Armature Voltage Feedback
Includes
Isolated 4-20 Current Follower
Standards
cULus Listed
Product Description
This DC speed control device provides superior wide-range adjustable speed control, and helps regulate motor speed with adjustable acceleration and deceleration.
