HUBBELL KILLARK

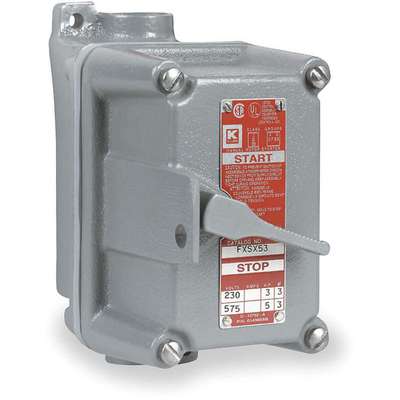

Hubbell Killark 2-Pole Feed-Thru Motor Starter, 20 Amps AC, Enclosure NEMA Rating 3R, 7, 9
#927834 | Pkg Qty: 1
$513.77 pkg | $513.77 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Maintained
Mfr. Part Number
FXSX52
Amps AC
20 A
Mounting
Surface
Brand
HUBBELL KILLARK
NEMA Contact Rating Designation
A600/Q300
Contact Form
2NO/2NC
NEMA Rating
3R, 7, 9
Contact Rating
30A @ 250 VAC, 20A @ 600 VAC
Number of Gangs
1
Contact Type
2 Pole
Number of Operators
1
Depth
5.344 in.
Number of Poles
2
Description/Special Features
(2) 3/4 in. Hubs on Opposing Ends
Package Quantity
1
Enclosure Material
Cast Aluminum
Safety Rating
Class 1, Division 1, Groups C, D
Enclosure NEMA Rating
3R, 7, 9
Series
FXSX
Height
4 in.
Shipping Weight
4.15 lb.
Hub Size
3/4 in.
Type
Hazardous Location
Hub Style
Feed-Thru
Type of Operator
Toggle
Item
Motor Starter
Voltage
600 VAC
Legend
Start/Stop
Width
3-11/16 in.
Legend Markings
Start/Stop
General
HP
2 HP @ 115V, 2 HP @ 200 to 230V, 3 HP @ 460 to 575V
No. of Thermal Units Required
None
HP @ 1 Phase - 230V
2 hp
Standards
CSA, UL
HP @ 3 Phase - 460-575V
3 hp
Product Description
Hazardous Area Control Stations
- For locations defined as hazardous in NEC Class I, Div. 1 or 2; Class II; or Class III, Div. 1 or 2 Cast-aluminum cover and body Stainless steel bolts are captivated to prevent loss
- For use in areas where flammable gases or combustible dusts may exist. Raintight NEMA 3 factory-sealed sealing plate has a molded gasket and is attached to the operator cover for easy wiring and assembly.
- UL Listed and CSA Certified.
- Note: Part Numbers: 2AV81, 2AV91, 2AY16, and 2AV85 are not for direct starting or stopping of motors. Part Numbers: 2AV95, 2AV98, 2AY11, and 2AY14 are used to start and stop small horsepower electric motors.
Item Barcode
Control Station,3/4 In,1 Gang
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 2AY11 | Control Station,3/4 | |
UNSPSC CODES | 39122216 | ||
VMRS (ATA) CODES | 053-006-009 | Control Station,3/4 |
