SQUARE D

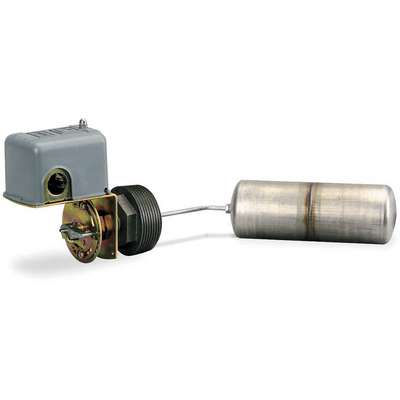

Square D Tank Liquid Level Switch, Close On Rise, Stainless Steel, 2-1/2" MNPT
#927819-8 | Pkg Qty: 1
$230.28 pkg | $230.28 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Steel
Item
Tank Liquid Level Switch
Brand
SQUARE D
Maximum Current
600A
Conduit Size
3-1/2 in.
Maximum Pressure
50 psi
Contact Form
DPST
Maximum Voltage
600 V
Contact Type
NEMA Type 1, 2 1/2 in. NPT Male Mount, 2 Pole, Close On Rise
Maximum Water Level Adjustment
2002-11-01
Electrical Connections
Screw Clamp
Mfr. Part Number
9037HG31
Float Diameter
2.58 in.
Minimum Water Level Adjustment
2
Float Length
7.13 in.
Mounting
Side
Float Material
Stainless Steel
Mounts
Side
Float Position
Right
NEMA Rating
1
Float Rod Angle
90
Operating Temperature Range
-2 deg. F to 220 deg. F
Float Travel
9-1/2 in.
Overall Length
16.06 in.
HP @ 1 Phase - 115 V
2
Package Quantity
1
HP @ 1 Phase - 120 V
2
Shipping Weight
4.75 lb.
HP @ 1 Phase - 230 V
3
Stem Length
5.07 in.
HP @ 1 Phase - 240 V
3
Stem Material
Stainless Steel
HP @ 3 Phase - 230 V
5
Switch Function
Close On Rise
HP @ 3 Phase - 240 V
5
Tank Connection Size
2-1/2 in. MNPT
Height
5.98 in.
Width
3.86 in.
General
HP @ 1 Phase - 115V
2
HP @ 3 Phase - 240V
5 hp
HP @ 1 Phase - 120V
2 hp
Includes
Rod and Float
HP @ 1 Phase - 230V
3
Operating Temp. Range
-22° to 220°F
HP @ 1 Phase - 240V
3 hp
Standards
UL, CSA
HP @ 3 Phase - 230V
5
Product Description
This float switch is designed to control small motor loads directly. It helps to provide a simple, positive means of mechanically altering two pumps or motors. It includes an external pointer, nameplate, rod, and float. Class 9036 switches are single-lever operated.
