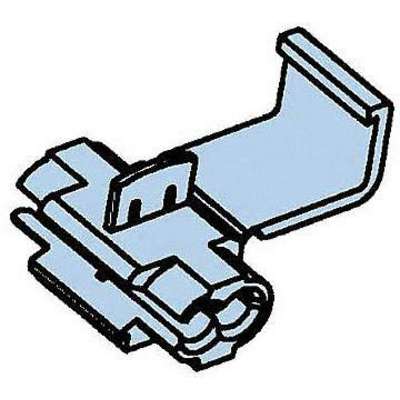

2-Port Dry Environment, Single U-Element Insulation Displacement Connector, PK of 5000

Hover over image to magnify
2-Port Dry Environment, Single U-Element Insulation Displacement Connector, PK of 5000

#927785-2 | Pkg Qty: 5000

$1,004.00 pkg | $0.20 ea
Item Number 927785-2
Scanner Description Displacement Connectr,18-14
Inventory Status Drop Ship Item
Weight 1.5 lb
Brand 3M

Technical Specifications

Application
Dry Environment
Maximum Temperature (Deg. F)
221
Brand
3M
Maximum Voltage
600 V
Color Family
Blue
Mfr. Part Number
560-BULK
Connector Type
Single U-Element
Number of Ports
2
Crimping Tool
2JLF8
Pack Quantity
5000
Fill Material
No Fill
Solid Wire Range
18 to 16
Flame Retardant
Yes
Standards
UL Listed, CSA Certified
Insulation Material
Polypropylene
Stranded Wire Range
18 to 14
Item
Insulation Displacement Connector
Type
Dry Environment
Material of Construction
Polypropylene
Volts AC/DC
600
Maximum Insulation Diameter
0.145 in.
Wire Range
18 to 14 AWG
Maximum Temperature
221°F

Product Description

Add a 3M™ Scotchlok™ 560 IDC Double Run or Tap Connector to your wire so that you can quickly tap and run electric cables from it. The easy-to-use design ensures a simple connection with an appropriate crimping tool, and because it's insulated, it minimizes the risk of shorts and other issues. Use as a tap or for parallel splicing on 600V wires in buildings and 1000V wires in fixtures. Use with control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, and automotive/boat/RV wiring.
