CHAINFLEX

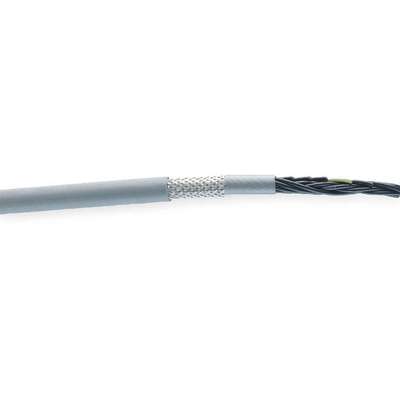

100 ft. Shielded Tray Cable with 4 Conductors and 16 AWG Wire Size, Gray

Hover over image to magnify
Continuous Flexing Tray Cable,

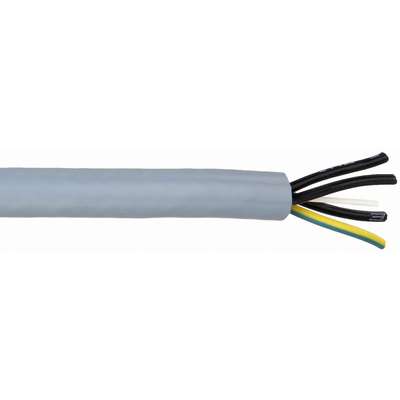

PI_Asset_1353873
Continuous Flexing Tray Cable,
PI_Asset_1353873

#927761-3 | Pkg Qty: 1

$563.55 pkg | $563.55 ea

Technical Specifications

Key Specifications
Brand
CHAINFLEX
Number of Conductors
4
Cable Type
Continuous Flexing
Pack Quantity
1
Cable/Wire Type
Continuous Flexing
Shielded/Unshielded
Shielded
Color Code
1Conductor is Green/Yellow, Remaining Conductors are Black with White Numbers
Shielding
Shielded
Color Family
Gray
Shipping Weight
20.64 lb.
Conductor Material
Copper
Special Features
Oil Resistant and Flame Resistant
Description/Special Features
Minimum Bend Radius for Flexing 8 x O.D., Oil Resistant and Flame Resistant
Spool Length
100 ft.
Features
Oil Resistant and Flame Resistant
Spool/Coil Length
100 ft.
Gauge/Conductor
16/4
Standards
UL TC/ MTW CSA AWM FT4/ CE
Item
Continuous Flexing Tray Cable
Temperature Range
23 deg. F to 176 deg. F
Jacket Color
Gray
Type
Shielded
Jacket Material
PVC
Voltage
600 V
Jacket Type
PVC
Wire Color
Black with White Numbers, (1) Green/Yellow
Length
100 ft.
Wire Size
16 AWG
Maximum Amps
18
Wire and Cable Item
Tray Cable
Maximum Voltage
600 V
Wire/Cable Jacket Material
PVC
Nominal Outside Diameter
0.43 in.
General
Cable Type - Wire and Cable
Continuous Flexing
Temp. Range
23° to 176°F
Jacket Material - Wire and Cable
PVC
Temp. Rating
23° to 176°F
Min. Bend Radius
8 x OD
Wire Size - Wire and Cable
16 AWG
Shielded / Unshielded
Shielded

Product Description

Continuous flexing tray cable is electrical wire that connects a main power source to a machine or piece of equipment in automated systems. It is used in cable carriers, or trays, to support and guide cable through motion. This power cable has a tough jacket that is resistant to abrasion, oil, and flames. It is commonly used in power distribution, control, and instrumentation applications in manufacturing and industrial environments.

Continuous flexing automation cable is electrical cable that can withstand repetitive motion and constant bending without damage. It is commonly used in automated systems with constant movement, such as robotics or conveyors, to connect power from a main source to a machine or machine component. It has one or more insulated conductors and a flexible jacket that is oil-, flame-, and coolant-resistant. It is often used in conjunction with cable carriers, or trays, to support and guide cable through motion. Automation cable is suitable for construction, manufacturing, robotics, and power distribution applications.

Item Barcode
9277613
Continuous Flexing Tray Cable,
  Name Item Description
Grainger Dropship Grainger Dropship 2WGU1 Continuous Flexing Tray
UNSPSC CODES UNSPSC CODES 26121629
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Continuous Flexing Tray
